The unique second coating and twisting technology provide sufficient space and bending resistance for the optical fiber, thus ensuring that the optical fiber in the cable has good optical performance.
Good mechanical and temperature properties
High-quality raw materials guarantee a long service life of the cable

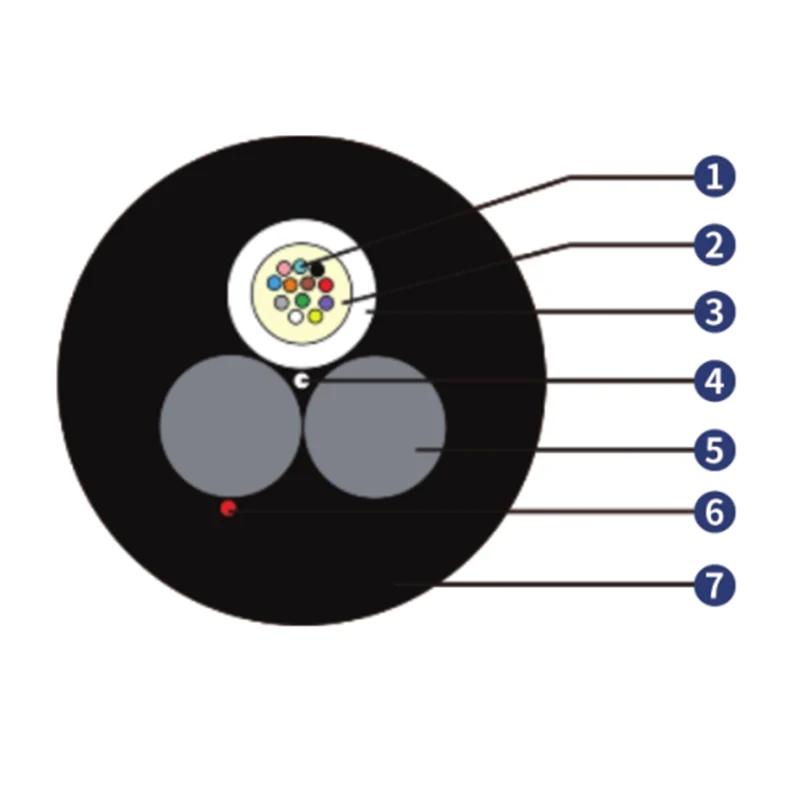

1. Optical Fiber
2. Tube Filling Compound
3. Loose Tube
4. Water Blocking Yarn
5. Strength Member
6. Ripcord
7. Outer Sheath
|
Fiber Core |
1-12 |
24 |
|||
|
Span |
80 Meters |
120 Meters |
80 Meters |
120 Meters |
|
|
Fiber Type |
G.652D |
||||
|
Loose Tube |
Material |
PBT |
|||
|
Diameter |
2.0±0.06mm |
2.5±0.06mm |
3.0±0.1mm |
||
|
Thickness |
0.32±0.03mm |
0.35±0.03mm |
0.50±0.05mm |
||
|
Color |
White |
||||
|
Strength Member |
Material |
Fiber Reinforced Polymer (FRP) |
|||
|
Diameter |
2.0±0.05mm |
2.5±0.05mm |
2.0±0.05mm |
2.5±0.05mm |
|
|
Outer Sheath |
Material |
PE |
|||
|
Thickness |
1.0±0.1mm |
||||
|
Rip Cord |
Material |
Nylon |
|||
|
Color |
Red |
||||
|
Number |
1 |
||||
|
Cable Diameter |
6.6±0.2mm |
7.6±0.2mm |
7.5±0.2mm |
8.2±0.2mm |
|
|
Cable Weight |
45±5.0kg/km |
62±5.0kg/km |
52±5.0kg/km |
65±5.0kg/km |
|
|
Allowable Tensile Strength |
1500N |
2000N |
1500N |
2000N |
|
|
Allowable Crush Resistance |
2200N/100mm |
||||
|
Min. Bending Radius |
Without Tension |
10.0*Cable Diameter |
|||
|
Maximum Tension |
20.0*Cable Diameter |
||||
|
Temperature Range |
Installation |
-20~+60℃（-4~140℉） |
|||
|
Transport/storage |
-40~+70℃（-4~158℉） |
||||
|
Operation |
-40~+70℃（-4~158℉） |
||||
