MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f)

MPO multi-fiber push-on fiber optic cable (MPO≥24f) uses 12 core units (Φ250μm colored optical fiber, aramid reinforcement elements), non-metallic central reinforcement core, the optical cable sub-units are twisted in the central reinforcement core to form a cable core, and a layer of polyvinyl chloride (PVC) or low smoke zero halogen material (LSZH, low smoke, halogen-free, flame retardant) sheath is extruded on the outside.

Send Inquiry

Product Description

Characteristics

Using colored optical fiber, high integration

Aramid yam as strength member making cable have excellent tensile strength performance

The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Applications

Any purpose cable distribution

Data center cable

Standards

Meet the standards of YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21; PVC products are certified by UL, OFNR and OFNP; LSZH products use different materials to meet IEC60332-1 or IEC60332-3C.

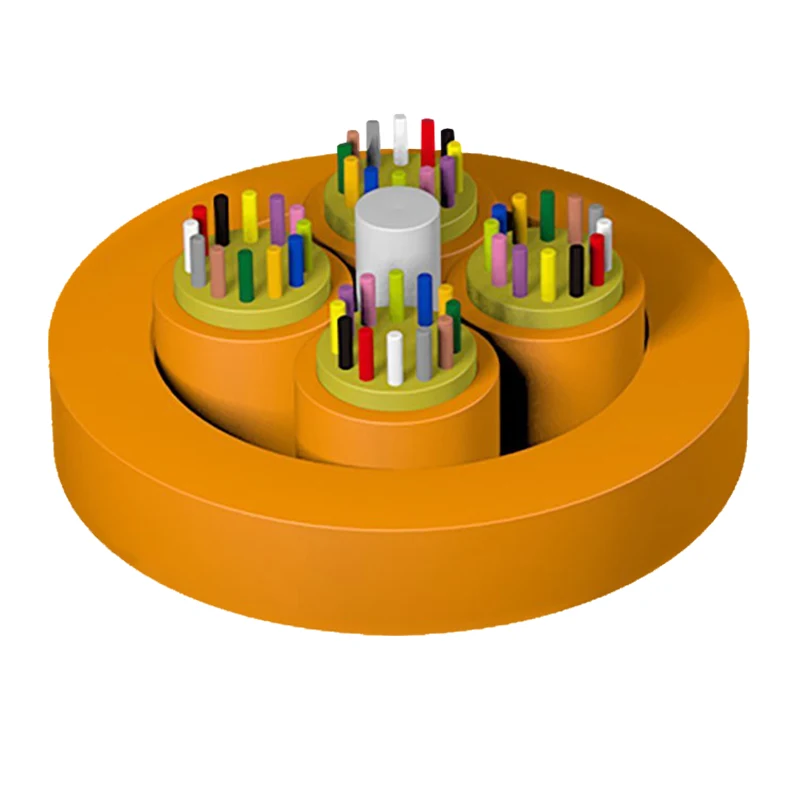

Structure Drawing

1. Central Strength Member

2. 250μm Fibre

3. Aamid Yam

4. Sub-unit

5. Jacket

MPO Multi-fiber Push-on Fiber Optic Cable (MPO≥24f)

Technical Parameters

Cable Model	Cable Diameter (Ref) (mm)	Cable Weight (Ref) (kg/km)		Tensile Strength Long/Short Term (N)	Bending Radius Dynamic/Static (mm)
Cable Model	Cable Diameter (Ref) (mm)	PVC Jacket	LSZH Jacket	Tensile Strength Long/Short Term (N)	Bending Radius Dynamic/Static (mm)
24	9.6±0.3	64	72	150/500	20D/10D
36	9.6±0.3	64	72	150/500	20D/10D
48	9.6±0.3	64	72	150/500	20D/10D
72	11.3±0.3	92	103	150/500	20D/10D
96	13.3±0.3	129	146	150/500	20D/10D
144	15.5±0.3	160	250	150/500	20D/10D
168	15.5±0.3	150	250	150/500	20D/10D

Optical Characteristics

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical Value	Maximum Value	Typical Value	Maximum Value	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
