Using colored optical fiber, high integration
Aramid yam as strength member making cable have excellent tensile strength performance
The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.
Indoor any purpose cable distribution
Data center cable
Meet the standards of YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21; PVC products are certified by UL, OFNR and OFNP; LSZH products use different materials to meet IEC60332-1 or IEC60332-3C.

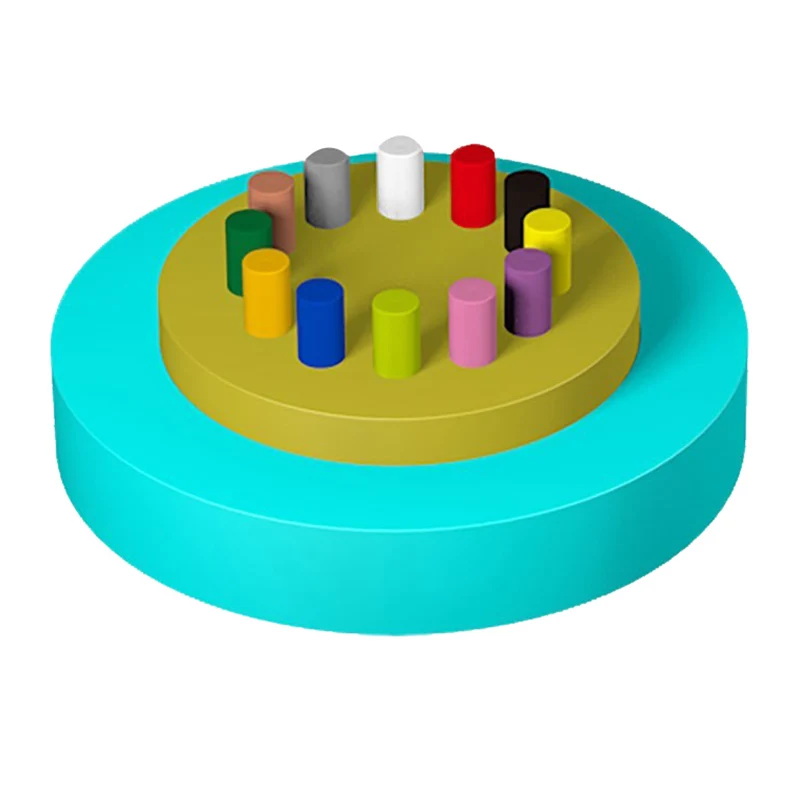

1. Fibre
2. Aramid Yam
3. Jacket
|
Cable Model |
Cable Diameter (Ref) (mm) |
Cable Weight (Ref) (kg/km) |
Tensile Strength Long/Short Term (N) |
Bending Radius Dynamic/Static (mm) |
|
|
PVC Jacket |
LSZH Jacket |
||||
|
12 |
3.0±0.2 |
4.8 |
6.3 |
30/100 |
20D/10D |
|
24 |
3.6±0.2 |
6.5 |
8.0 |
50/150 |
20D/10D |
|
Fiber Type |
Attenuation |
OFL |
Effective Mode Bandwidth |
10 Gbit/s Ethernet Link Length |
Minimum Bend Radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical Value |
Maximum Value |
Typical Value |
Maximum Value |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
