Duplex Flat Fig 8 Zipcord Fiber Optic Cable

The duplex flat fig 8 zipcord fiber optic cable uses Φ900μm or Φ600um tight-buffered optical fiber as the optical transmission medium, covered with a layer of aramid as a force-reinforced unit, and extruded with an 8-shaped polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath.

Send Inquiry

Product Description

Our high quality Duplex Flat Fig 8 Zipcord Fiber Optic Cable are all made in China. Orientalfiber is a professional the Duplex Flat Fig 8 Zipcord Fiber Optic Cable manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Characteristics

Tight buffer fibre ease of stripping

Tight buffer fibre has excellent flame-retardant performance

Aramid reinforcement element gives the cable excellent tensile strength

The 8-shaped sheath is easy to peel off and use for branches

The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Applications

Duplex Optical fibre patchcord or pigtail

Indoor distribution

Interconnect between instruments, communication equipment

Standards

Meet the standards of YD/T 1258.2, ICEA-596, GR-409, IEC 60794-2-10/11, etc. In addition to ordinary PVC products, there are also products that have passed ULOFNR and OFNP certifications. LSZH products use different materials to meet IEC60332-1 or IEC60332-3C or OFNR certifications n.

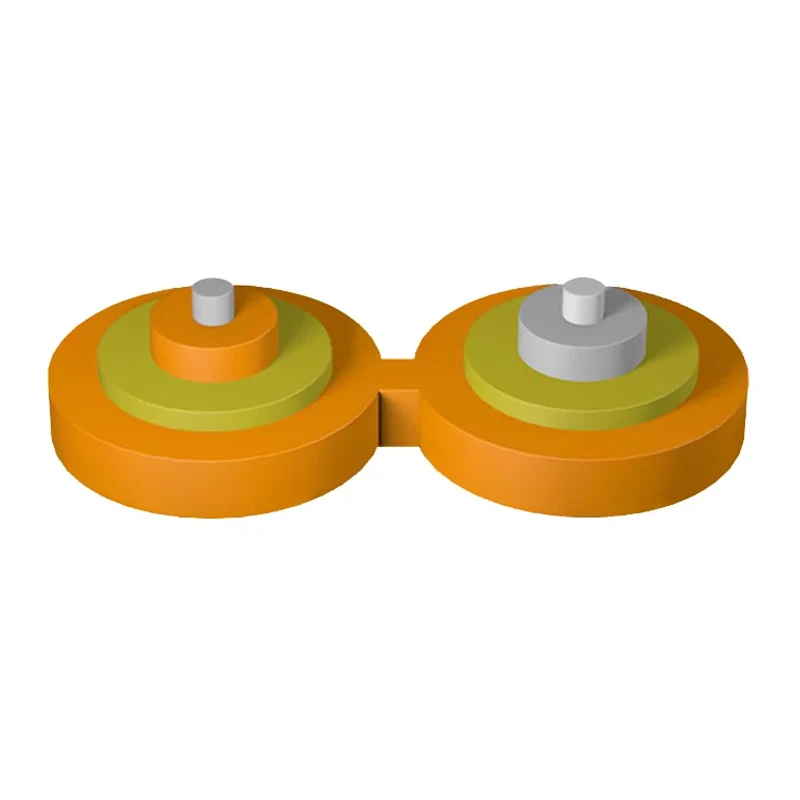

Structure Drawing

1.Tight Buffer Fibre

2.Aramid Yarn Jacket

3.Jacket

Duplex Flat Fig 8 Zipcord Fiber Optic Cable

Technical Parameters

Cable Model	Cable Diameter (Ref) （mm）	Cable Weight (Ref) （kg/km）		TBF Diameter （µm）	Tensile Strength Long/Short Term （N）	Crush Resistance Long/Short Term （N/100mm）	Bending Radius Dynamic/Static (mm)
Cable Model	Cable Diameter (Ref) （mm）	PVC Jacket	LSZH Jacket	TBF Diameter （µm）	Tensile Strength Long/Short Term （N）	Crush Resistance Long/Short Term （N/100mm）	Bending Radius Dynamic/Static (mm)
1.6	(3.4±0.3)×(1.6±0.3)	4.8	5.3	600±50	40/80	100/500	60/30
1.9	(4.0±0.3)×(1.9±0.3)	8.0	8.7	900±50	100/200	100/500	60/30
2.8	(5.8±0.3)×(2.8±0.3)	11.6	14.8	900±50	100/200	100/500	60/30

Optical Characteristics

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical Value	Maximum Value	Typical Value	Maximum Value	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
