UAV Fiber Optic

The Fiber Optic Drone System integrates a fiber optic transmission module with a tactical UAV platform, purpose-built for defense, special operations, and high-risk missions. Featuring dual-channel redundancy, the system automatically switches to wired fiber mode under electronic interference, ensuring nearly unbreakable communication. Paired with versatile tactical drone lineup, it delivers robust, mission-critical performance even under extreme operational conditions.

Fiber Optic Transmission System

The fiber optic transmission system enables secure, real-time video feeds in high-interference environment, with transmission ranges from 3 to 30km-ideal for both close- and long-range operations. It consists of three main components: the fiber reel, air unit, and ground unit.

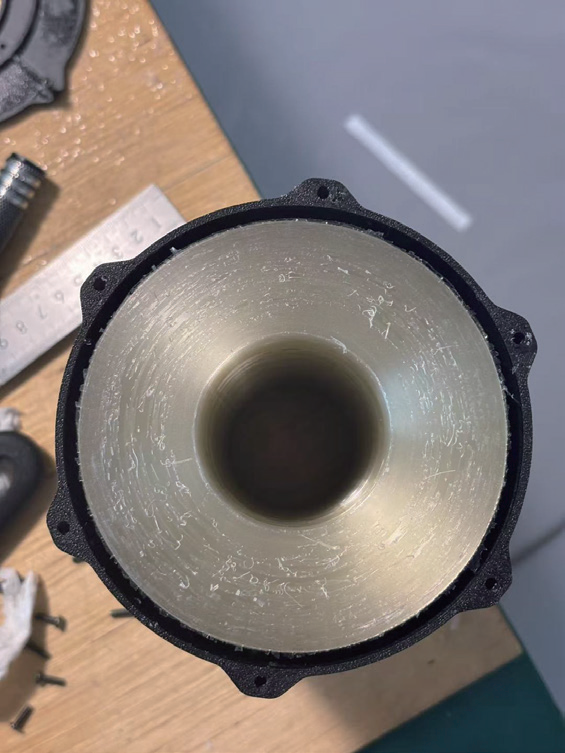

The fiber reel is light weight and compact, built with high-tensile, durable optical fiber for minimal signal loss and maximum resilience.

Fiber deployment system features advanced inner-reel feed technology, ensuring smooth, tangle-free transmission directly from the spool core. This design minimizes mechanical stress and prevents snags during flight, delivering superior safety and stability for aerial operations-even in complex terrains.

The ground unit supports plug-and-play use and can be directly connected to standard PC controllers for fast deployment.

APPLICATION SCENARIOS

CONFIGURATION

Fiber optic roll 20km

Fiber diameter: 0.28m

Product name: fiber optic discharge box

Sheath material: resinous

Fiber optic cable outer diameter: 0.28mm±0.01

Length: 20km

Optical type: G657A2

Working Temperature: -40~85℃

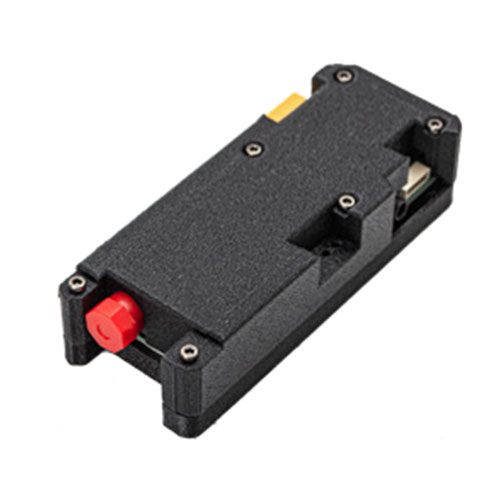

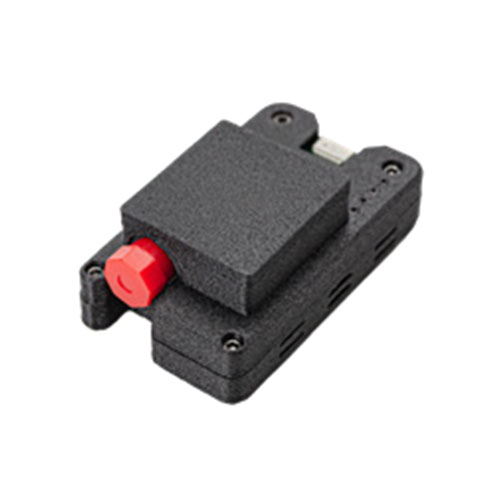

Air Unit

Power supply: 5.5V-26V

Body size: 63*37*23mm

Body weight: 31±2g

Bus signal: CRSF

Video: Analog

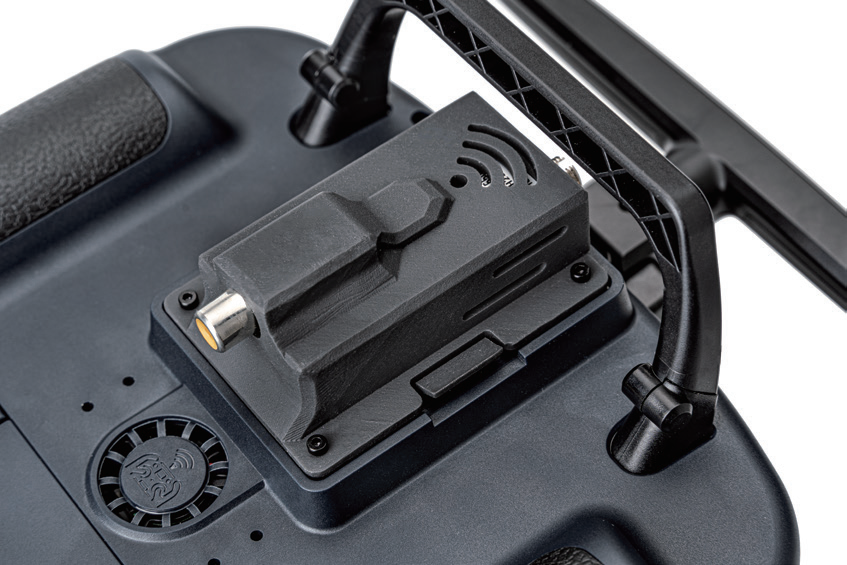

Ground Unit

Power supply: 5.5V-26V

Body size: 65*49*45mm

Body weight: 56.4g

Fiber optic interface: FC

Video output port: RCA_8.4

RC Protocol: CRSF
