Application: FTTx, Data Room Transformatio

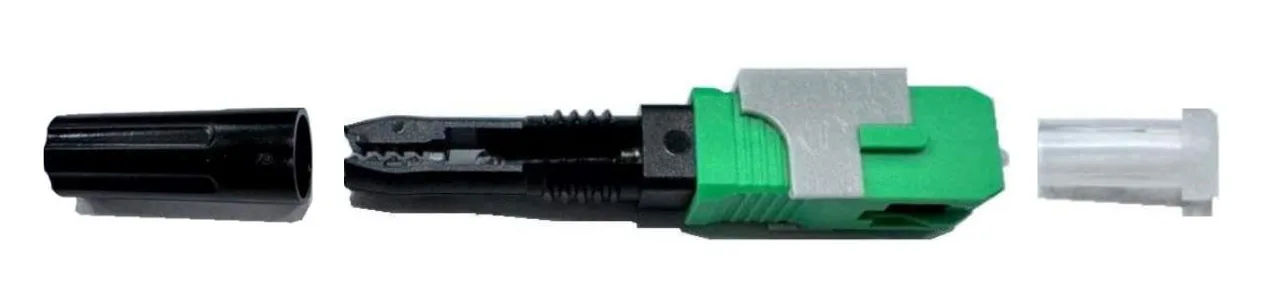

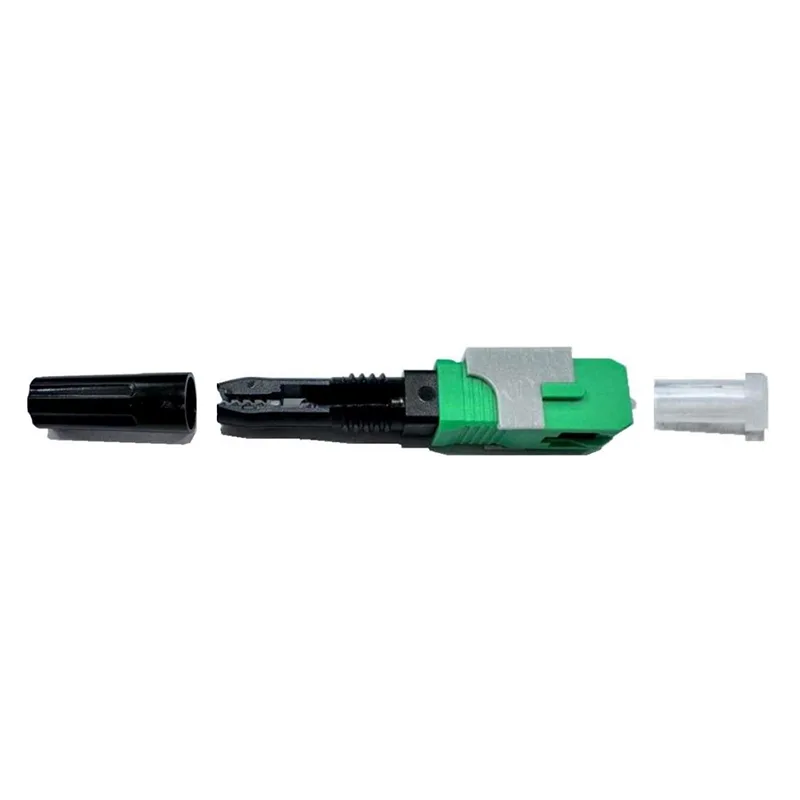

● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 30N, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
| DESCRIPTION | SPECIFICATION | TECHNICAL INFORMATION |
| OPTICAL | ||
| Insertion Loss (IL) | 1310nm & 1550nm | ≤ 0.5 dB |
|
Return Loss (RL) APC |
1310nm & 1550nm | ≥55dB |
| GENERAL | ||
| Coupling Type | SC | Green |
| Ferrule Elements | APC | 8.0±0.5° |
| Diameter | 2.5mm | |
| Material | Ceramic Zirconia | |
| Fiber | G.657A2 | |
| Mechanical Splicing | tensile strength | 4 N - 5 N |
| Inserted Fiber | 10 mm ±0.5 mm (125μ) | |
| Fiber loop | 18 mm ±0.5 mm (250μ) | |
| Gel Duration | 20 Years | |
| CABLE | Cable Retention | Chamber/Screw 30N /2Min |
| Flat Mini figure 8 | (5.3±0.2) * (2.0*3.0±0.1) mm | |
| Dimensions | mm | L (50±2.5) x W (9 ±0.1) x H (8 ±0 .1) |
| OPERATIONAL | ||
| Reusability | 5 times | Easy Assembly - Disassembly |
| Assembly Steps | 2 | |
| Ruler/JIG | 1X10 CONNECTORS | |
| Marked with manufacturer's name logo 18*10mm | ||
| Cleaver coupling | 16.2mm x (XXX) | |
| MARKING | ||
| CONNECTOR | Manufacturer Name | |
| Customer Name | ||
| Manufacturing Lot # | ||
|
PACKAGING (Individual Bag) |
Manufacturer | |
| Manufacturing Lot # | ||
| Fiber Preparation Image 1x1 Scale | ||
| CONTAINER | ||
| PACKAGING | Carton | 100 connectors +10 jigs |
| Labeling |
Manufacturer, model, Quantity, Mfg. Lot |
|
| Quality Testing | Optical Testing Sheet I L & RL | |
| CERTIFICATIONS | ||
| MECHANICAL | Telcordia GR-326-CORE, 4.4.3.5 | Transmission with applied tension |
| ENVIRONMENTAL | Telcordia GR-326-CORE, 4.4.2.2, | Thermal Cycling aging |
| OPTICAL | IEC 61300-3-4 |
Attenuation method (A) Return Loss |
| IEC 61300-3-6 |
Return Loss method (1) OCWR |
|
| SERVICE LIFE | ||
| LIFE | 25 Years | |
| WARRANTY | Effective for manufacturing defects of all its elements | |
| RMA | Less than 120 natural days | |
