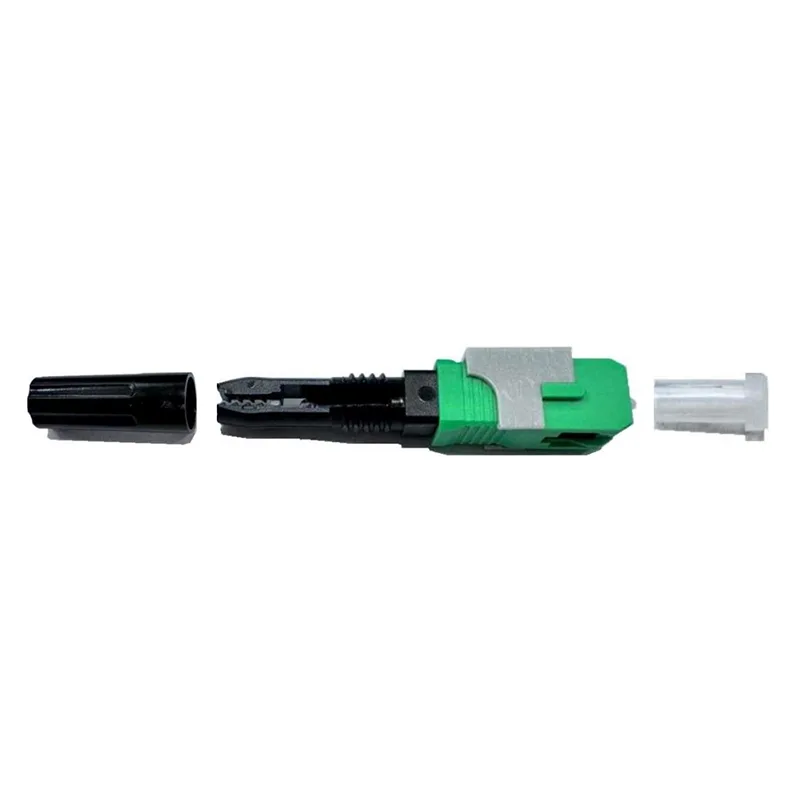

FAC-SC/APC-01 FAC-SC/UPC-01 Field Assembly Connector

Orientalfiber is a manufacturer and supplier specializing in FAC-SC/APC-01 FAC-SC/UPC-01 Field Assembly Connector, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality FAC-SC/APC-01 FAC-SC/UPC-01 Field Assembly Connector are all made in China. Orientalfiber is a professional the FAC-SC/APC-01 FAC-SC/UPC-01 Field Assembly Connector manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

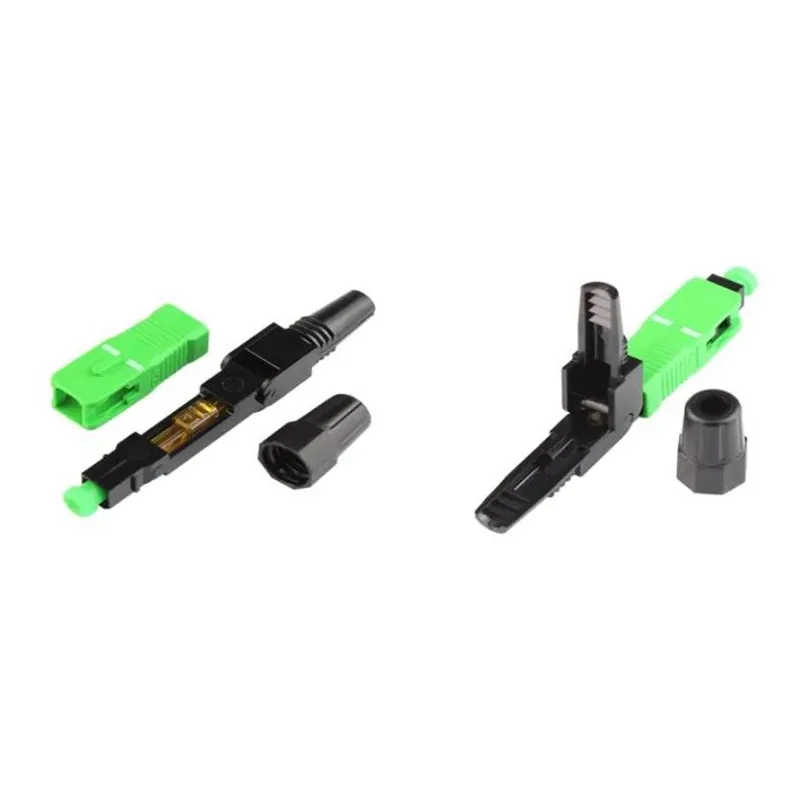

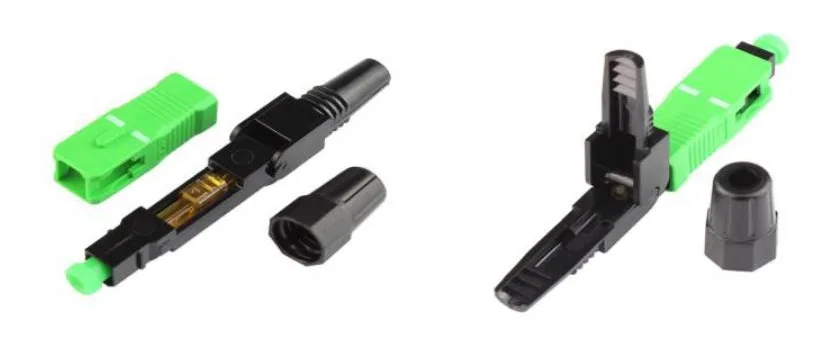

FAC-SC/APC-01

Field Assembly Connector-Fiber Pre-embeded Tech

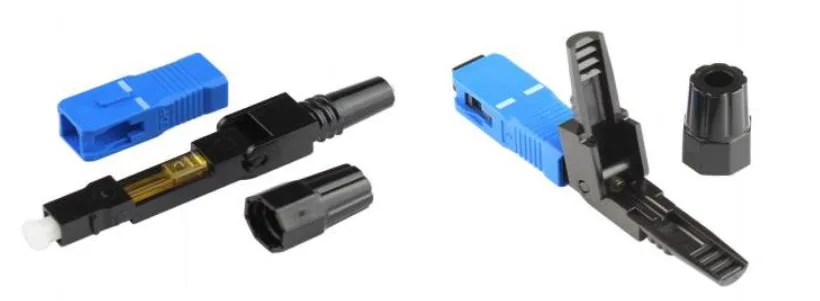

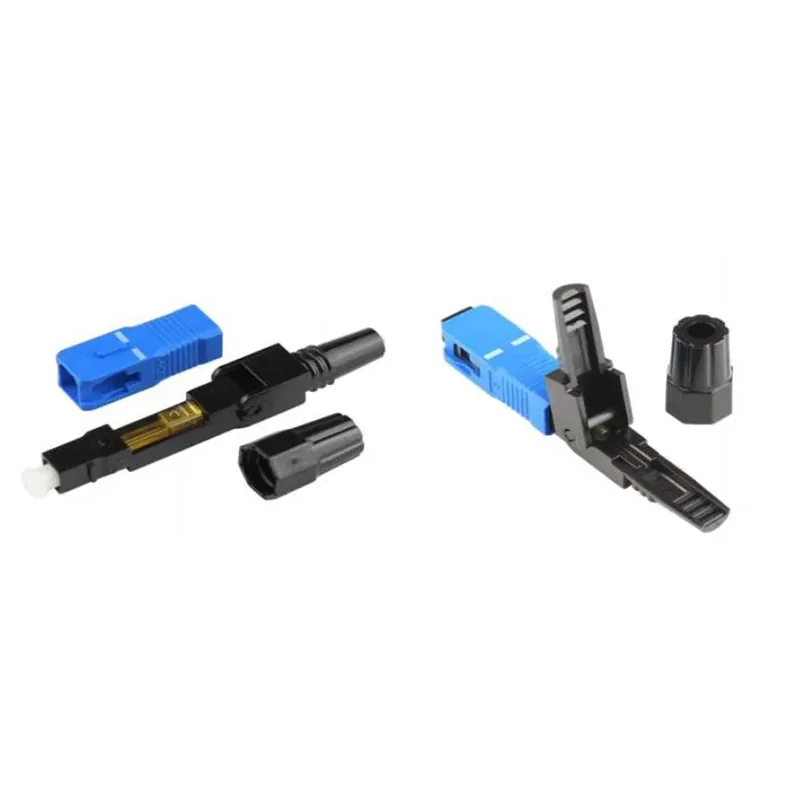

FAC-SC/UPC-01

Field Assembly Connector-Fiber Pre-embeded Tech

Application FTTx,Data Room Transformation

Technical specification:

Item	Parameter
Cable Scope	3.0 x 2.0 mm
Size:	598.78.3mm & 558.78.3mm
Fiber Diameter	125μm ( G652 D & G657 A1 A2 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting)
Insertion Loss（1310nm & 1550nm)	≤ 0.5dB Max / Typically ≤0.3dB
Return Loss	≥50dB for UPC, ≥55dB for APC
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL range≤0.3dB RL range≤5dB
Mechanical Durability（500 times)	IL range≤0.3dB RL range≤5dB
Drop Test （ 4m concrete floor, once each direction, three times total)	IL range≤0.3dB RL range≤5dB

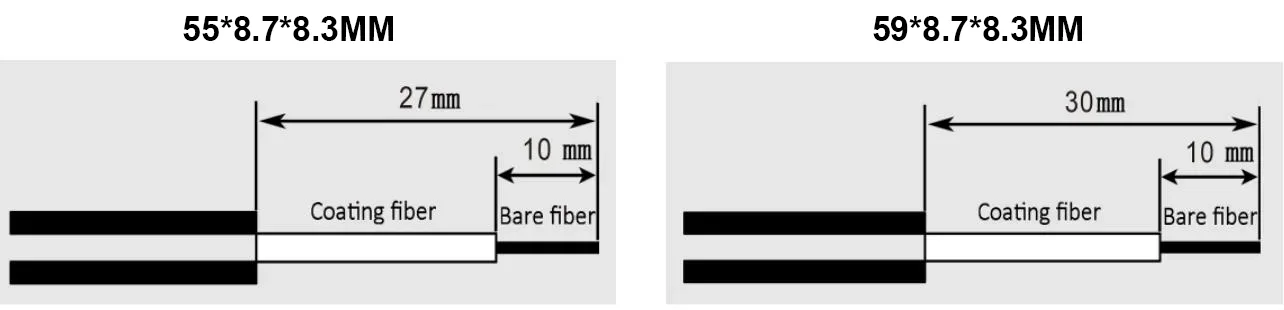

Fiber Cutting Length (Picture shown is for reference):

Field Assembly Connector-Fiber Pre-embeded Tech

Relevant Solutions:

● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
