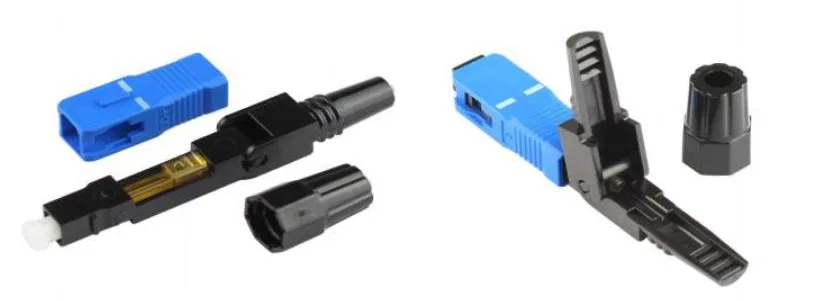

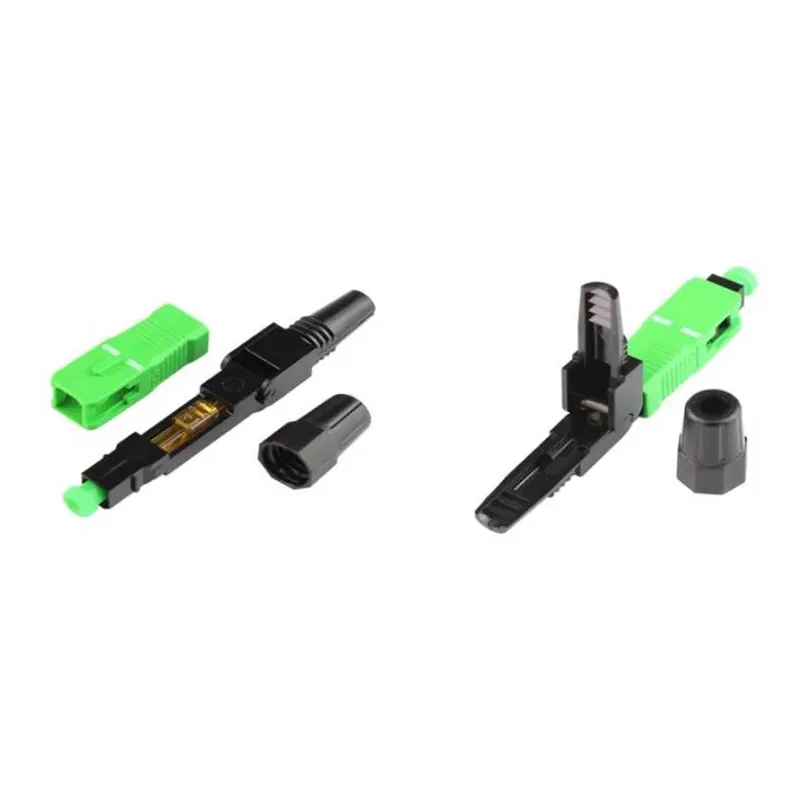

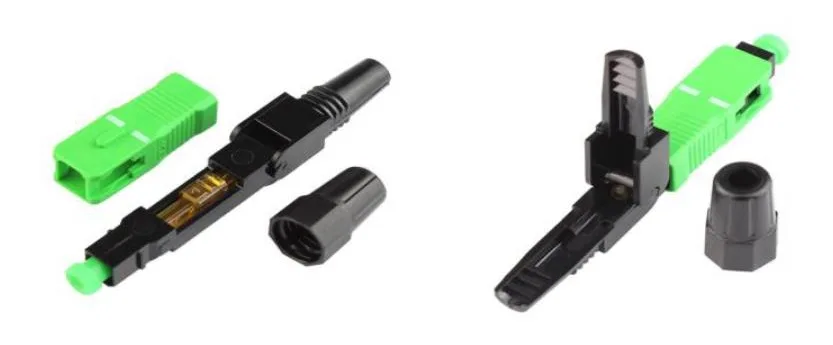

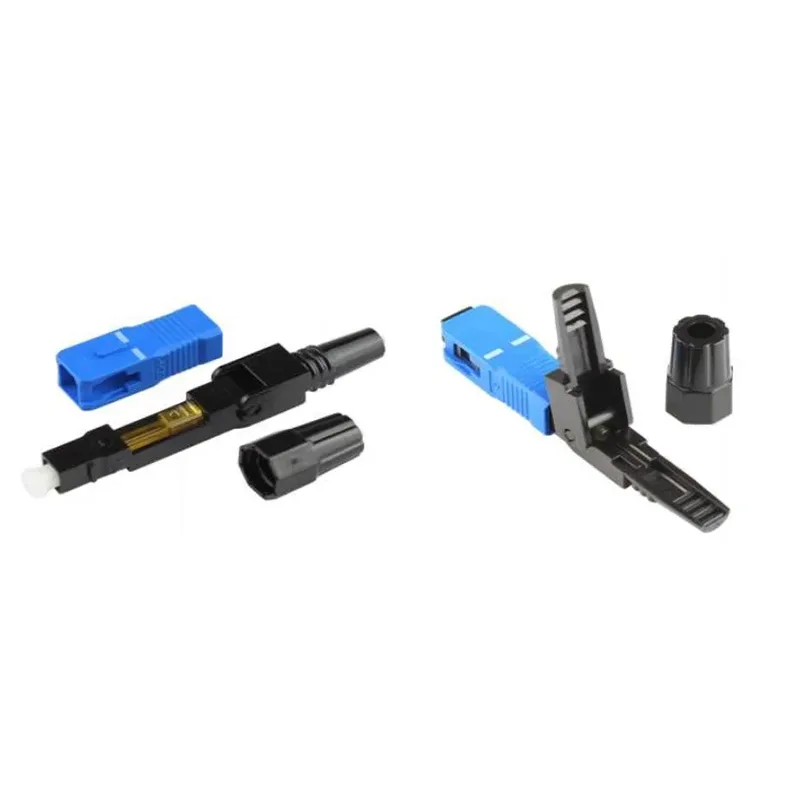

FAC-SC/APC-03 FAC-SC/UPC-03 Field Assembly Connector

Our high quality FAC-SC/APC-03 FAC-SC/UPC-03 Field Assembly Connector are all made in China. Orientalfiber is a professional the FAC-SC/APC-03 FAC-SC/UPC-03 Field Assembly Connector manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Orientalfiber FAC-SC/APC-03 and FAC-SC/UPC-03 field assembly connectors are designed to eliminate the common challenges of traditional fiber installation, including time-consuming procedures, complexity, and high error rates. With these connectors, technicians can complete a single fiber termination in about 15 seconds without requiring fusion splicing or expensive specialized tools, significantly improving the deployment efficiency for FTTH projects, data room upgrades, and enterprise network installations.

Who Needs It

This connector is ideal for: - Telecom contractors who need to install large volumes of fiber quickly on-site. - Data center operators requiring high-precision, low-loss connections. - Enterprise network administrators looking to simplify data room upgrades or LAN expansions. - FTTH installation teams needing fast and reliable fiber deployment for residential or commercial networks.

Why It’s Better

Orientalfiber FAC connectors stand out for several reasons: - High optical performance: Insertion loss ≤0.5dB (typical ≤0.3dB), return loss ≥50dB (UPC) and ≥55dB (APC), ensuring stable signal transmission. - Mechanical and environmental durability: Withstands 500 mating cycles, 20N online tensile test, and operates in temperatures from -40°C to +85°C. - Reusable: Can be reinstalled more than 10 times while maintaining performance, reducing maintenance costs. - Fast installation: Approximately 15 seconds per fiber, intuitive operation without fusion splicing equipment. - Direct ONU and 86-standard socket compatibility: Reduces the need for adapters, lowering overall project cost.

How to Use

1. Prepare the fiber and ensure the pre-embedded tip is clean. 2. Insert the fiber into the FAC connector, secure, and gently tighten. 3. Connect directly to the ONU or patch panel for immediate high-speed, stable signal transmission. Before: Fiber installation is time-consuming, prone to errors, and requires multiple steps. After: Rapid on-site assembly, stable signal, and simplified installation save labor and project time.

Customer Feedback

Large FTTH projects in China reported a 40% increase in installation efficiency and 15% reduction in overall costs using Orientalfiber FAC connectors. - Data center network upgrades showed stable insertion and return loss, with reduced maintenance and rework. - Multiple international telecom operators continue to adopt these connectors for power, rail, highway, and industrial network front-end deployments.

Common Concerns

-Compatibility: Supports 125μm single-mode fibers, compatible with 652 and 657 standards, directly matching ONU and indoor cabling. - Quality Assurance: Certified with ISO9001 quality management and ISO45001 occupational health and safety systems. - Supply & Logistics: Orientalfiber has four factories and a complete supply chain to ensure timely delivery for bulk orders. - Reusability: Can be reinstalled over 10 times, reducing ongoing operational pressure.

Why Act Now

Choosing Orientalfiber FAC-SC/APC-03 or FAC-SC/UPC-03 connectors allows you to: - Immediately improve on-site fiber installation efficiency - Reduce project costs and rework risk - Ensure long-term network stability - Benefit from direct factory supply and global support As a professional fiber optic solution provider, Orientalfiber delivers reliable, high-performance field assembly connectors for telecom, FTTH, enterprise networks, and data centers, making complex fiber installations simple and efficient.

FAC-SC/APC-01

FAC-SC/UPC-01

Application FTTx, Data Room Transformation

Technical specification:

Item	Parameter
Cable Scope	3.0 x 2.0 mm
Size:	59*8.7*8.3mm & 55*8.7*8.3mm
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting)
Insertion Loss	≤ 0.5dB Max/Typically ≤0.3dB（1310nm & 1550nm)
Return Loss	≥50dB for UPC, ≥55dB for APC
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL range≤0.3dB RL range≤5dB
Mechanical Durability（500 times)	IL range≤0.3dB RL range≤5dB
Drop Test（4m concrete floor, once each direction, three times total)	IL range≤0.3dB RL range≤5dB

Relevant Solutions:

● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
