FAC-SC/APC-02 FAC-SC/UPC-02 Field Assembly Connector

In FTTx deployments and data center upgrades, traditional fusion splicing is often slowed by expensive equipment and tight installation spaces. The Orientalfiber FAC-SC/APC-02 FAC-SC/UPC-02 Field Assembly Connectors eliminate this “last mile” bottleneck. Designed for fast, reliable on-site fiber termination, these connectors allow a technician to complete a professional-grade connection in just 15 seconds using basic manual tools.

Send Inquiry

Product Description

Our high quality FAC-SC/APC-02 FAC-SC/UPC-02 Field Assembly Connector are all made in China. Orientalfiber is a professional the FAC-SC/APC-02 FAC-SC/UPC-02 Field Assembly Connector manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

In FTTx deployment and data center restructuring, traditional fusion splicing is often hindered by expensive equipment and cramped operating spaces. The Orientalfiber FAC-SC/APC-02 FAC-SC/UPC-02 Field Assembly Connectors are engineered to solve the "last mile" bottleneck. By eliminating the need for high-cost splicing machines, a technician can achieve a professional-grade connection in just 15 seconds using only basic manual tools. This significantly slashes labor costs and minimizes post-installation maintenance.

Precision Engineering: Who Benefits from Orientalfiber?

Our connectors are more than just hardware; they are productivity catalysts for:

FTTH/FTTx Contractors: Ideal for high-volume residential installations where a >98% success rate and speed are non-negotiable.
Data Center Operations: Perfect for on-site cable customization and emergency repairs without the logistical nightmare of moving heavy machinery.
Telecom & ISP Operators: Simplifies the connection between drop cables and ONUs, reducing the need for extra sockets and adapters to save project budgets.
Smart Home Integrators: Compact design (50mm/55mm) fits perfectly within standard 86-type wall sockets and tight junction boxes.

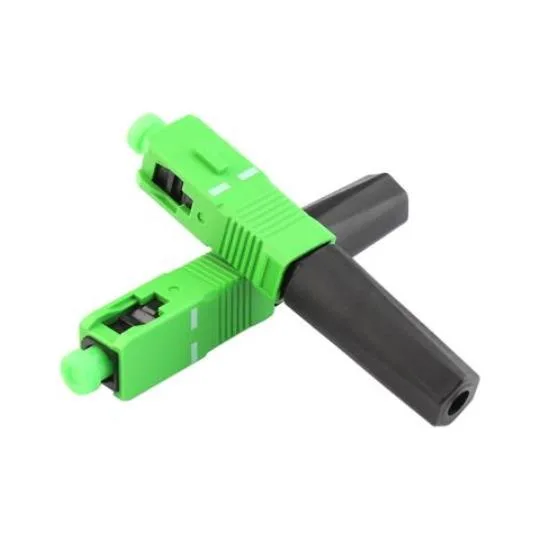

FAC-SC/APC-02

Field Assembly Connector-Fiber Pre-embeded Tech

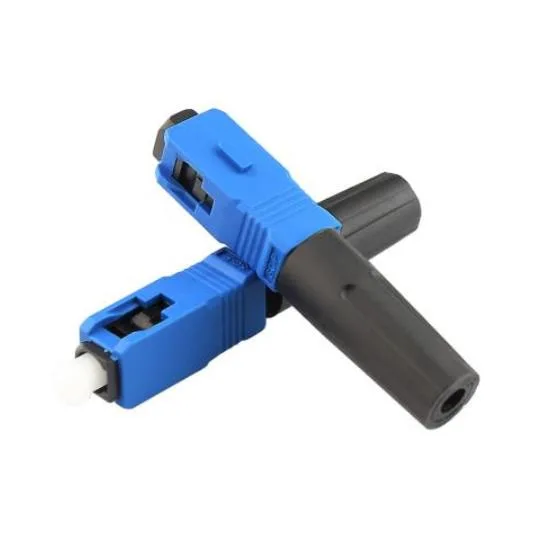

FAC-SC/UPC-02

Field Assembly Connector-Fiber Pre-embeded Tech

Application FTTx, Data Room Transformation

Technical specification:

Item	Parameter
Cable Scope	2.0 x 3.0、2.0 x 5.3&1.6 x 2.0mm drop cable (0.9 、2.0&3.0mm optical cable)
Size:	508.78.3 mm &558.78.3mm
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s（exclude fiber presetting)
Insertion Loss	≤ 0.5dB Max/Typically ≤0.3dB（1310nm & 1550nm)
Return Loss	≥50dB for UPC, ≥55dB for APC
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL range≤0.3dB RL range≤5dB
Mechanical Durability（500 times)	IL range≤0.3dB RL range≤5dB
Drop Test（4m concrete floor, once each direction, three times total)	IL range≤0.3dB RL range≤5dB

Relevant Solutions:

● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

The Competitive Edge: Industrial Grade Stability

While many fast connectors flood the market, Orientalfiber stands out through rigorous technical standards and superior materials:

Universal Compatibility: Unique internal clamping supports 2.0x3.0mm drop cables as well as 0.9mm, 2.0mm, and 3.0mm indoor optical cables.
Premium Ceramic Ferrules: We utilize high-precision Zirconia ferrules to ensure Typical Insertion Loss (IL) ≤ 0.3dB and Return Loss (RL) ≥ 55dB (APC), ensuring zero-glitch signal transmission.
Superior Tensile Strength: With a naked fiber grip >5N and a total tensile strength >50N, our connectors withstand the physical stresses of installation and long-term use.
Extreme Climate Resilience: Rated for -40°C to +85°C. Whether in arctic cold or humid tropical server rooms, the mechanical integrity remains uncompromised.

Three-Step Installation: Professional Results for Every Skill Level

We have distilled complex fiber optics into a foolproof process:

Preparation: Strip the cable coating and cleave the fiber according to the provided length guide.

Insertion: Slide the fiber into the body until a slight "micro-bend" is formed, ensuring perfect end-face contact.

Securing: Engage the locking latch and screw on the boot. Your high-performance link is live.

Efficiency Note: Compared to thermal splicing, Orientalfiber reduces per-node installation time by over 70% and requires zero electrode consumables.

Manufacturing Excellence: ISO-Certified Global Supply

As a core brand of Jiangsu Xuben Photoelectric Technology, Orientalfiber is backed by a 15,000 square meter state-of-the-art facility.

Integrated Solutions: With four specialized factories covering indoor/outdoor cables and ODN components, we ensure 100% physical matching between our connectors and cables.

Verified Quality: Our production lines follow ISO9001 and ISO45001 standards. Every batch undergoes 4-meter concrete floor drop tests and 500-cycle durability testing.

Global Proven Track Record: With an annual output of $20M, our products power critical infrastructure in rail transit, electrical power grids, and major telecom networks worldwide.
