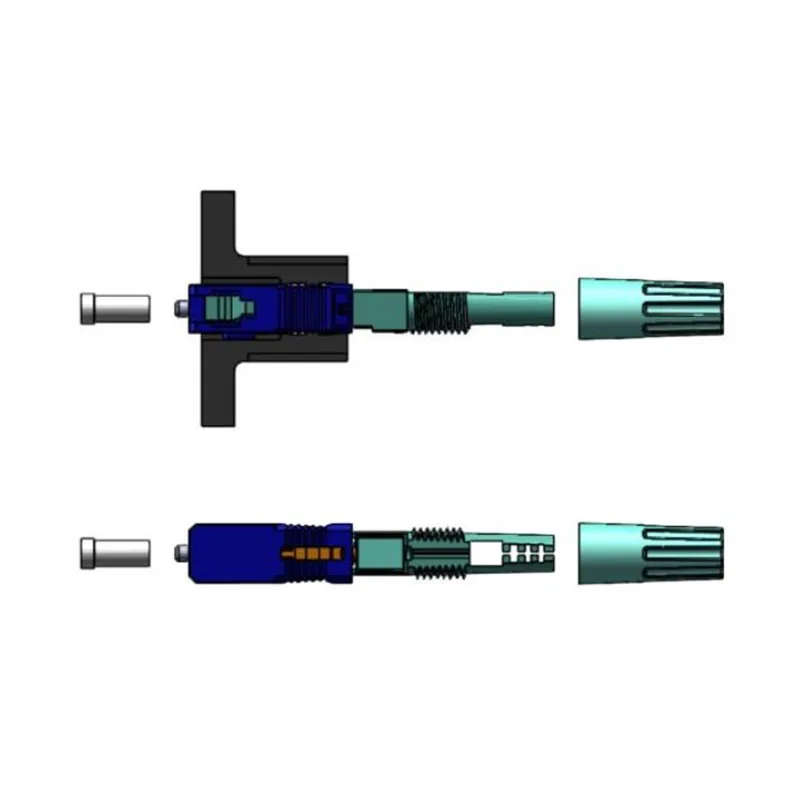

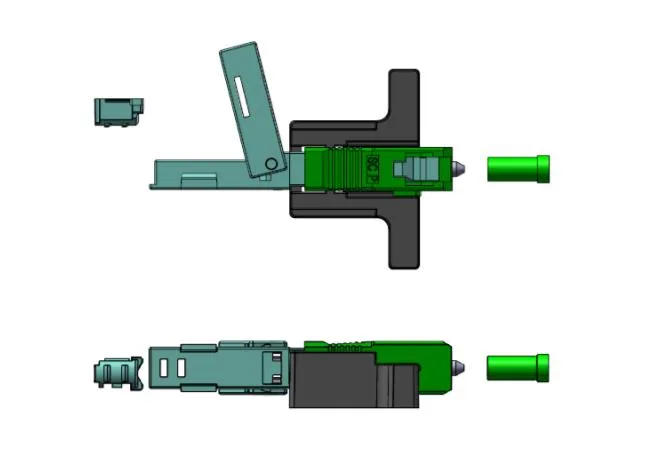

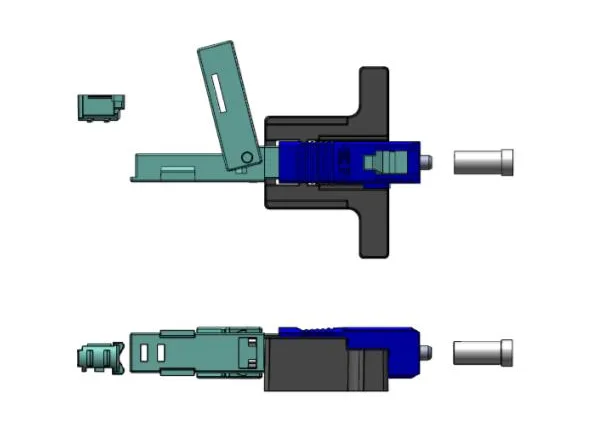

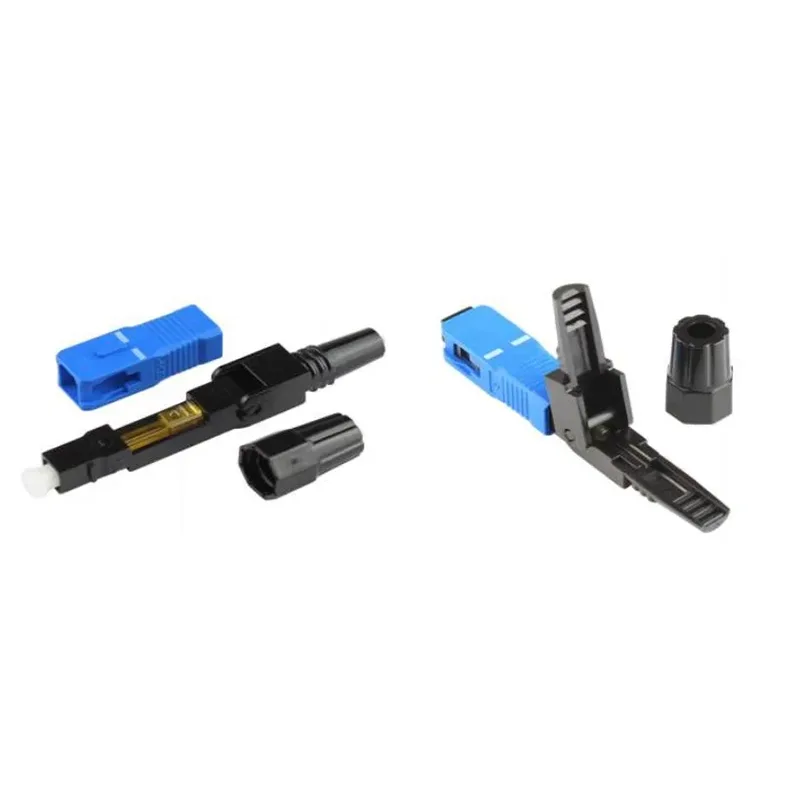

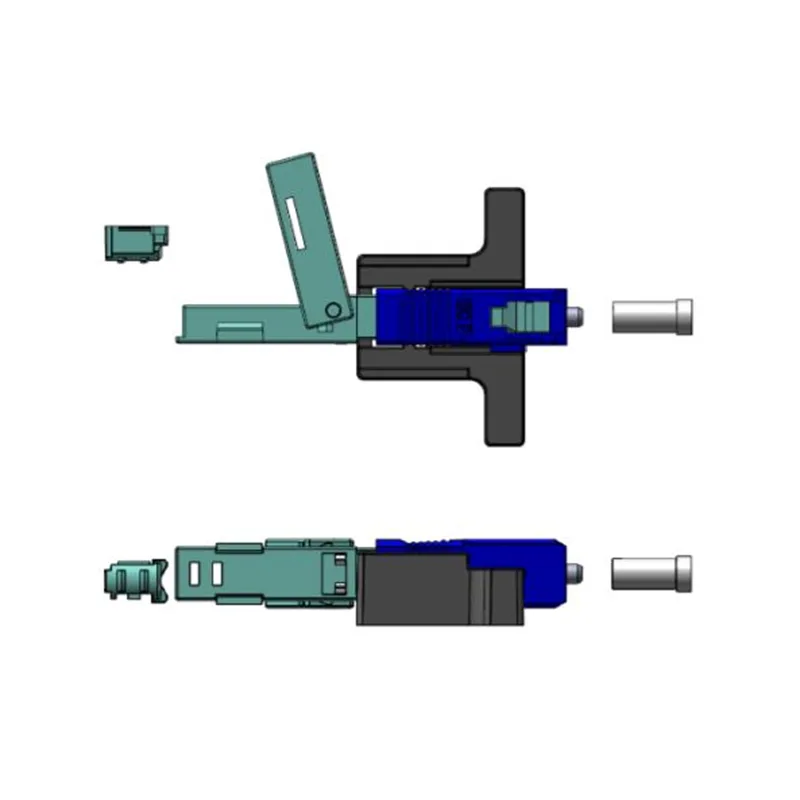

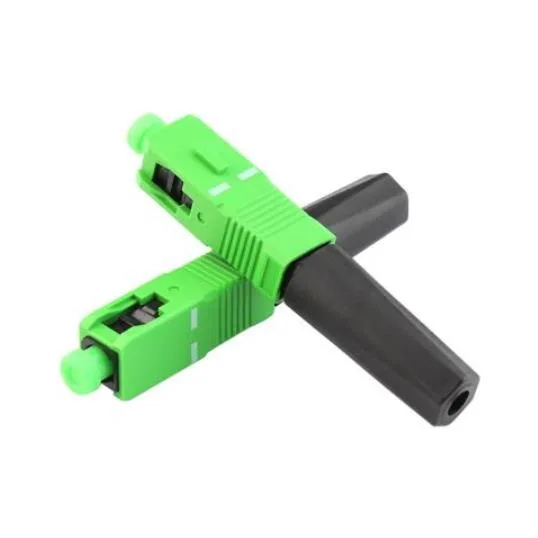

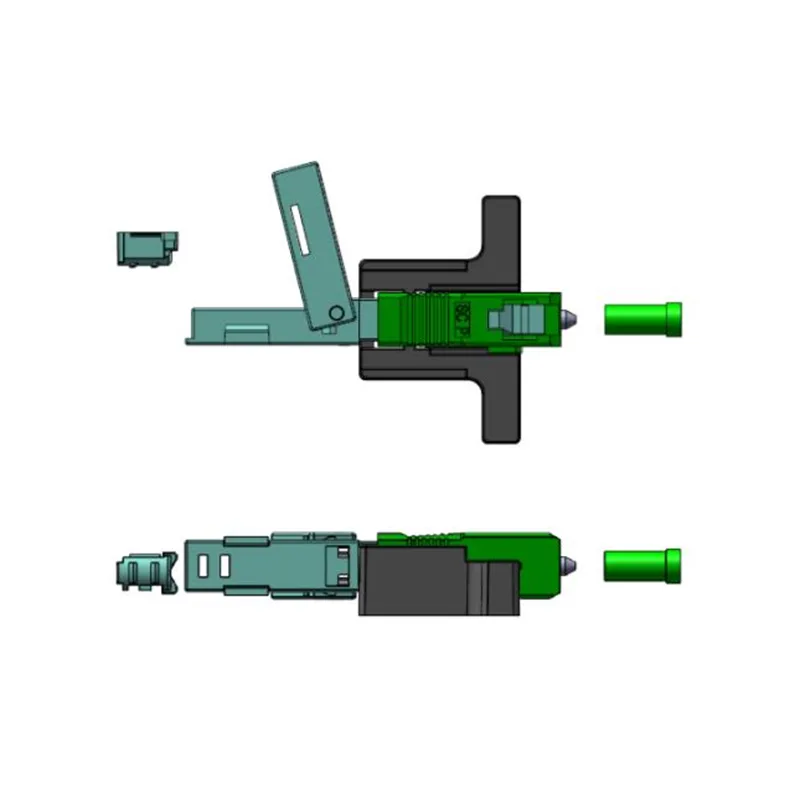

FAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly Connector
  • FAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly ConnectorFAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly Connector
  • FAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly ConnectorFAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly Connector

FAC-SC/APC-04 FAC-SC/UPC-04 Field Assembly Connector

FAC-SC/APC-04FAC-SC/UPC-04Application:FTTx, Data Room TransformatioRelevant Solutions:● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save c......

FAC-SC/APC-04


FAC-SC/UPC-04


Application:FTTx, Data Room Transformatio


Relevant Solutions:

● Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.

● With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.

● Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.


Technical specification:

Item Parameter
Cable Scope 3.0 x 2.0 mm drop cable
Fiber Diameter 125μm (G 652 & G 657)
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.5dB Max/Typically ≤0.3dB(1310nm & 1550nm)
Return Loss ≥50dB for UPC, ≥55dB forAPC
Success Rate >98%
Reusable Times >10 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >40 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL range≤0.3dB RL range≤5dB
Mechanical Durability (500 times) IL range≤0.3dB RL range≤5dB
Drop Test (4m concrete floor, once each direction, three times total) IL range≤0.3dB RL range≤5dB
V-groove Materials Ceramic
Size: 53.8*8.9*8.3 mm
