Good mechanical and temperature performance
The loose tube material itself has good hydrolysis resistance and high strength
Good compression resistance and softness
Glass yarn strength member ensure tensile strength
Small diameter, light weight and friendly installation
Comply with Standard YD/T 1770, ICEA-596, GR.409, IEC 60794, IEC 332-1or IEC 332-3C.

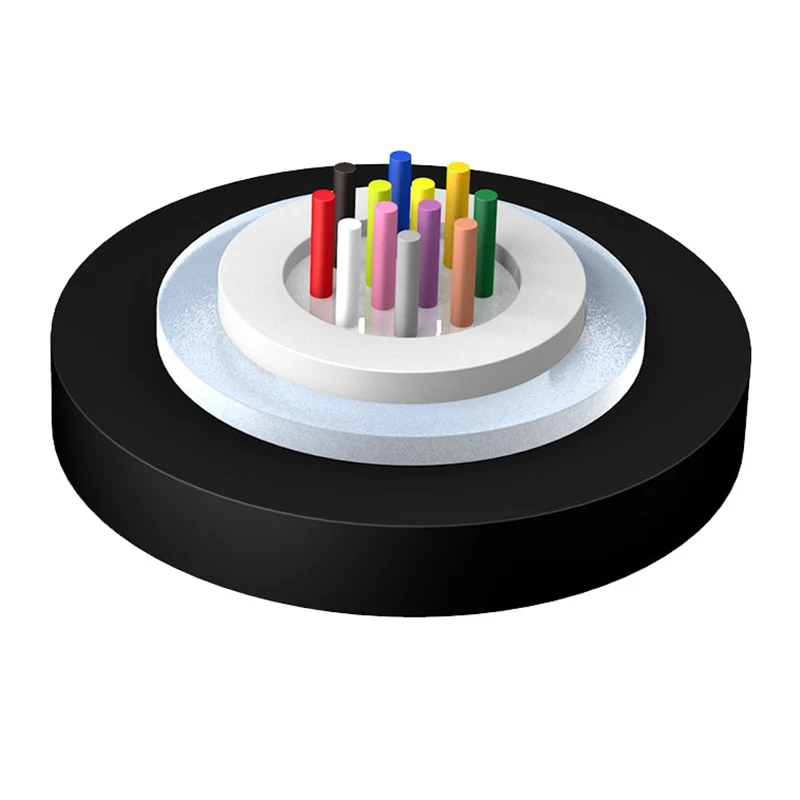

1.Fibre
2.Tube Filling Compound
3.Loose Tube
4.Glass Yarn
5.LSZH Jacket
|
Cable Model |
Fibre Count |
Cable Weight (Ref) (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Dynamic/Static (mm) |
|
ABC-I-ZK-2~12Xn |
2~12 |
55.5 |
200/660 |
300/1000 |
10D/20D |
|
ABC-I-ZK-14~24Xn |
14~24 |
67 |
200/660 |
300/1000 |
10D/20D |
|
Fiber Type |
Attenuation |
OFL |
Effective Mode Bandwidth |
10 Gbit/s Ethernet Link Length |
Minimum Bend Radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical Value |
Maximum Value |
Typical Value |
Maximum Value |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
