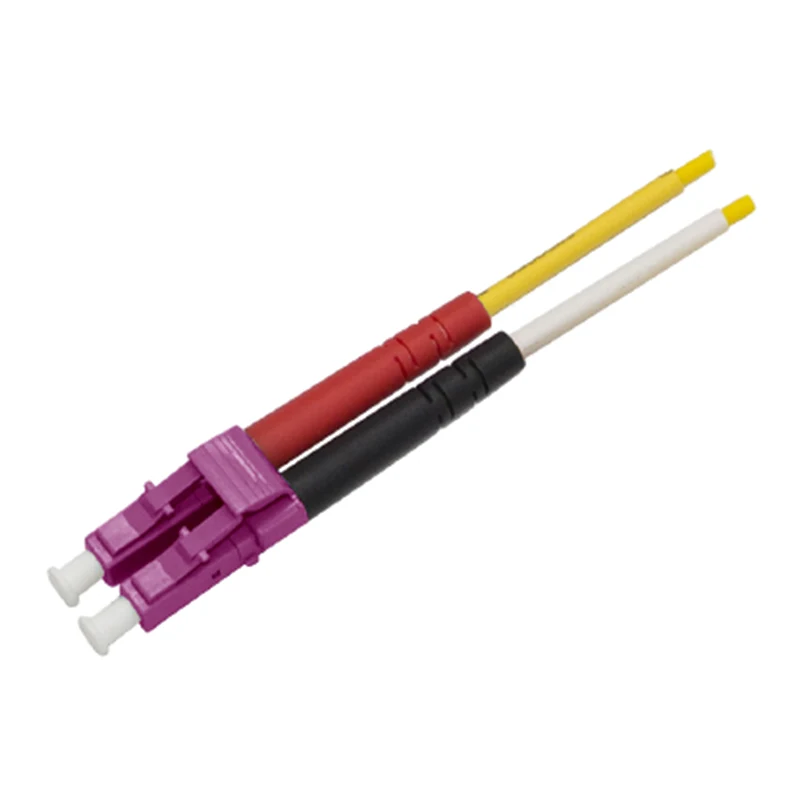

LC OM4 2.0mm DX Connector

Fiber Count: DuplexInsertion Loss: ≤0.25dBFiber Mode: Multi ModeReturn Loss: /Polish Type: PCDurability: >1000timesCable Diameter: 2.0mmOperating Temp:-40~85°CSpecificationParameterLC2.0mm ConnectorSMMMPCUPCAPCPCInsertionloss≤0.25dB≤0.25dB≤0.25dB≤0.25dBReturnloss≥50dB≥55dB≥60dB/operatingwave......

Send Inquiry

Product Description

Fiber Count: Duplex

Insertion Loss: ≤0.25dB

Fiber Mode: Multi Mode

Return Loss: /

Polish Type: PC

Durability: >1000times

Cable Diameter: 2.0mm

Operating Temp:-40~85°C

Specification

Parameter	LC 2.0mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

LC OM4 2.0mm DX Connector
