288F Optical Distribution Frame

An ODF is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.

Feature

1. The Standard size ODF patch panel is 19”, which can be installed in the distribution cabinet or as wall mount.

2. The structural parts are well-crafted, and the fiber distribution tray is made of flame retardant plastic material, which is light, flexible and durable.

3. The ODF box drawer-type structure can be withdrawn when the operation is completed. In the rear of the chassis with a cable entry hole and the rear fixing module to secured in coming fiber cables from back side.

4. The structure of fiber distribution trays is upper and lower layers. The pigtails and adapters is easily connected and operated.

5. Applicable to FC, SC, LC, ST four adapters.

6. Applicable to ribbon, bundle, non-strip fiber cables.

Standards Compliance

1. TIA/EIA-568-C.3

2. RoHS Compliant

3. ISO9001 Certificate

4. REACH Compliant

5. WEEE Certificate

6. Pass Anatel Tests

Specification

Environmental Characteristics

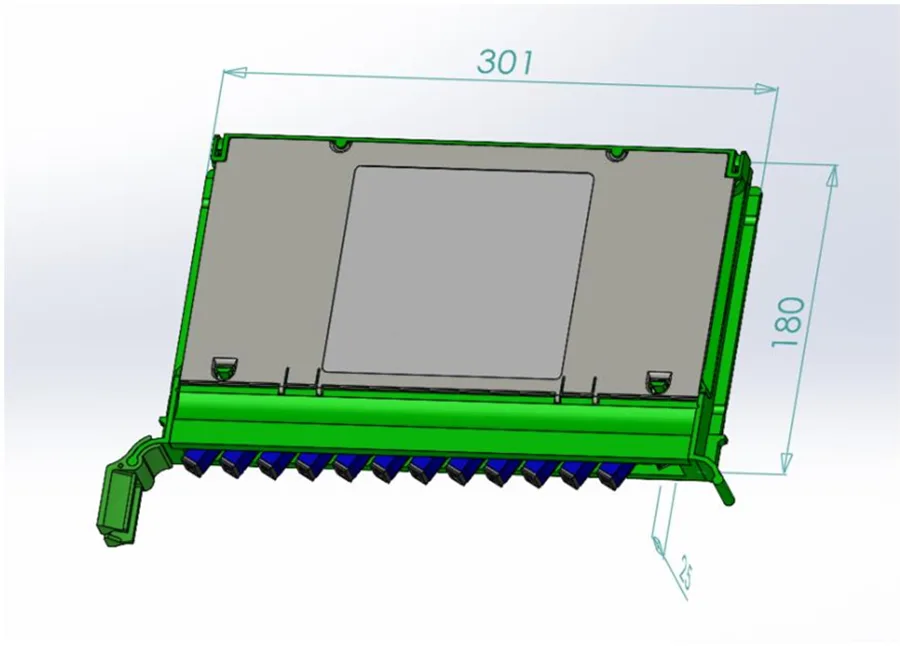

24F Fiber Splice Tray (Uint: mm)

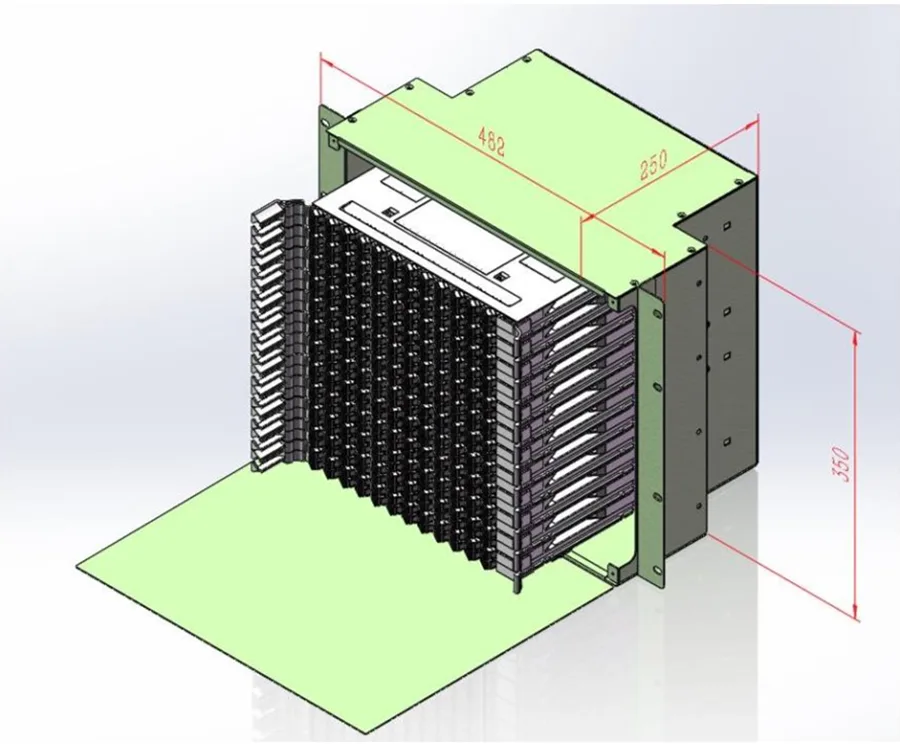

Mechanical dimension(Uint: mm)

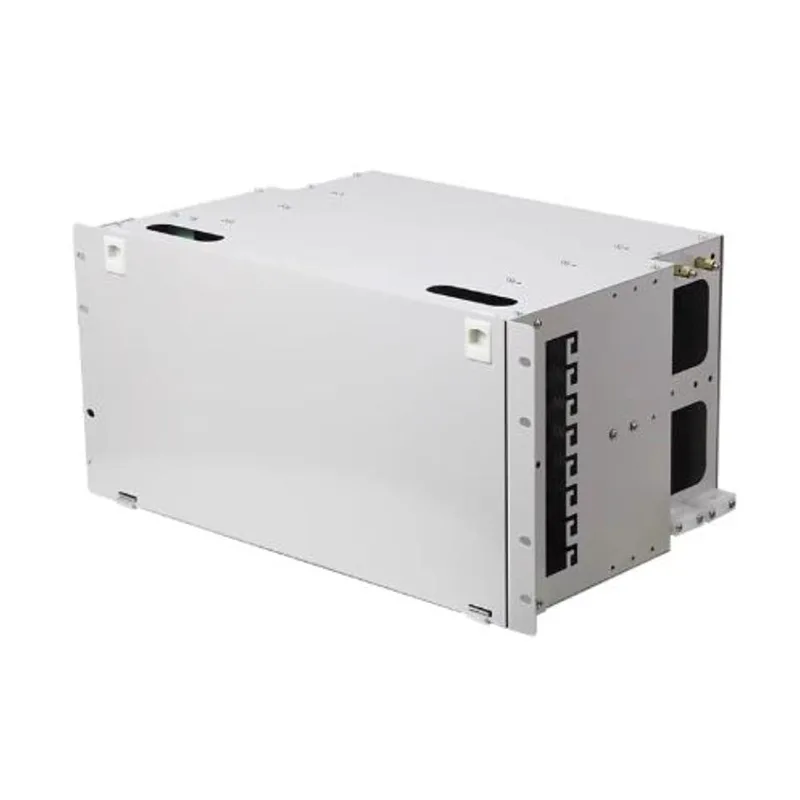

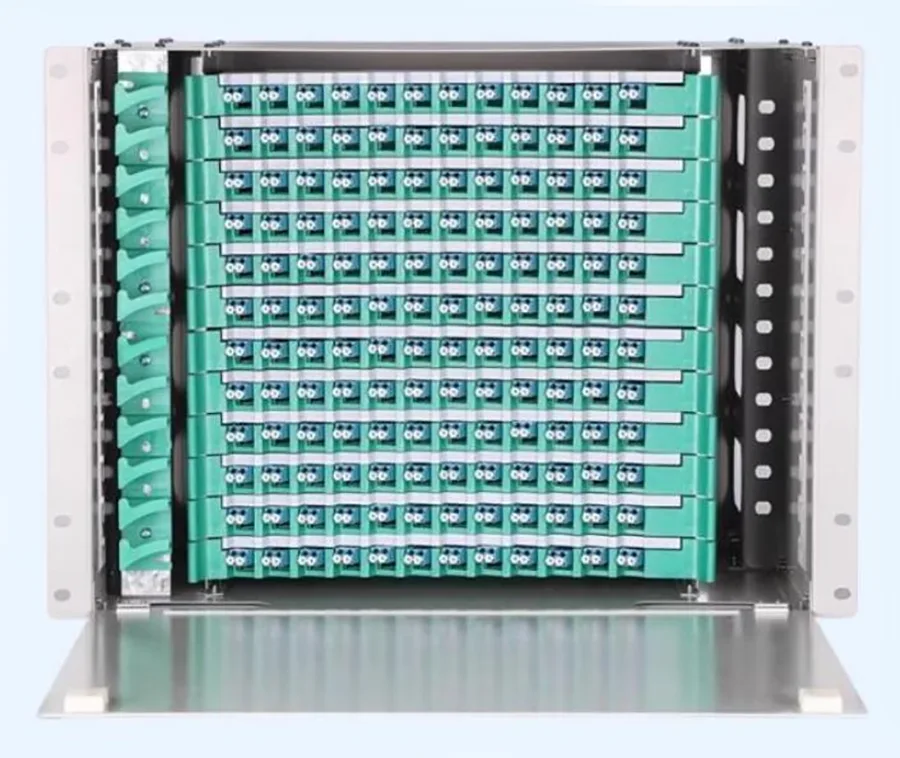

Product Reference Picture
