Invisible Bow-type Drop Fiber Optic Cable

The Invisible Bow-type Drop Fiber Optic Cable is a specialized optical transmission cable designed for short-distance access networks, especially suitable for scenarios requiring unobtrusive installation. The product is made by placing the invisible tight sleeve in the center, placing two parallel reinforcement elements on both sides, and finally extruding a layer of sheath. Its bow-type cross-section design not only optimizes the structural stability but also ensures the invisibility of the cable in indoor environments, avoiding impact on interior decoration. The Invisible Bow-type Drop Fiber Optic Cable is an important part of Orientalfiber’s product line, designed to meet the growing demand for aesthetic and practical optical transmission in FTTH and indoor cabling projects.

Product Core Value

The Invisible Bow-type Drop Fiber Optic Cable focuses on solving the pain points of traditional drop cables such as obtrusive installation, difficult stripping and poor compatibility with interior decoration. It integrates structural simplicity, light weight and invisibility, providing a balanced solution for signal transmission and environmental adaptation. As a key product of Orientalfiber, it has been continuously optimized based on market feedback and technical upgrades, ensuring that it can adapt to various complex indoor installation environments while maintaining stable transmission performance.

Key Features

Structural Features

Simple structure, light weight and high practicability, which is convenient for transportation and on-site installation, reducing labor intensity.

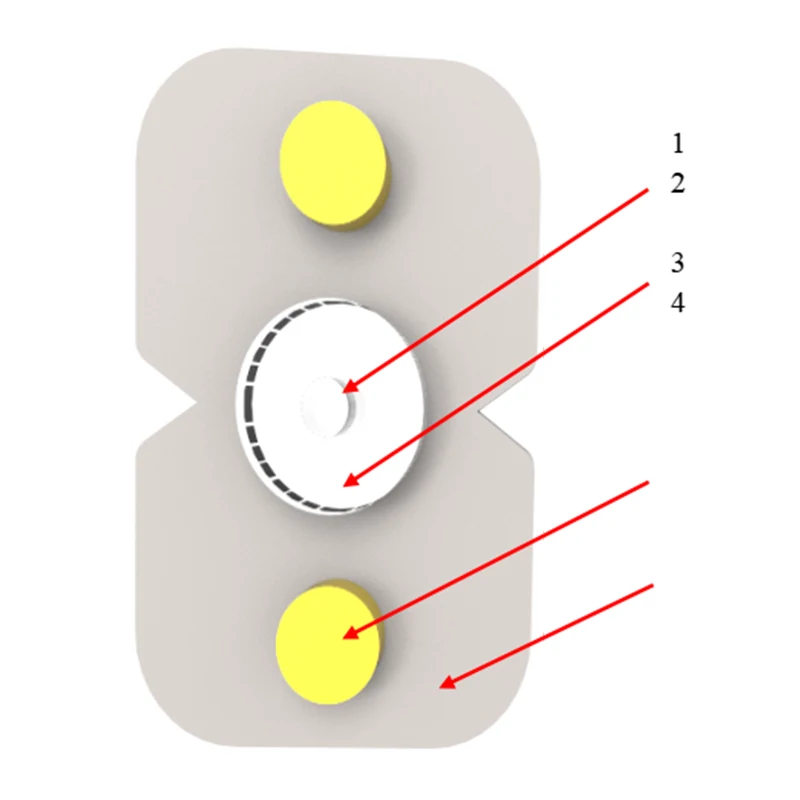

Bow-type cross-section design with two parallel reinforcement elements on both sides of the central invisible tight sleeve, enhancing the tensile and compressive performance of the product.

Flute design makes it easy for stripping and splicing, reducing the difficulty of on-site construction and improving installation efficiency without the need for complex tools.

Performance Features

Invisible and has no effect to interior decoration, the transparent or low-visibility sheath can blend with walls, ceilings and other surfaces, maintaining the integrity of the indoor environment.

Low transmission attenuation, adopting high-quality optical fiber core, ensuring stable signal transmission and meeting the requirements of high-speed data transmission.

Good environmental adaptability, resistant to high and low temperatures, moisture and corrosion, suitable for various indoor environments such as residences, offices and commercial buildings.

Installation Features

Easy to install, can be directly laid along walls, corners or through pipelines, without large-scale construction equipment.

Pre-terminated in the factory is available, which can save on-site termination time and ensure the consistency of connection quality.

The reinforcement elements improve the mechanical strength of the product, avoiding damage during installation and use.

Feature

Simple structure, light weight and high practicability

Flute design makes it easy for stripping and splicing

Invisible and has no effect to interior decoration

Application

Indoor cabling

FTTH (Fiber To The Home)

Pre-terminated in the factory

Structure & Material

Cable Property

Fiber Characteristic

Environmental Performance

All values above can be customized.

Technical Specifications

• Optical Specifications

The Invisible Bow-type Drop Fiber Optic Cable adopts single-mode or multi-mode optical fiber cores, complying with ITU-T G.652, G.657A2 and G.657B3 standards. The attenuation at 1310nm is ≤0.36dB/km, and the attenuation at 1550nm is ≤0.22dB/km, ensuring low-loss signal transmission. The numerical aperture is 0.200±0.015 (single-mode) and 0.275±0.015 (multi-mode), and the cable cut-off wavelength is ≤1260nm, which is compatible with mainstream optical transmission equipment in the market.

• Mechanical Specifications

The product has excellent mechanical performance, with long-term tensile strength of 100N and short-term tensile strength of 200N. The long-term lateral pressure resistance is ≥1000N/100mm, and the short-term lateral pressure resistance is ≥2200N/100mm, which can withstand the extrusion and dragging during installation and use. The static bending radius is 15D (D is the cable diameter), and the dynamic bending radius is 30D, which is convenient for bending and laying in narrow spaces. The nominal weight of the cable is 7.9-9.9kg/km, which is light and easy to handle.

• Environmental Specifications

The operating temperature range of the Invisible Bow-type Drop Fiber Optic Cable is -40℃ to +85℃, and the storage temperature range is -40℃ to +85℃, which can adapt to harsh indoor and outdoor transition environments. The sheath material adopts LSZH (Low Smoke Zero Halogen) material, which is non-toxic, flame-retardant and environmentally friendly, meeting the safety requirements of public places and residential areas. It also complies with RoHS, CE and other international environmental standards.

• Physical Specifications

The outer size of the cable is 2.0×3.0mm (±0.2mm), with a compact structure, which is convenient for laying in narrow pipelines and gaps. The sheath thickness is 0.5-0.8mm, ensuring the protection of the internal optical fiber and reinforcement elements. The reinforcement elements can be selected as metal or non-metal (FRP) according to customer needs, meeting different installation scenarios and safety requirements.

Applications

Main Application Fields

The Invisible Bow-type Drop Fiber Optic Cable is widely used in various short-distance optical transmission scenarios, focusing on indoor and FTTH fields. Its invisibility and easy installation make it the preferred product for many projects. The product is widely used in domestic and foreign telecommunications industry operators, radio and television in communication and information transmission systems, local area network data transmission systems and industrial front-end connections in electrical power, rail transit, highways and other industries.

Specific Application Scenarios

FTTH (Fiber To The Home)

As the core transmission medium of FTTH projects, the Invisible Bow-type Drop Fiber Optic Cable connects the community optical distribution box to the user's home, realizing high-speed broadband access. Its invisible design avoids damage to the home decoration, and the easy stripping and splicing feature reduces the difficulty of home installation. It is suitable for new residential areas, old community renovation and other FTTH projects, providing stable support for 4K/8K video, VR experience and smart home applications.

Indoor Cabling

In office buildings, commercial complexes, hospitals, schools and other indoor environments, the Invisible Bow-type Drop Fiber Optic Cable is used for horizontal cabling and equipment connection. It can be laid along walls, ceilings or through hidden pipelines, maintaining the tidiness and beauty of the indoor environment. The product is suitable for local area network data transmission, realizing high-speed interconnection between floors and equipment, and supporting video conferences, big data synchronization and other high-flow businesses.

Pre-terminated Factory Applications

The Invisible Bow-type Drop Fiber Optic Cable can be pre-terminated in the factory according to customer requirements, reducing on-site construction time and improving project progress. It is widely used in large-scale FTTH projects, data centers and other scenarios that require efficient installation, ensuring the consistency and reliability of connection quality.

Special Scenarios

In some scenarios with high requirements for environmental aesthetics, such as high-end residences, art galleries and luxury hotels, the Invisible Bow-type Drop Fiber Optic Cable can blend with the environment, avoiding the impact of traditional cables on the overall style. At the same time, its non-metal reinforcement version can be used in power substations, oil fields and other scenarios that are sensitive to electromagnetic interference, ensuring stable signal transmission.
