China Mobile Optical Cable Manufacturer, Supplier, Factory

Pre-terminated round fiber optic drop cables provide a robust and sealed connection solution for Fiber to the Home (FTTH) through a fast and precise connection system, reducing installation time, technical errors and maintenance. In addition, it guarantees high reliability and durability of the network.

The structure of ASU fiber optic cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube and FRP are SZ twisted together. Water-blocking yarn is added to the cable core to prevent water seepage, and then a polyethylene sheath is extruded to form a cable. A ripcord can be used to tear it open under the cable sheath.

The characteristics of waterproof pre-connectorized fiber optic cable distribution box are advanced structural design, easy operation and reasonable wiring. The material used is PP, which is moisture-proof, waterproof, dust-proof and anti-aging, and the protection level can reach IP68.

MPO multi-fiber push-on fiber optic cable (MPO≤24f) uses multiple colored optical fibers as optical transmission media, covered with a layer of aramid as a stress-reinforced unit, and extruded with a layer of polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath.

All dielectric self-supporting ADSS aerial fiber optic cable adopts loose tube layer stranding structure, and 250μm optical fiber is sheathed in loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) are twisted around the non-metallic center reinforcement core (FRP) to form a compact cable core, and the gap of the cable core is filled with water-blocking grease. The cable core is extruded with a polyethylene (PE) inner sheath, then covered with aramid for reinforcement, and finally extruded with a polyethylene (PE) outer sheath or an electric tracking (AT) outer sheath.

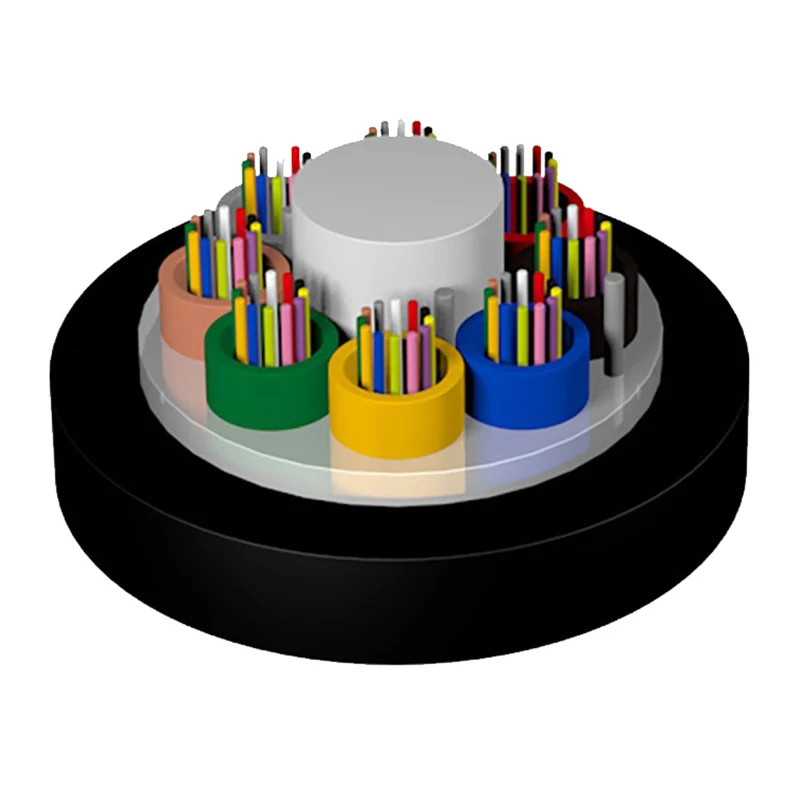

The structure of stranded loose tube non-metallic strength member non-armored fiber optic cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is an FRP, and the loose tube (and filling rope) are twisted around the FRP to form a compact and round cable core. The gaps in the cable core are filled with water-blocking fillers. A layer of polyethylene sheath is squeezed outside the cable core to form a cable.
