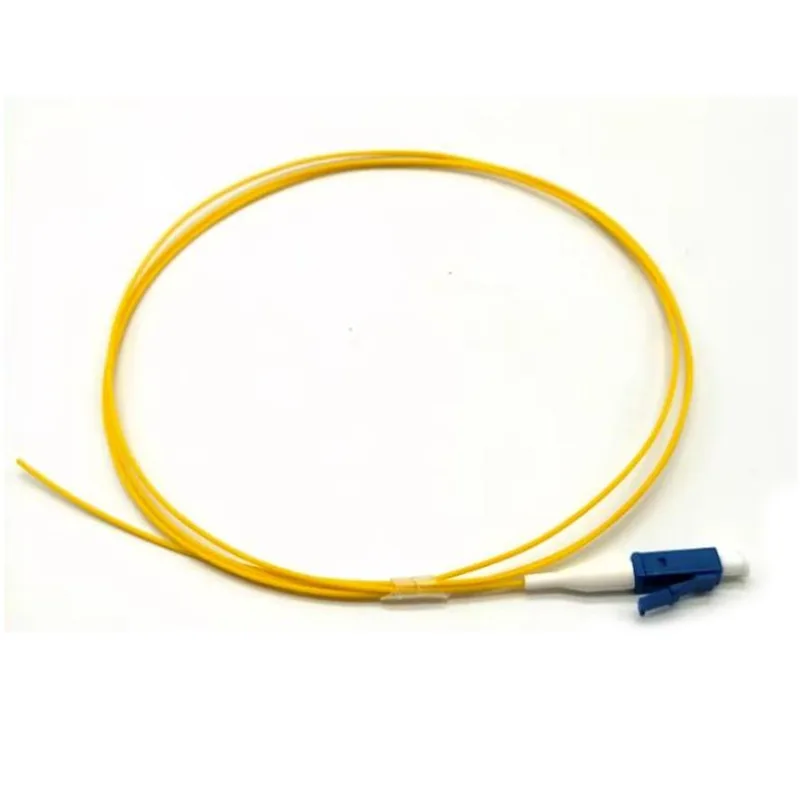

LC/UPC 0.9mm Optical Fiber Pigtail

Our high quality LC/UPC 0.9mm Optical Fiber Pigtail are all made in China. Orientalfiber is a professional the LC/UPC 0.9mm Optical Fiber Pigtail manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Orientalfiber 3mm Round Cable E2000/APC- LC/UPC Patch Cords are designed to meet modern fiber optic network connection needs. The 3mm round cable is flexible and durable, easy to route in limited spaces, with reliable protection for internal optical fibers. Its E2000/APC and LC/UPC dual-connector design ensures compatibility with mainstream fiber optic devices and stable signal transmission.Each Orientalfiber 3mm Round Cable E2000/APC- LC/UPC Patch Cord is factory-terminated and tested to ensure consistent performance and reduce signal loss risks. It complies with ROHS standards, using non-toxic, environmentally friendly materials suitable for indoor and outdoor use.

Core Features

Precision Connector Design

Equipped with high-precision E2000/APC and LC/UPC connectors: E2000/APC has a dust-proof protective cover and locking device for high-reliability scenarios; LC/UPC uses a compact 1.25mm ceramic ferrule, ideal for high-density wiring like data centers. Both ensure accurate fiber alignment and minimal signal loss.

Professional End Face Polish

UPC and APC end face polishes meet different transmission needs: UPC (≥55dB return loss for single-mode) suits Ethernet, data and voice services; APC (≥65dB return loss for single-mode) is for CATV and PON networks. APC connectors are green, UPC blue for easy distinction.

Flexible and Durable Cable Structure

The 3mm round cable has a thick protective jacket for tensile strength and wear resistance. Its high-quality glass core ensures low attenuation and stable long-distance transmission, with a standard-compliant minimum bending radius for complex wiring scenarios.

Customizable and Compliant

Customizable lengths (0.5m-10m+ available) meet project-specific needs. All patch cords are 100% factory-tested (insertion/return loss) and ROHS compliant (2011/65/EU directive), meeting global environmental standards.

Wide Compatibility

Compatible with SC and other single-fiber connectors, supporting single-mode/multi-mode transmission (G652B, G652D, OM3, OM4, etc.) for wide use in various fiber optic network systems.

Application Scenarios

Data Centers

Orientalfiber 3mm Round Cable E2000/APC- LC/UPC Patch Cords are widely used in data centers for connecting switches, routers, servers and other devices. The compact LC/UPC connector is suitable for high-density wiring, while the stable transmission performance ensures the smooth operation of high-speed data transmission, meeting the needs of large-scale data processing and storage.

Ethernet Applications

In Ethernet networks, the patch cords provide reliable connection between network devices, supporting high-speed data transmission. The UPC end face polish ensures low insertion loss, reducing signal attenuation, and is suitable for 1Gbps, 10Gbps and higher speed Ethernet systems, widely used in enterprise LAN, campus network and other scenarios.

FTTH Applications

For Fiber-to-the-Home (FTTH) projects, the patch cords are used for connecting optical line terminals (OLT), optical network units (ONU) and other devices. The APC end face polish is suitable for PON network structures, providing excellent return loss performance, ensuring stable signal transmission between the central office and user terminals, and improving the quality of home broadband services.

Backbone, Horizontal and Riser Applications

In building and campus network cabling, the 3mm round cable’s flexibility and durability make it suitable for backbone, horizontal and riser wiring. It can be easily routed through walls, floors and ceilings, providing reliable connection between different network segments, ensuring the integrity and stability of the entire network.

Video, Data and Voice Services

The patch cords support simultaneous transmission of video, data and voice signals, with low signal interference and high transmission quality. They are widely used in video surveillance systems, broadcast and video production, as well as voice over IP (VoIP) services, meeting the integrated transmission needs of multi-service networks.

Test Equipment Applications

In optical fiber test scenarios, the patch cords are used to connect test equipment (such as optical power meters, optical loss test sets) with the tested devices. The high-precision connector and stable optical performance ensure accurate test results, making them an essential accessory for optical fiber network testing and maintenance.

General Specification:

Note： Fiber length does not include connectors.

Schematic drawing:
