Conventional SC/UPC-LC/UPC 3.0mm Patch Cords

Our high quality Conventional SC/UPC-LC/UPC 3.0mm Patch Cords are all made in China. Orientalfiber is a professional the Conventional SC/UPC-LC/UPC 3.0mm Patch Cords manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

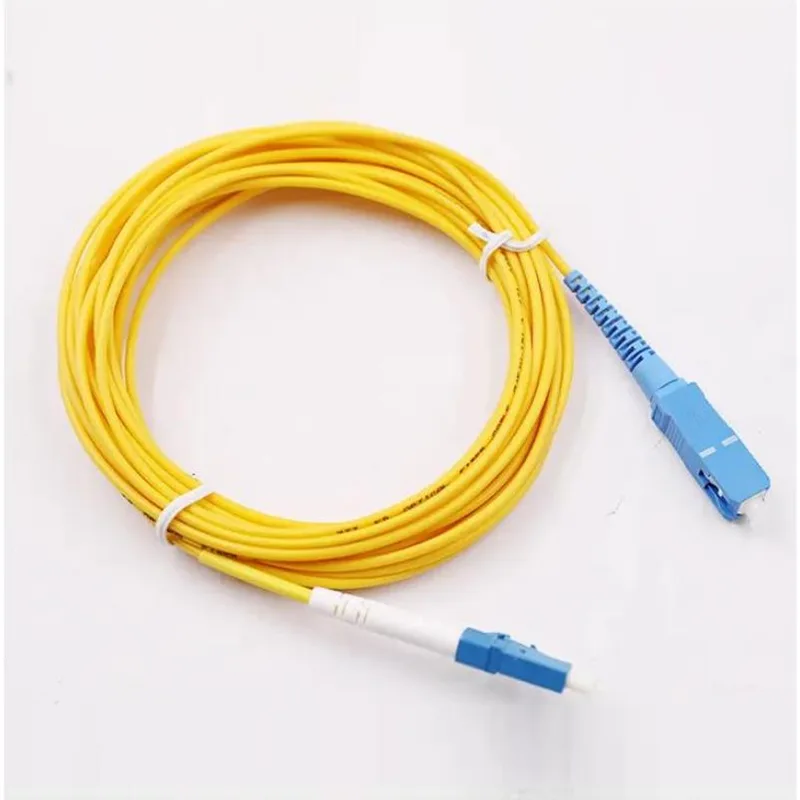

Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords are single-mode fiber optic patch cords with SC/UPC and LC/UPC connectors at both ends, featuring a 3.0mm diameter cable jacket. These patch cords are 100% factory terminated and tested, ensuring consistent performance and stable signal transmission. The product adopts low smoke zero halogen (LSZH) jacket material, which is environmentally friendly and safe, suitable for various indoor and semi-outdoor application scenarios. Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords are designed to meet the basic needs of optical network connections, with reliable quality and long service life.

Core Features

1. High Precision Connector: The patch cords are equipped with high-precision SC and LC single fiber connectors, which adopt ceramic ferrule to ensure accurate alignment of optical fibers, reduce signal loss, and improve the stability of signal transmission. The connectors are designed with a push-pull latching mechanism, which is easy to plug and unplug, and can effectively prevent accidental disconnection during use.

2. UPC End Face Polish: The end face of the connector is polished with UPC technology, which has a micro-convex surface, ensuring good contact between the end faces of the optical fibers, reducing back reflection, and the return loss is not less than 50dB, meeting the requirements of high-speed and long-distance signal transmission.

3. Single Fiber Design: All connectors of Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords are single fiber connectors, which are suitable for single-mode optical signal transmission, matching ITU-T G652D single-mode fiber, and can be used in various high-speed optical network systems.

4. Customizable Length: We provide customizable length services according to customer needs, with a standard length of 5m (with a tolerance of +0.3/-0m), and other lengths can be customized to meet the different layout needs of various network projects.

5. Strict Factory Testing: Each Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cord undergoes 100% factory termination and testing before leaving the factory, including insertion loss, return loss and other key performance indicators, ensuring that each product meets the relevant standards and can be used directly after delivery.

6. ROHS Compliant: The product complies with ROHS environmental standards, does not contain harmful substances, is environmentally friendly and safe, and can be used in various environmentally sensitive areas such as data centers and residential areas.

Application Scenarios

Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords are widely used in various optical network scenarios, mainly including the following fields:

• Data Centers: Used for high-speed optical signal connection between servers, switches, storage devices and other equipment in data centers, supporting high-bandwidth transmission needs, and ensuring the stable operation of data centers.

• Ethernet Applications: Suitable for Ethernet systems of various scales, realizing high-speed and stable data transmission between network devices, improving network efficiency and reliability.

• FTTH Applications: Used in fiber-to-the-home (FTTH) systems, connecting optical line terminals (OLT) and optical network units (ONU), providing high-speed broadband services for residents and enterprises.

• Backbone, Horizontal and Riser Applications: Applied in the backbone, horizontal and riser cabling of building comprehensive wiring systems, realizing the connection of optical signals between different floors and different areas, and meeting the needs of large-scale network layout.

• Video, Data and Voice Services: Used in the transmission of video, data and voice signals, ensuring clear and stable signal transmission, and suitable for communication systems such as radio and television and video surveillance.

• Test Equipment Applications: Used as a connecting cable for optical test equipment, ensuring the accuracy and reliability of test results, and widely used in the research and development and testing of optical communication products.

Cable Construction & Material

The Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords adopt a reasonable cable structure, with a 900μm buffer fiber inside, which can effectively protect the optical fiber core and reduce the impact of external forces on the optical fiber. The buffer fiber is white, which is easy to distinguish during construction and maintenance.

The cable jacket is yellow, made of low smoke zero halogen (LSZH) material, which has the characteristics of flame retardant, low smoke and non-toxic. In case of fire, it will not release harmful gases, which can effectively protect the safety of personnel and equipment. The diameter of the cable is Φ3.0 ±0.20mm, which is flexible and easy to bend, and the minimum bending radius is not less than 20mm, which is convenient for wiring in narrow spaces.

Product Advantages

Reliable Performance

Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords adopt high-quality materials and precision manufacturing technology, with insertion loss ≤0.25dB and return loss ≥50dB (UPC), ensuring low-loss and stable signal transmission. The connection repeatability is more than 800 times, and the fiber/cable retention force meets 50N±2N at 5N/s for 120s, which can adapt to long-term use in various environments.

Wide Environmental Adaptability

The product has a wide operating temperature range of -20°C ~ +70℃ and a storage temperature range of -40℃ ~ +85℃, which can adapt to various harsh environmental conditions, including high temperature, low temperature and humid environments, and is suitable for indoor and semi-outdoor use.

Easy to Install & Maintain

The SC and LC connectors of the patch cords adopt a push-pull latching mechanism, which is easy to plug and unplug, and can be operated with one hand, improving the efficiency of installation and maintenance. The standardized design ensures good interchangeability, and the connectors can be used with other standard SC/UPC and LC/UPC adapters and equipment.

Cost-Effective

As a professional manufacturer, Orientalfiber has its own complete production chain, which can effectively control production costs. The Conventional SC/UPC-LC/UPC 3.0mm Patch Cords provide high-quality performance at a reasonable price, which is cost-effective for large-scale network projects and long-term use.

Technical Specification:

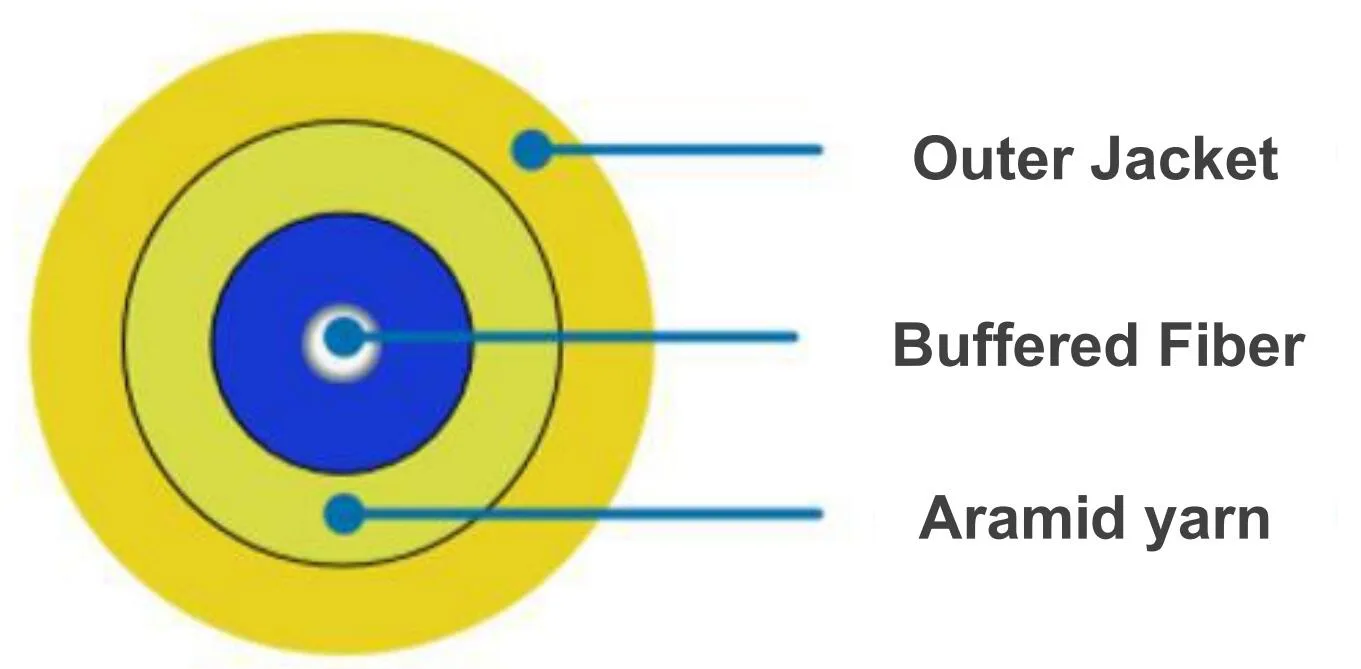

Cable Construction:

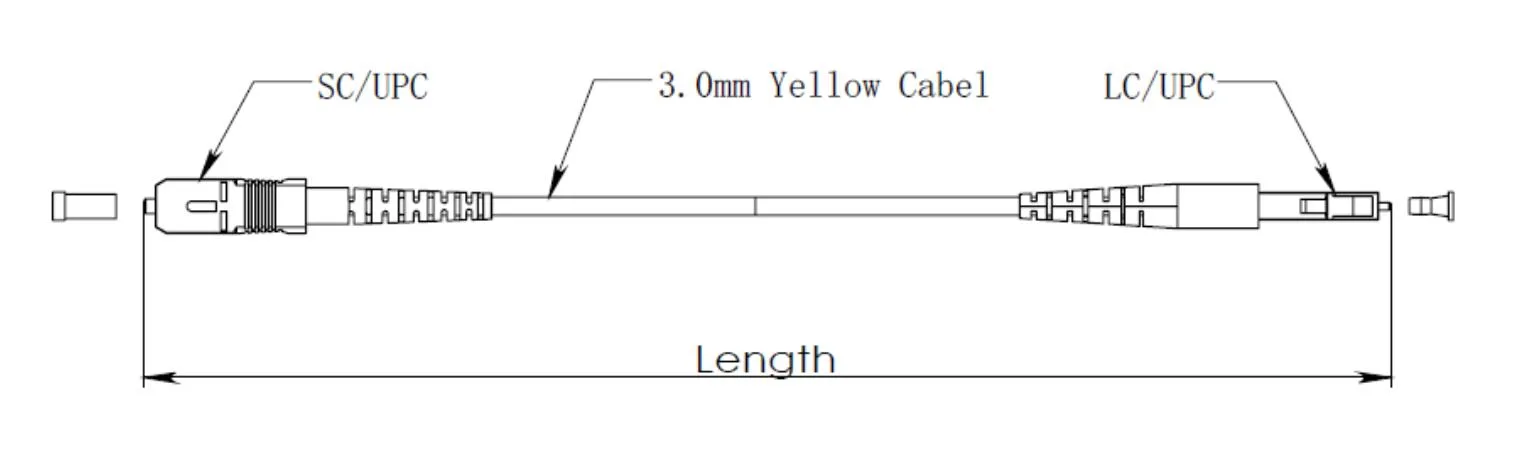

Dimensional drawing:

FAQ (Frequently Asked Questions)

Q1: Can the length of Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords be customized?

A1: Yes, we provide customizable length services. The standard length is 5m, and other lengths can be customized according to your specific needs. You can contact our sales team to confirm the customization details.

Q2: What is the difference between SC/UPC and LC/UPC connectors?

A2: SC/UPC connectors have a rectangular shell and adopt a push-pull latching mechanism, which is easy to plug and unplug and has high installation density. LC/UPC connectors are small in size, with a ferrule diameter of 1.25mm, which is half of the SC connector, suitable for high-density installation scenarios such as data centers. Both connectors adopt UPC end face polish, which can ensure good signal transmission performance.

Q3: Are Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords suitable for outdoor use?

A3: The product is mainly designed for indoor and semi-outdoor use. The LSZH jacket material has certain waterproof and anti-aging properties, but it is not recommended for long-term use in open outdoor environments with harsh weather. For outdoor applications, we recommend choosing our dedicated outdoor fiber optic patch cords.

Q4: How to ensure the quality of the patch cords?

A4: We have strict quality control procedures. Each patch cord undergoes 100% factory termination and testing, including insertion loss, return loss, connector performance and other indicators. At the same time, the company has obtained ISO9001 quality management system certification, ensuring that the production process meets international standards, and each product can meet the quality requirements before leaving the factory.

Q5: What is the delivery time of Orientalfiber Conventional SC/UPC-LC/UPC 3.0mm Patch Cords?

A5: The delivery time depends on the order quantity and customization requirements. For standard length products, the delivery time is usually 3-7 working days. For large orders or customized products, the delivery time will be appropriately extended, and our sales team will confirm the specific delivery time with you after receiving the order.
