● Data centers
● Ethernet applications
● FTTH applications
● Backbone, horizontal and riser applications
● Video, data and voice services
● Test equipment applications
● High precision connector
● APC end face polish
● SC, all single fiber connector
● Customized length available
● 100% factory terminated and tested
● ROHS Compliant
| Constructions | Unit | Descriptions |
| Fiber Mode | Single mode: ITU-T G657A2 | |
| Fiber Count | Simplex | |
| Wavelength | nm | 1310/1550 |
| Connector Grade (IL) | Grade B | |
| Insertion Loss | dB | ≤0.25 (Typ.IL: ≤0.12) |
| Return Loss | dB | ≥55 (Mated RL: ≥60) |

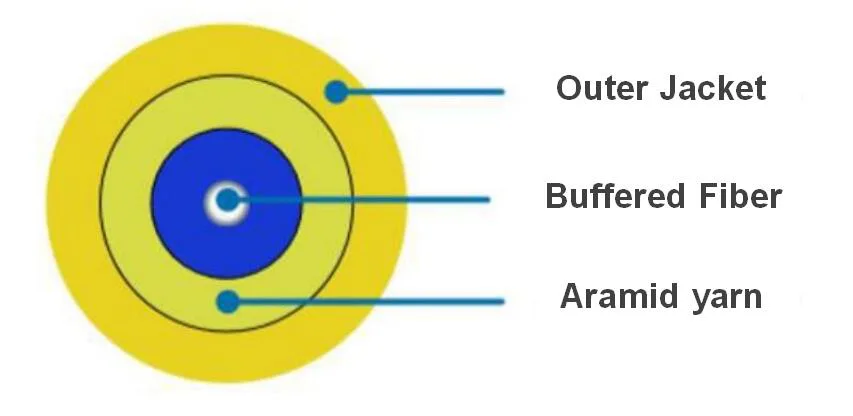

| Buffer Fiber Diameter | um | 900 |
| Buffer Fiber Color | White | |
| Cable Jacket Color | Yellow | |
| Cable Jacket Material | LSZH (Flame retardancy) | |
| Cable Diameter | mm |
 1.6 ±0.20
|
| Length | m |
1 +0.1/-0 3 +0.1/-0 5 +0.2/-0 30 +0.5/-0 or Customization |

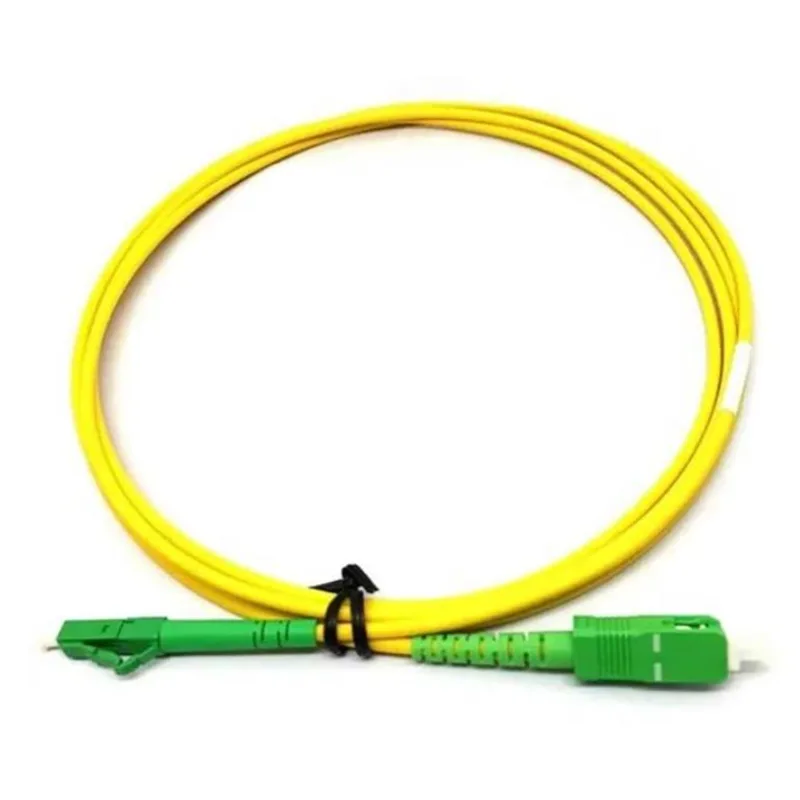

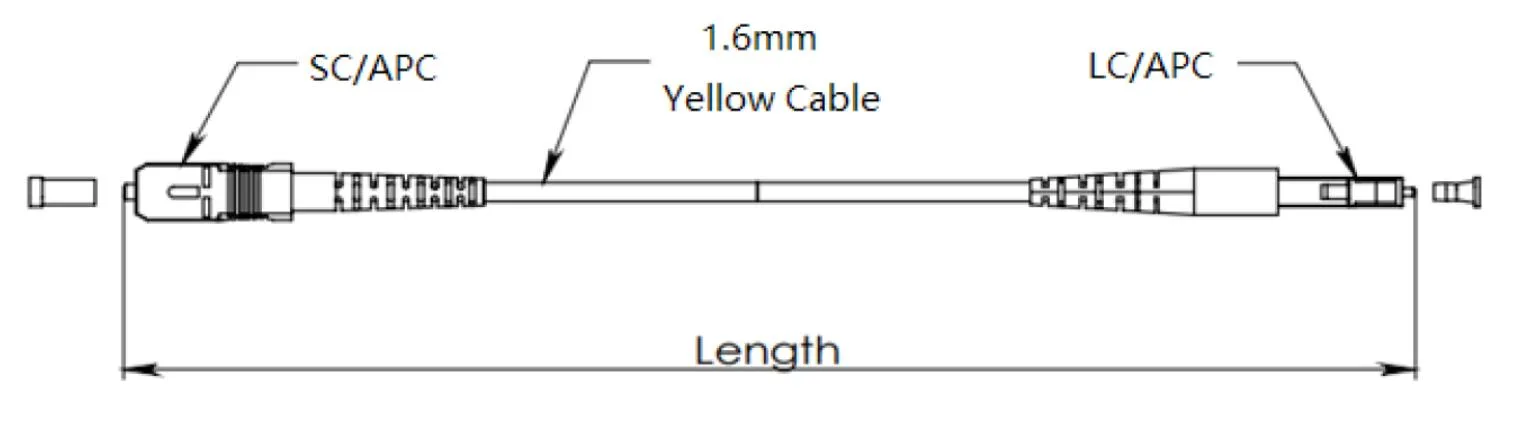

| Connector type |
A Port： SC/APC (Green) B Port： LC/APC (Green) |
|
| Endface polish | APC | |
| Ferrule Material | Ceramic | |
| Connection Repeatability | > 800 times | |
| Minimal Bending radius | mm | ≥10 |
| Fibre/cable retention meet | N | 50N±2N at 5N/s 120s duration |
| Operating Temperature | -20°C ~ +70℃ | |
| Storage Temperature | -40℃ ~ +85℃ |
| Item | Tests Required | Requirements |
|
Temperature cycling (IEC 61300-2-22 ed.2) |
-25 °C to +70 °C Duration at extreme temperatures: 60 min 1 °C/min rate of change 12 cycles |
According IEC 61753-1 |
|
Dry heat (IEC 61300-2-18) |
Temperature: +70 °C Duration: 96 h |
|
|
Damp heat (cyclic) (IEC 61300-2-46) |
Temperature: +25 °C to +55 °C Humidity: > 90 % RH 6 cycles (24 h/cycle) |
|
|
Vibration (sinusoidal) (IEC 61300-2-1) |
Frequency range:10 Hz to 55 Hz Number of sweeps:15 sweeps (10 – 55 – 10) Hz per axis Rate of frequency change: 1 octave/min Number of axes: 3 mutually perpendicular axes Amplitude: 0,75 mm |
|
|
Mating durability (IEC 61300-2-2) |
200 cycles |
1. Valve Bag Packing
