Conventional SC/UPC-FC/UPC 3.0mm Patch Cords

Orientalfiber is a manufacturer and supplier specializing in Conventional SC/UPC-FC/UPC 3.0mm Patch Cords, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Conventional SC/UPC-FC/UPC 3.0mm Patch Cords are all made in China. Orientalfiber is a professional the Conventional SC/UPC-FC/UPC 3.0mm Patch Cords manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● Data centers

● Ethernet applications

● FTTH applications

● Backbone, horizontal and riser applications

● Video, data and voice services

● Test equipment applications

Features:

● High precision connector

● UPC end face polish

● SC, FC, all single fiber connector

● Customized length available

● 100% factory terminated and tested

● ROHS Compliant

Technical Specification:

Constructions	Unit	Descriptions
Fiber Mode		Single mode: ITU-T G652D
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.25
Return Loss	dB	≥50 (UPC)
Buffer Fiber Diameter	um	900
Buffer Fiber Color		White
Cable Jacket Color		Yellow
Cable Jacket Material		Low Smoke Zero Halogen (LSZH)
Cable Diameter	mm	Φ3.0 ±0.20
Length	m	5 +0.3/-0
Connector type		A Port: SC/UPC (Blue) B Port: FC/UPC (Black)
Endface polish		UPC
Ferrule Material		Ceramic
Connection Repeatability		> 800 times
Minimal Bending radius	mm	≥20
Fibre/cable retention meet	N	50N±2N at 5N/s 120s duration
Operating Temperature		-20°C ~ +70℃
Storage Temperature		-40℃ ~ +85℃

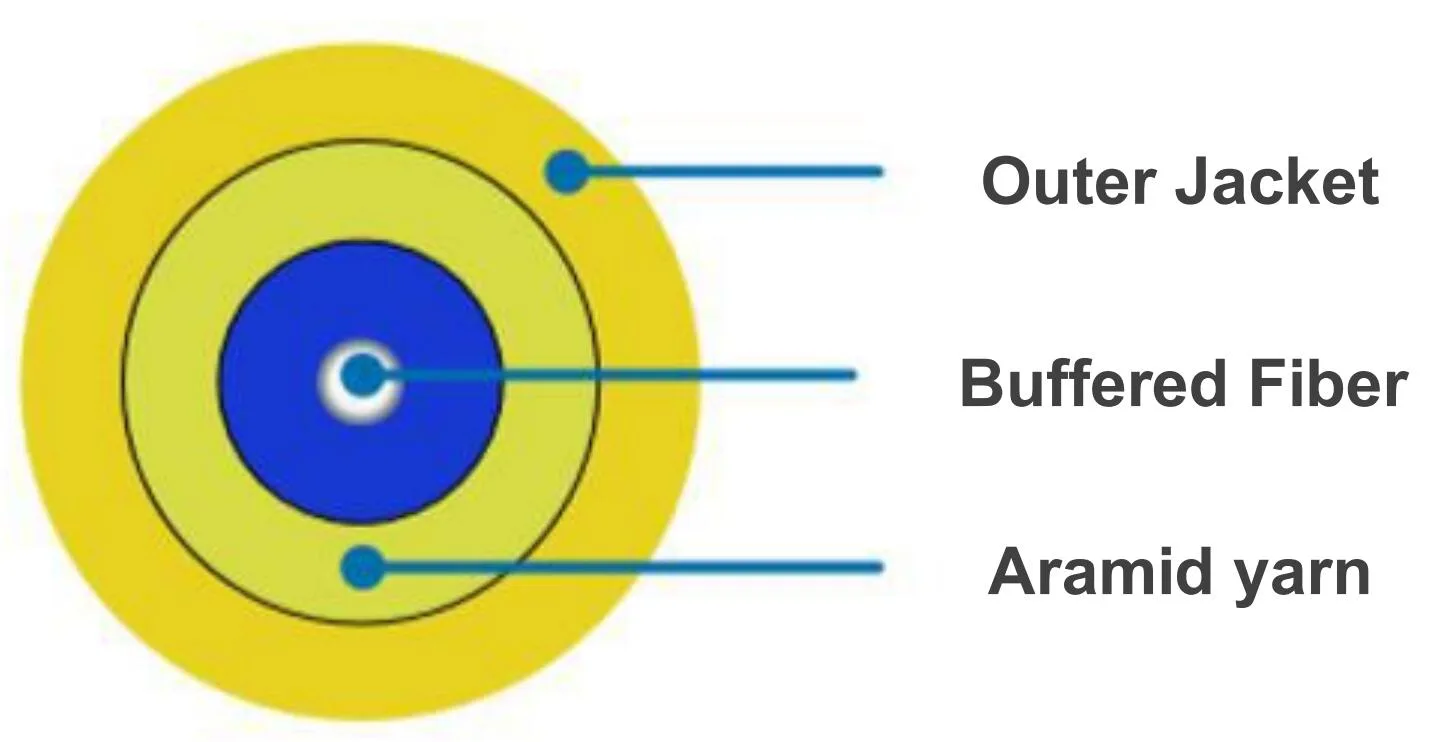

Cable Construction:

Conventional SC/UPC-FC/UPC Patch Cords

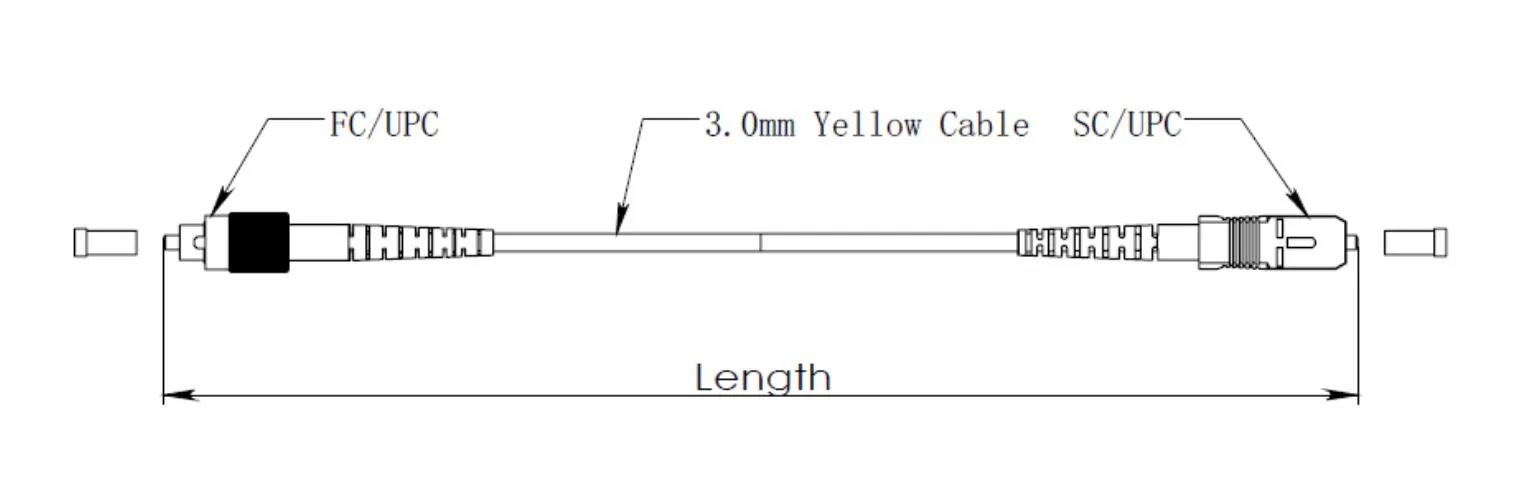

Dimensional drawing:

Conventional SC/UPC-FC/UPC Patch Cords
