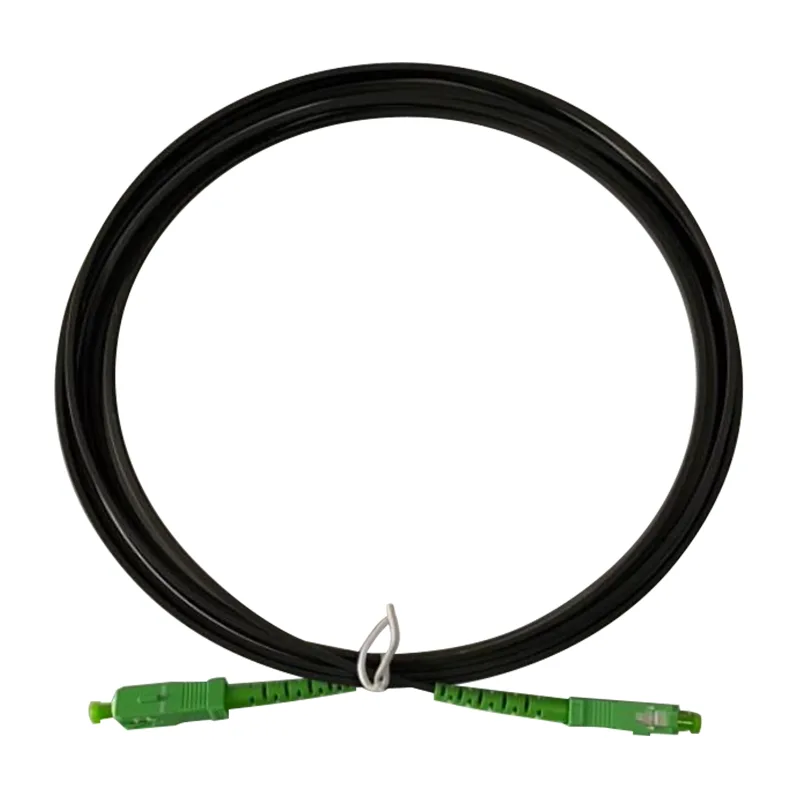

3mm Round Cable SC/APC- SC/APC Patch Cords

The Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords represent a critical link in modern high-speed telecommunications infrastructure. Manufactured by Orientalfiber, a key division of the Jiangsu Xuben Photoelectric Technology group, these patch cords are the result of extensive research and high-capacity manufacturing. With a production footprint spanning 15,000 square meters and ISO9001 certification, Orientalfiber ensures that every cable supports the rigorous demands of global data transmission. When you choose to source the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords , you are investing in a product backed by a group with a 20-million-dollar annual output and a reputation for professional-grade reliability.

Technical Performance and Engineering Excellence

The design of the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords focuses on minimizing signal interference while maximizing physical durability. By utilizing G657A1 single-mode fiber, these cables offer exceptional bend resistance, which is vital for complex routing in tight spaces.

Core Construction Features

• High-Precision Ceramic Ferrules: The SC/APC connectors utilize precision-engineered ceramic ferrules to ensure stable alignment and a return loss of ≥55dB, preventing signal reflections that can degrade network performance.
• LSZH Safety Jacket: The 3.0mm outer jacket is composed of Low Smoke Zero Halogen material, making it suitable for riser and horizontal applications where fire safety and low toxicity are mandatory.
• Rigorous Factory Validation: Every unit is 100% factory terminated and tested. This eliminates the variables of field termination, ensuring that your Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords perform to specification immediately upon installation.
• Mechanical Resilience: Designed to withstand a retention force of 50N, these cables are built to endure the physical stresses common during installation and long-term maintenance.

Strategic Applications Across Diverse Industries

The versatility of the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords allows them to be deployed in various high-stakes environments, ranging from commercial data hubs to public utility monitoring.

Data Centers and Ethernet Networks

In high-density data centers, cable management is a priority. The 3mm round profile provides a robust alternative to thinner cords, offering better protection against crushing while maintaining the flexibility needed for patch panel connections.

FTTH and Telecommunications Services

For Fiber-to-the-Home (FTTH) projects, these patch cords bridge the gap between the optical distribution network and the subscriber's equipment. Their ability to handle video, data, and voice services simultaneously makes them a staple for modern broadband providers.

Industrial and Infrastructure Projects

Beyond standard office networking, Orientalfiber products are widely used in electrical power systems, rail transit, and highway communications. The durability of the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords ensures stable operation in the demanding environments of industrial front-end connections.

Reliability and Quality Assurance Standards

As part of the Jiangsu Xuben Photoelectric Technology group, Orientalfiber operates four specialized factories. This vertical integration—covering indoor cables, outdoor cables, ODN components, and network equipment—allows for total quality control.

• Environmental Compliance: All components are RoHS compliant, meeting international standards for environmental safety.
• Durability Benchmarks: With a connection repeatability rating of over 800 times, these cords are highly reliable for test equipment applications where frequent plugging and unplugging occur.
• Thermal Stability: These cords maintain performance across a broad temperature spectrum, from -30°C storage to +50°C operational environments.

Technical Specification:

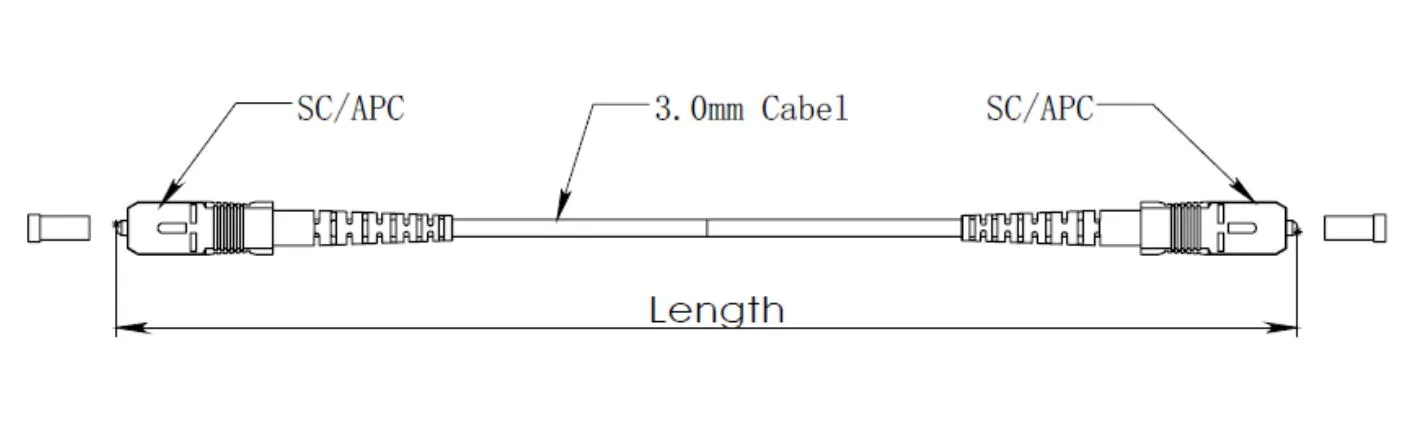

Dimensional drawing:

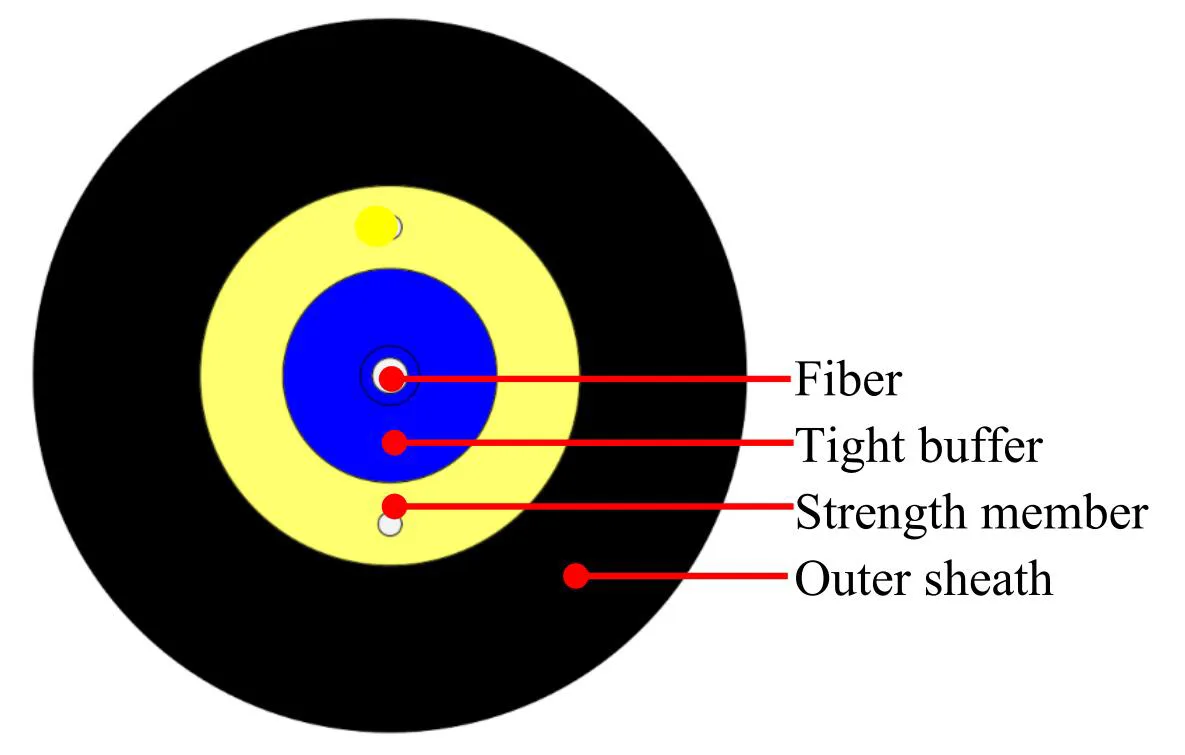

Cable Construction:

Fiber Characteristic:

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T Recommendation G.657A1 and shall be as follows.

Frequently Asked Questions (FAQ)

What distinguishes the SC/APC connector in this Orientalfiber patch cord?

The APC (Angled Physical Contact) polish features an 8-degree angle on the ferrule end-face. This design ensures that back-reflections are absorbed into the fiber cladding, providing a superior return loss compared to standard UPC connectors, which is essential for high-fidelity video and long-distance data transmission.

Can the length of the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords be customized?

Yes. While we offer standard lengths such as 10m, 30m, 50m, 75m, and 100m, Orientalfiber provides customized length options to suit specific architectural requirements or unique engineering projects.

Is this cable suitable for riser or horizontal applications?

Absolutely. The LSZH jacket and the 3mm diameter are specifically designed to meet the safety and structural requirements for backbone, horizontal, and riser installations within commercial and residential buildings.

How does Orientalfiber support large-scale engineering projects?

Through our group's four-factory system, we provide complete fiber optic network solutions. This includes not only the Orientalfiber 3mm Round Cable SC/APC- SC/APC Patch Cords but also the surrounding ODN components and active equipment needed for a full-scale deployment.
