Multi-Purpose Distribution Fiber Optic Cable (≥24f)

Multi-purpose distribution fiber optic cable (≥24f) uses multi-core sub-units (Φ900μm tight-buffered optical fiber, aramid reinforcement elements), non-metallic central reinforcement core, the optical cable sub-units are twisted in the central reinforcement core to form a cable core, and a layer of polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath is extruded on the outside.

Send Inquiry

Product Description

Characteristics

Stranded non-metallic strength member structure ensure the cable endure larger tensile strength

Tight buffer fibre has excellent flame-retardant performance

Aramid yarn as strength member make cable have excellent tensile strength

The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Applications

Purpose cable distribution

Backbone distribution cable in a building

Multi optical fibre patchcord

Standards

Meet the standards of YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc. In addition to ordinary PVC products, there are also products that have passed UL OFNR and OFNP certifications. LSZH products use different materials to meet IEC60332-1 or IEC60332-3C.

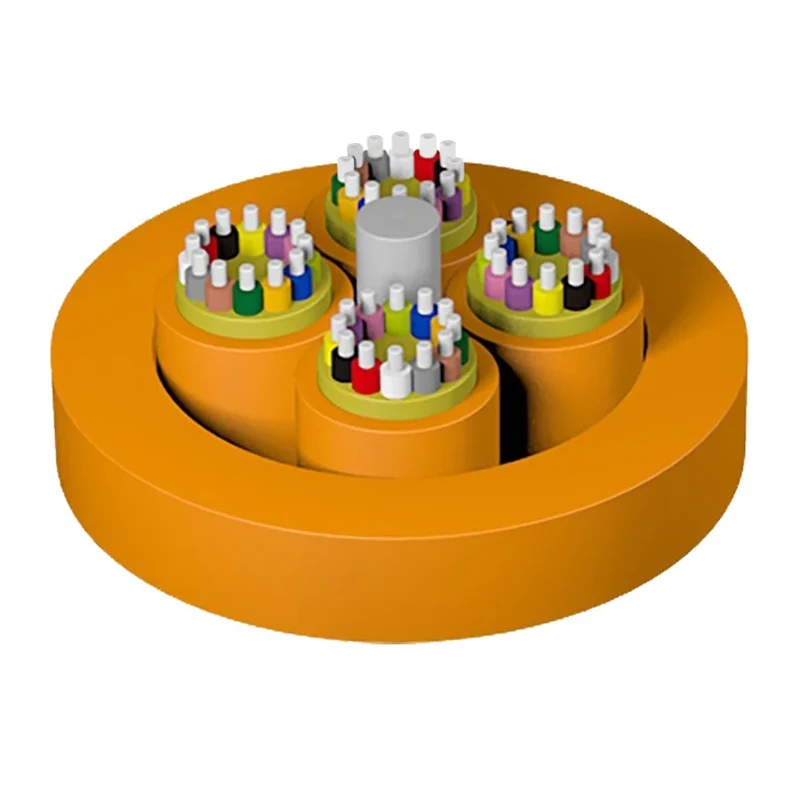

Structure Drawing

1. Fibre

2. Sub-unit

3. Aramid Yarn

4. Central Strength Member

5. Jacket

Multi-Purpose Distribution Fiber Optic Cable (≥24f)

Technical Parameters

Cable Model	Cable Diameter (Ref) (mm)	Cable Weight (Ref) (kg/km)		Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
Cable Model	Cable Diameter (Ref) (mm)	PVC Jacket	LSZH Jacket	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
24	12.3±0.5	117	124	200/660	300/1000	20D/10D
36	14.5±0.5	171	180	200/660	300/1000	20D/10D
48	14.8±0.5	161	170	400/1320	300/1000	20D/10D
72	17.5±0.5	244	254	400/1320	300/1000	20D/10D
96	20.7±0.5	351	366	400/1320	300/1000	20D/10D
144	24.8±0.5	443	451	400/1320	300/1000	20D/10D

Optical Characteristics

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Typical Value	Maximum Value	Typical Value	Maximum Value		850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
