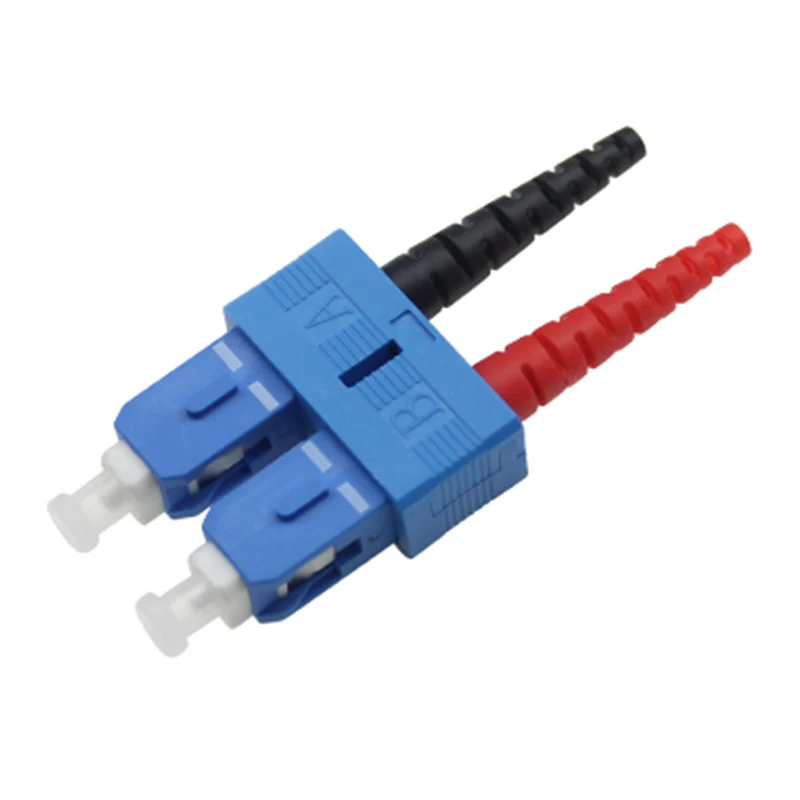

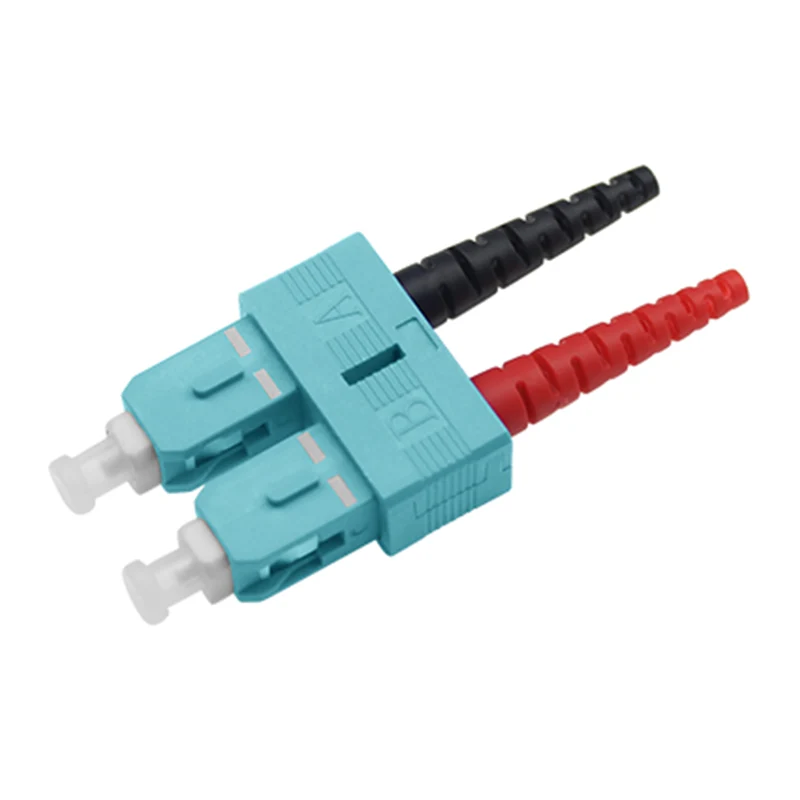

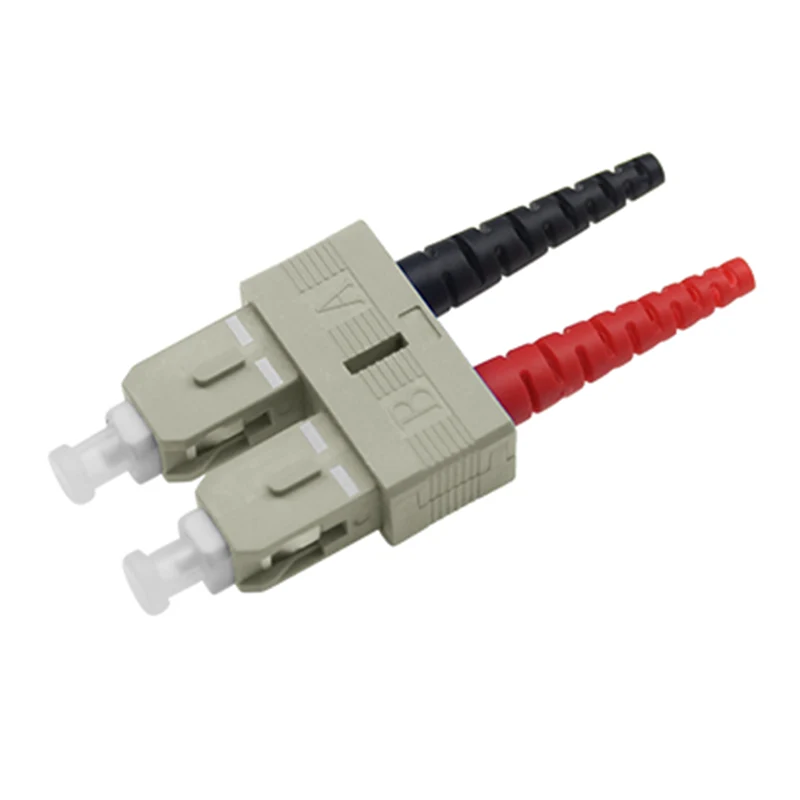

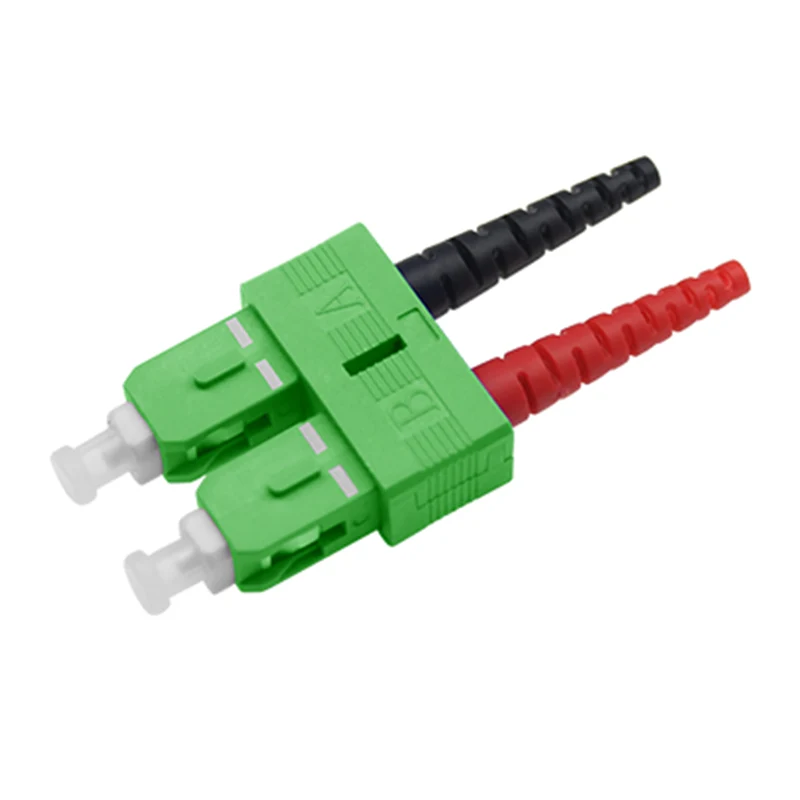

SC 2.0mm/3.0mm DX MM Connector

Orientalfiber is a manufacturer and supplier specializing in SC 2.0mm/3.0mm DX MM Connector, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality SC 2.0mm/3.0mm DX MM Connector are all made in China. Orientalfiber is a professional the SC 2.0mm/3.0mm DX MM Connector manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Fiber Count: Duplex

Insertion Loss: ≤0.25dB

Fiber Mode: Multi Mode

Return Loss: /

Polish Type: PC

Durability: >1000times

Cable Diameter: 2.0mm/3.0mm

Operating Temp:-40~85°C

Specification

Parameter	SC 2.0mm/3.0mm DX Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
