Two parallel FRP strength members ensure good performance of crush resistance to protect the fibre
The single steel wire is reinforced with additional components to make the optical cable have better tensile strength and can be used overhead
Simple structure, high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath

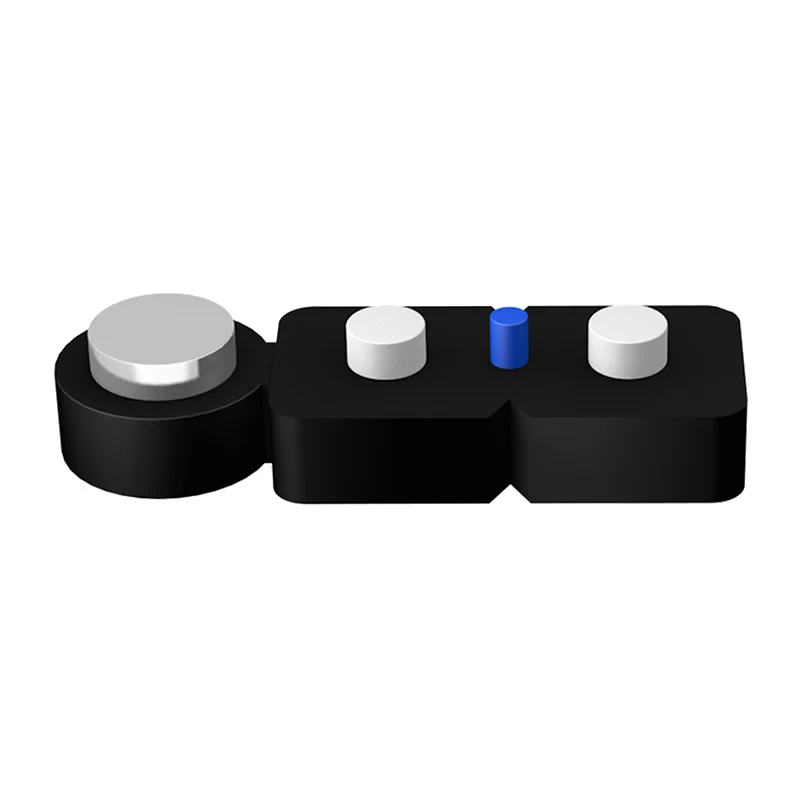

1. LSZH Jacket
2. FRP Strength Member
3. Optical Fibre Unit
4. Steel Wire
|
Cable Model |
Fibre Count |
Cable Size （mm） |
Cable Weight (Ref) （kg/km） |
Tensile Strength Long/Short Term （N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Dynamic/Static (mm) |
|
GJYXFCH-1Xn |
1 |
(2.0±0.1)*(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXFCH-2Xn |
2 |
(2.0±0.1)*(5.0±0.1) |
20 |
300/600 |
1000/2200 |
15/30 |
|
GJYXFCJH-1Xn |
1 |
(2.0±0.1)*(5.6±0.1) |
21 |
300/600 |
1000/2200 |
15/30 |
|
GJYXFCDH-4Xn |
4(Ribbon) |
(2.0±0.2)*(6.0±0.2) |
22 |
300/600 |
1000/2200 |
15/30 |
Storage/Operating Temperature: -20℃~+60℃
|
Fiber Type |
Attenuation |
OFL |
Effective Mode Bandwidth |
10 Gbit/s Ethernet Link Length |
Minimum Bend Radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical Value |
Maximum Value |
Typical Value |
Maximum Value |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
