Single Channel CWDM Series (1x2)

ParametersSymbolPerformanceUnitWavelength RangeWR1260~1620nmChannel Center WavelengthCW1271、1291、1311 、1331 、1351、13711471、1491、1511 、1531 、1551、1571nmChannel SpacingSp20nmPassband Bandwidth@-1dBPBλc ± 6.5nmInsertion LossILPassband: ≤0.40dBReflection: ≤0.40dBAdjacent Channel IsolationISOA≥ 30......

Send Inquiry

Product Description

Parameters	Symbol	Performance	Unit
Wavelength Range	WR	1260~1620	nm
Channel Center Wavelength	CW	1271、1291、1311 、1331 、1351、1371 1471、1491、1511 、1531 、1551、1571	nm
Channel Spacing	Sp	20	nm
Passband Bandwidth@-1dB	PB	λc ± 6.5	nm
Insertion Loss	IL	Passband: ≤0.40	dB
Insertion Loss	IL	Reflection: ≤0.40	dB
Adjacent Channel Isolation	ISOA	≥ 30	dB
Non-adjacent Channel Isolation	ISON	≥ 40	dB
Reflection Channel Isolation	ISOR	≥ 13	dB
Polarization Dependent Loss	PDL	≤ 0.1	dB
Return loss	RL	≥ 50	dB
Directivity	Dir	≥ 50	dB
Polarization Mode Dispersion	PMD	≤ 0.1	dB
Optical Input Power	P	≤ 300	mW
Operating Temperature	Top	-25 ~ +70	℃
Storage Temperature	Tsp	-40 ~ +85	℃
Fiber Type		Corning SMF-28 Ultra Fiber (G657 A1), Bare Fiber
Fiber Length		≥1.2	m
Package Dimension	PKG	Φ4.0×30 Φ5.5×35 or Φ5.5×38	mm

Note: 1. All Spec excluding connectors.

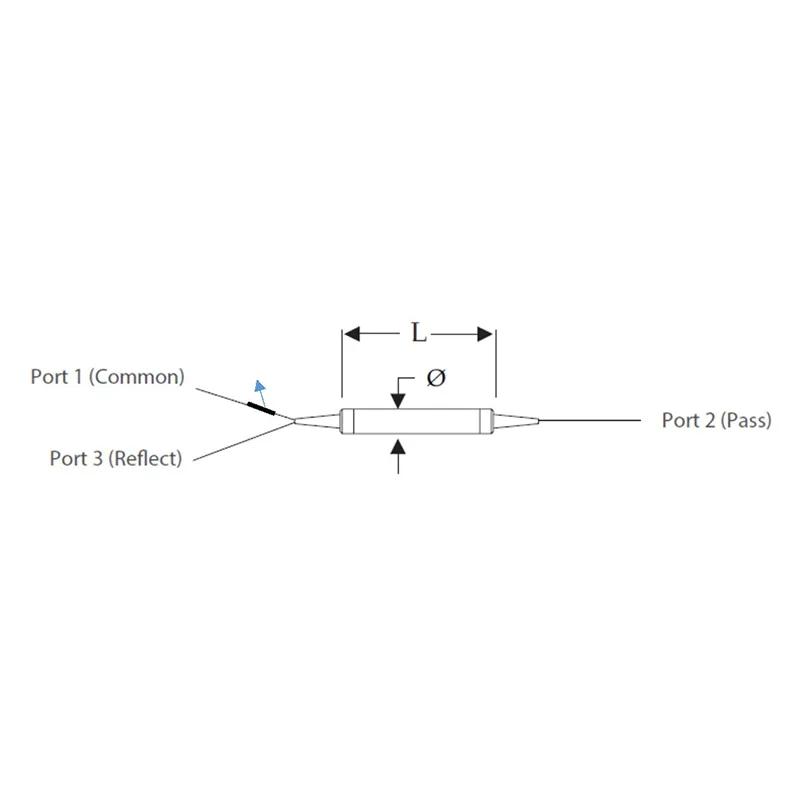

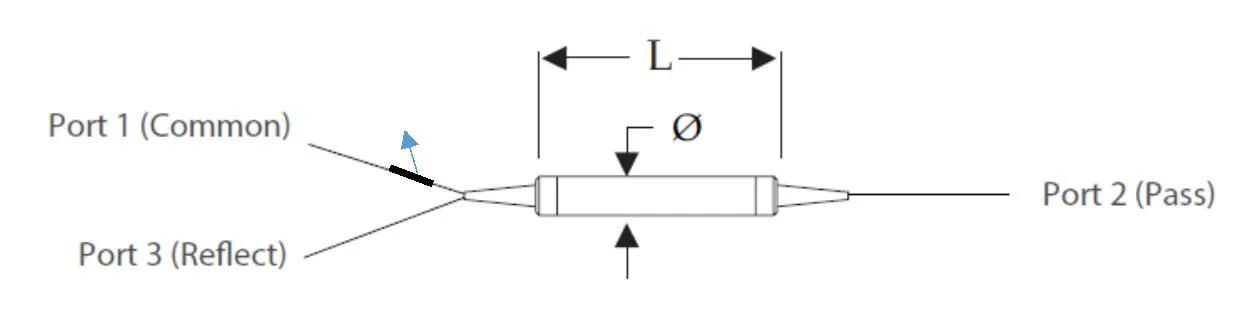

Mechanical Drawing (Unit：mm)

Single Channel CWDM Series (1x2)
