6 Channel Compact CWDM (CCWDM)

ParametersSymbolPerformanceUnitWavelength RangeWR1260~1620nmChannel Center WavelengthCW1271~1371 & 1371~1271(Mux&Demux)1471~1571 & 1571~1471(Mux&Demux)nmChannel SpacingSp20nmPassband Bandwidth@-1dBPBλc ± 6.5nmPassband Ripple≤ 0.5dBInsertion LossILInitial Channel: ≤0.50dBLast Ch......

Send Inquiry

Product Description

Parameters	Symbol	Performance	Unit
Wavelength Range	WR	1260~1620	nm
Channel Center Wavelength	CW	1271~1371 & 1371~1271(Mux&Demux) 1471~1571 & 1571~1471(Mux&Demux)	nm
Channel Spacing	Sp	20	nm
Passband Bandwidth@-1dB	PB	λc ± 6.5	nm
Passband Ripple		≤ 0.5	dB
Insertion Loss	IL	Initial Channel: ≤0.50	dB
Insertion Loss	IL	Last Channel: ≤1.80	dB
Adjacent Channel Isolation	ISOA	≥ 30	dB
Non-adjacent Channel Isolation	ISON	≥ 40	dB
Polarization Dependent Loss	PDL	≤ 0.15	dB
Return loss	RL	≥ 55	dB
Directivity	Dir	≥ 50	dB
Polarization Mode Dispersion	PMD	≤ 0.1	dB
Optical Input Power	P	≤ 300	mW
Operating Temperature	Top	-25 ~ +70	℃
Storage Temperature	Tsp	-40 ~ +85	℃
Fiber Type		Corning SMF-28Ultra Fiber (G657 A1), Bare Fiber
Fiber Length		≥1.2	m
Package Dimension	PKG	44x28x6	mm

Note: 1. All Spec excluding connectors.

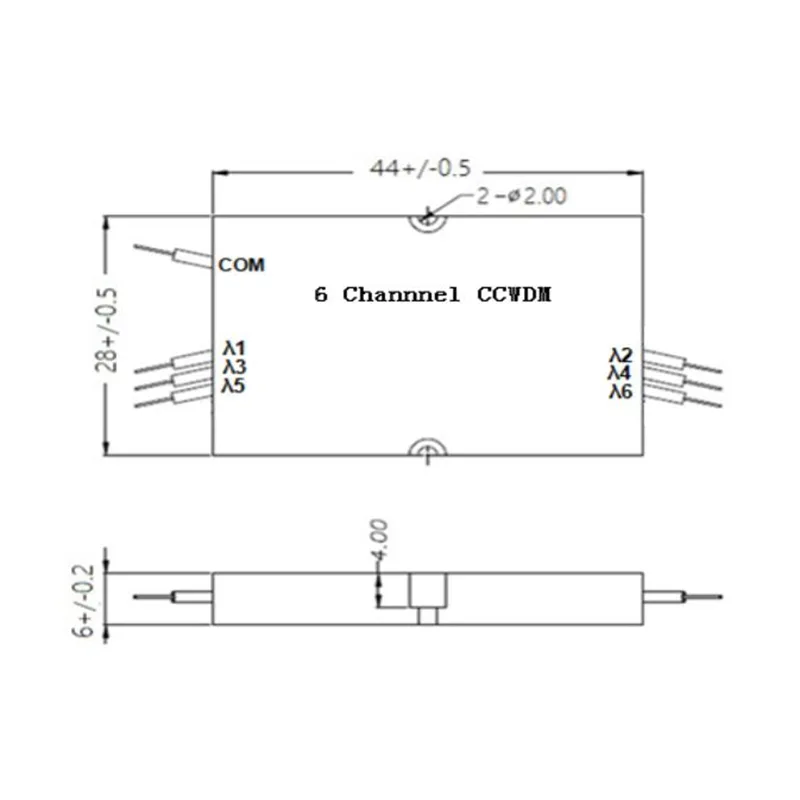

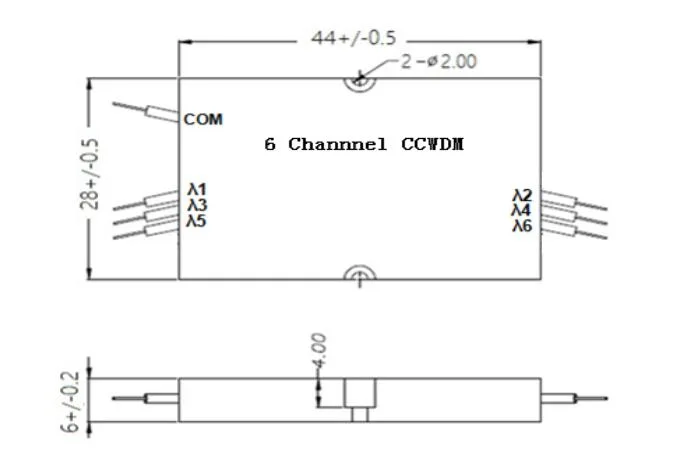

Mechanical Drawing (Unit: mm)

6 Channel Compact CWDM (CCWDM)
