Non-metallic structural design effectively prevents radio frequency interference and electromagnetic wave interference
Tight cable structure effectively prevents sleeve from shrinking
Loose tube filling compound ensure good moisture resistance performance
Good flexibility
High dense fibre packed, small diameter and light weights
Adapted to backbone network, access network an

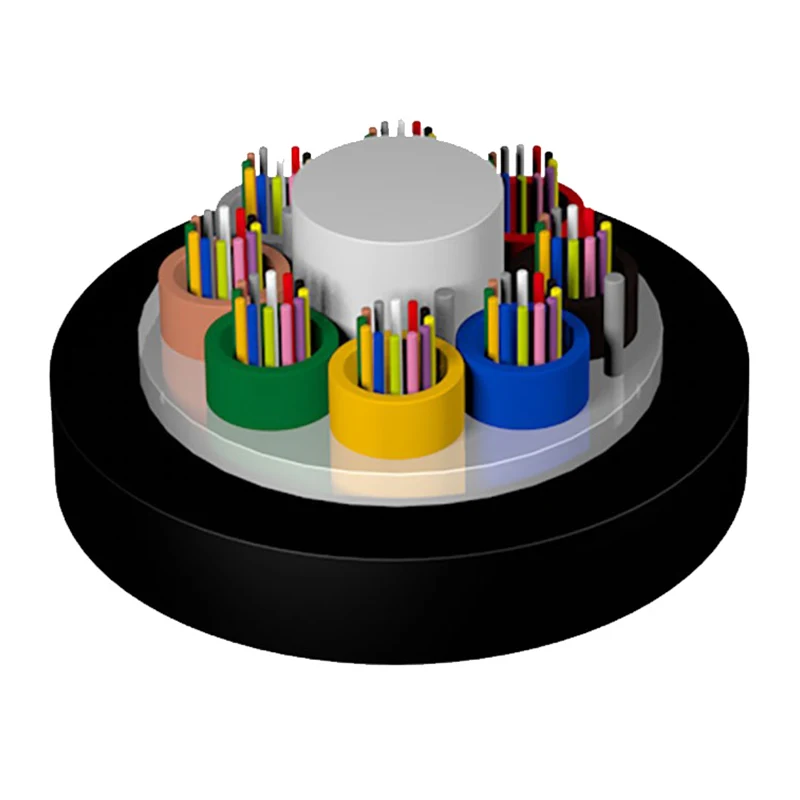

1. Fibre
2. Tube Filling Compound
3. Loose Tube
4. FRP Strength Member
5. Ripcord
6. Water Blocking Yarn
7. PE Sheath
|
Cable Type |
Fibre Count |
Tubes |
Fillers |
Cable Diameter (mm) |
Cable Weight (Ref) (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
GCYFY-24~72Xn |
24~72 |
2~6 |
4~0 |
5.6 |
21 |
150/500 |
150/450 |
10D/20D |
|
GCYFY-96Xn |
96 |
8 |
0 |
6.4 |
31 |
250/800 |
150/450 |
10D/20D |
|
GCYFY-144Xn |
144 |
12 |
0 |
8.3 |
49 |
250/800 |
150/450 |
10D/20D |
Storage/Operating Temperature: -30℃-+70℃
|
Fibre Type |
Attenuation (+20℃) |
Bandwidth |
Numerical Aperture |
Cable Cut-off Wavelength λcc |
||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
--- |
≤1260nm |
|
G.657 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
--- |
≤1260nm |
|
50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
--- |
--- |
|
62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
0.275±0.015 NA |
--- |
