Waterproof Fiber Optic Cable GJA

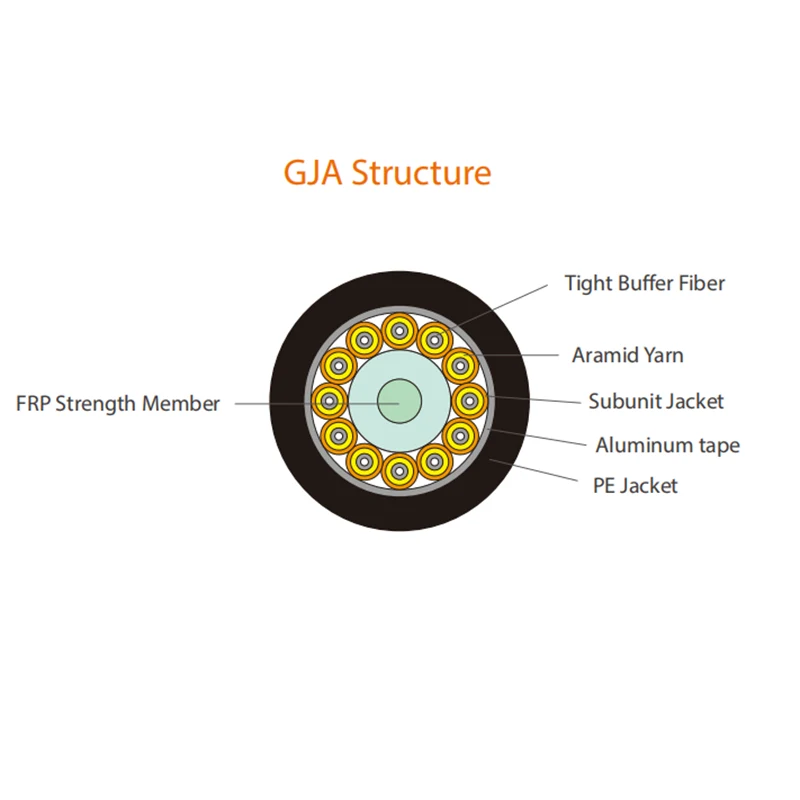

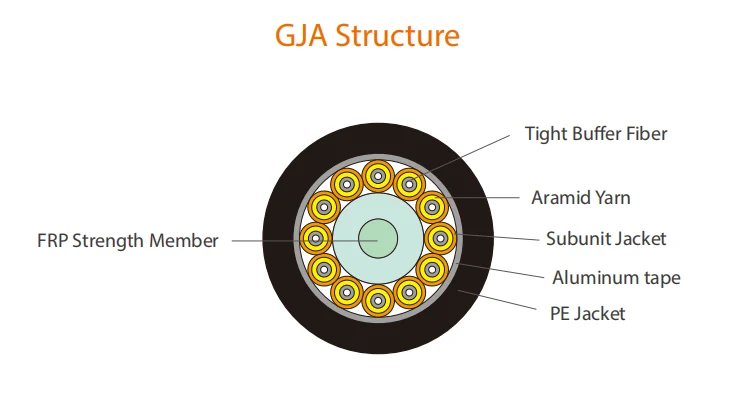

Waterproof Fiber Optic Cable GJA is a special optical transmission cable with waterproof, moisture-proof and anti-corrosion properties, developed by Orientalfiber for indoor and outdoor integrated cabling scenarios. The cable takes a single-core optical cable (φ900μm tight-buffered optical fiber, winding yarn as a reinforcing member) as the sub-unit, uses fiber reinforced plastic (FRP) as a non-metallic reinforcing member at the center of the cable core, twists the sub-units around the cable core, covers the cable core with an aluminum-polyethylene laminate (APL) for moisture-proof protection, and finally wraps the entire cable with a polyethylene sheath to form a complete protective structure. The upper part of the cable is a polyethylene sheath with excellent anti-UV and anti-corrosion performance, which can adapt to long-term outdoor use; the middle part is an APL moisture barrier, which is the core structure to achieve waterproof and moisture-proof effects; the lower part is a twisted sub-unit and FRP reinforcing member, which ensures the mechanical strength of the cable. This structural design makes the Waterproof Fiber Optic Cable GJA have good environmental adaptability and stable transmission performance, and can be widely used in various complex optical communication scenarios.

Characteristics

The twisted non-metallic reinforcement structure ensures that the cable can withstand greater tensile strength.

The sheath has anti-corrosion, waterproof, and UV protection functions.

APL moisture barrier.

Scientific design and rigorous processing technology.

Applications

Indoor multi-purpose fiber optic cabling.

Interconnection of fiber optic cable equipment from outdoor to indoor.

Standards

Comply with YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794, etc.

Technical Parameters

FAQ (Frequently Asked Questions)

What is the waterproof level of the Optic Cable?

The standard waterproof level of the Waterproof Fiber Optic Cable GJA is IP65, which can effectively prevent the invasion of rainwater and dust. According to customer needs, we can also provide products with IP67 waterproof level, which can be used in more harsh humid environments.

Can the Fiber Optic Cable GJA be used outdoors for a long time?

Yes. The polyethylene sheath of the Waterproof Fiber Optic Cable GJA has excellent UV protection and anti-corrosion performance, which can resist the erosion of sunlight, rainwater, wind and sand and other outdoor environments, and the service life can reach more than 20 years when used outdoors normally.

What is the difference between the Waterproof Fiber Optic Cableand ordinary optical cables?

Compared with ordinary optical cables, the Cable adds an APL moisture barrier and uses a special waterproof sheath, which has better waterproof and moisture-proof performance. At the same time, the twisted non-metallic reinforcement structure enhances the tensile strength of the cable, making it more suitable for complex environments such as indoor and outdoor transitions and humid areas. Ordinary optical cables do not have professional waterproof and moisture-proof structures, and are easy to be damaged by moisture in humid environments, affecting signal transmission.

Can the specifications of the Waterproof Fiber Optic Cable be customized?

Yes. Orientalfiber can provide customized services according to the actual needs of customers, including cable core number, fiber type (single-mode/multi-mode), cable diameter, length, waterproof level, etc., to meet the different application needs of customers in various scenarios.

How to ensure the quality of the product during transportation and installation?

During transportation, the Waterproof Fiber Optic Cable GJA is packed in moisture-proof and shock-proof packaging to avoid damage caused by collision and moisture during transportation. During installation, we will provide professional installation guidelines. It should be noted that the bending radius of the cable should not be less than 20 times the cable diameter to avoid damage to the optical fiber. At the same time, the connection part should be sealed to ensure the waterproof performance of the connection.
