● Good mechanical and temperature performance;
● Optical-electric hybrid design solves the power supply and signal transmission problems, and provides centralized monitoring and maintenance of power supply for equipment;
● Improves the manageability of power supply, reduces the coordination and maintenance of power supply;
● Reduces procurement costs and saves construction costs;
● Mainly used for the connection between BBU and RRU in distributed base station DC remote power supply systems;
● Suitable for pipeline and overhead installation
|
Type |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |

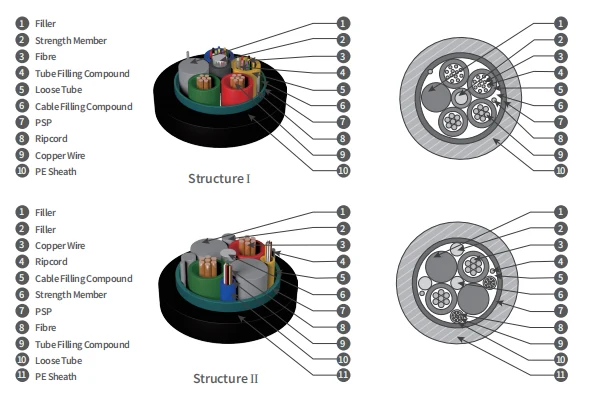

Structure |
|
GDTS-02-24Xn+2×1.5 |
11.6 |
157 |
600/1500 |
300/1000 |
Structure I |
|
GDTS-02-24Xn+2×2.5 |
12.5 |
190 |
600/1500 |
300/1000 |
Structure I |
|
GDTS-02-24Xn+2×4.0 |
14.6 |
241 |
600/1500 |
300/1000 |
Structure II |
|
GDTS-02-24Xn+2×5.0 |
15.0 |
282 |
600/1500 |
300/1000 |
Structure II |
|
GDTS-02-24Xn+2×6.0 |
15.7 |
300 |
600/1500 |
300/1000 |
Structure II |
|
GDTS-02-24Xn+2×8.0 |
16.9 |
383 |
600/1500 |
300/1000 |
StructureII |
1. Xn refers to fibre type.
2. 2*1.5/2*2.5/2*4.0/2*6.0/2*8.0 indicates the number and size of copper wires.
3. Hybrid cables with different numbers and sizes of copper wires can be provided on request.
4. Hybrid cables with different fibre counts can be provided on request.
|
Cross section (mm2) |
Max. DC resistance of single conductor (20 ℃)(Ω/km) |
Insulation resistance (20℃)(MΩ.km) |
Dielectric strength KV, DC 1min Dielectric strength KV, DC 1min |
||
|
Between each conductor and other metal members connected in cable |
Between conductors |
Between conductor and metallic armor |
Between conductor and steel wire |
||
|
1.5 |
13.3 |
No less than 5,000 |
5 |
5 |
3 |
|
2.5 |
7.98 |
||||
|
4.0 |
4.95 |
||||
|
5.0 |
3.88 |
||||
|
6.0 |
3.30 |
||||
|
8.0 |
2.47 |
||||
