Multi-Purpose Break-out Fiber Optic Cable

The Multi-Purpose Break-out Fiber Optic Cable from Orientalfiber is an engineered solution for high-density indoor environments and backbone distribution systems. Manufactured by Jiangsu Xuben Photoelectric Technology Co., Ltd, this cable integrates multiple individual subunits into a single robust structure, allowing for direct termination without the need for additional patch panels or transition hardware. As a primary choice for telecommunications operators and data center installers, our Multi-Purpose Break-out Fiber Optic Cable balances mechanical strength with flexible routing capabilities, ensuring long-term signal stability in complex network architectures.

Structural Design: Engineering for Direct Termination

The core architecture of the Multi-Purpose Break-out Fiber Optic Cable is designed to simplify the installation process while maximizing fiber protection. Unlike standard distribution cables, the break-out design treats each fiber as an independent entity within the larger cable.

Sub-unit Construction: Each individual fiber is protected as a Φ900μm tight-buffered unit surrounded by high-strength aramid reinforcement elements.

Central Strength Member: A non-metallic Fiber Reinforced Plastic (FRP) core serves as the central anchor, providing the necessary rigidity to prevent kinking during vertical or horizontal pulls.

Layer-Twisted Core: The subunits are precision-twisted around the FRP, a layer-twisted cable structure that significantly enhances the cable's ability to withstand tensile loads during installation.

Jacket Options: To meet diverse building codes, the outer sheath is available in Polyvinyl Chloride (PVC) or Low-Smoke Zero-Halogen (LSZH) materials, ensuring compliance with flame-retardant requirements.

Characteristics

Layer-twisted cable structure and non-metallic center reinforcement core enable the cable to withstand greater tension

The outer material of multi-purpose break-out fiber optic cable is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Aramid yarn as strength member make cable have excellent tensile strength

Applications

Indoor any purpose cable distribution

Backbone distribution cable

Standards

Meet the standards of YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc. In addition to ordinary PVC products, there are also products that have passed UL OFNR certification; LSZH products use different materials to meet IEC60332-1 or IEC60332-3C.

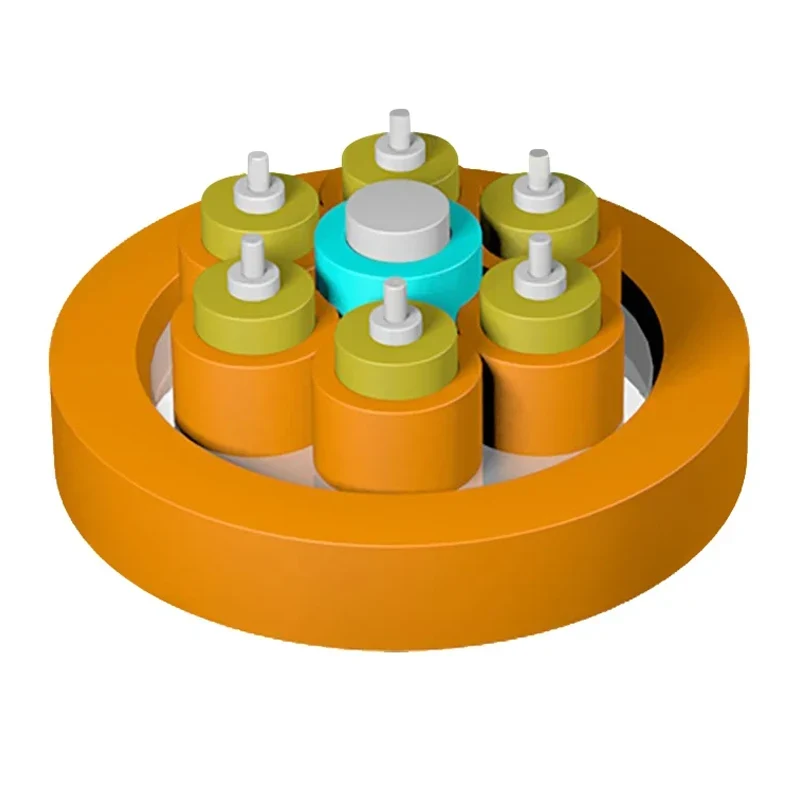

Structure Drawing

1.Tight Buffer Fibre

2.Aramid Yarn

3.FRP Strength Member

4.Subunit Jacket

5.Jacket

Technical Parameters

Optical Characteristics

Strategic Advantages: Addressing Procurement and Installation Challenges

When sourcing the Multi-Purpose Break-out Fiber Optic Cable, procurement officers often prioritize total cost of ownership and ease of deployment. Orientalfiber focuses on three key value areas:

1. Significant Reduction in Labor Costs

Because each subunit of the Fiber Optic Cable is effectively its own ruggedized jumper, technicians can strip the outer jacket and route individual fibers directly to equipment. This eliminates the need for splicing into pigtails, reducing both the time spent on-site and the risk of splice-related signal loss.

2. Reliability in Vertical and Horizontal Backbones

Aramid yarn as a strength member gives the cable excellent tensile strength, making it suitable for riser applications in multi-story office centers or industrial facilities. The non-metallic center reinforcement core ensures the cable remains lightweight and immune to electromagnetic interference, which is critical for industrial front-end connections in power grids and rail transit.

3. Environmental and Safety Compliance

The outer material of the Multi-Purpose Break-out Fiber Optic Cable is engineered to be corrosion-resistant, waterproof, and UV-resistant. By offering UL OFNR certified PVC and IEC60332-1/3C compliant LSZH options, we ensure that your infrastructure meets the most stringent fire safety standards for indoor any purpose cable distribution.

Manufacturing Excellence and Quality Assurance

Jiangsu Xuben Photoelectric Technology Co., Ltd maintains a 15,000 square meter production base with four specialized factories. Our commitment to refined manufacturing is validated by:

Annual Output: A production capacity valued at 20 million US dollars, ensuring stable lead times for large-scale engineering projects.

Certified Standards: Our group holds ISO9001 and ISO45001 certifications. The Multi-Purpose Break-out Fiber Optic Cable specifically adheres to YD/T 1258.4, ICEA-596, GR-409, and IEC 60793 standards.

Verified Performance: Every batch undergoes rigorous testing for tensile strength, crush resistance, and attenuation uniformity before leaving the factory.

Key Application Scenarios

The versatility of the Multi-Purpose Break-out Fiber Optic Cable makes it indispensable for:

Data Center Interconnects: High-density wiring between server racks and main distribution areas.

Campus Backbone Distribution: Connecting multiple communication closets across large institutional sites.

Industrial Networks: Providing robust fiber links in highways and electrical power stations where durability is non-negotiable.

Indoor Distribution: General-purpose horizontal cabling where fibers must be broken out to individual wall outlets.

Frequently Asked Questions (FAQ)

What is the primary difference between a Break-out cable and a Distribution cable?

In a distribution cable, fibers are bundled under a single jacket. In the Multi-Purpose Break-out Fiber Optic Cable, each fiber has its own individual jacket and aramid strength members. This allows the fibers to be handled like patch cords once the main outer jacket is removed, providing superior mechanical protection at the termination point.

Does Orientalfiber provide customized jacket colors or fiber counts?

Yes. As part of the Jiangsu Xuben Photoelectric Technology Co., Ltd group, our indoor optical fiber cable factory can customize the Multi-Purpose Break-out Fiber Optic Cable to meet specific project requirements, including fiber counts (typically 2 to 48 cores) and specific flame-retardant ratings.

Is this cable suitable for use in cable trays with high moisture?

While designed primarily for indoor use, the outer material of our Multi-Purpose Break-out Fiber Optic Cable is moisture-resistant and corrosion-resistant, making it suitable for use in typical building basements or climate-controlled industrial tunnels
