| Customer PN: | 1000053203 | Rev: | A.1 |
| Approved by: | C.C | Date: | 07/10/2024 |
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.
● Telecommunication Networks
● Local Area Networks (LANs)
● Communication System
● Premise Installations
● Wide Area Networks (WANs)
● Video Transmission
● Connections Between Patch cords
● FTTX, CATV
● Connections Between Devices
● Compliancy RoHS
● Single-piece body

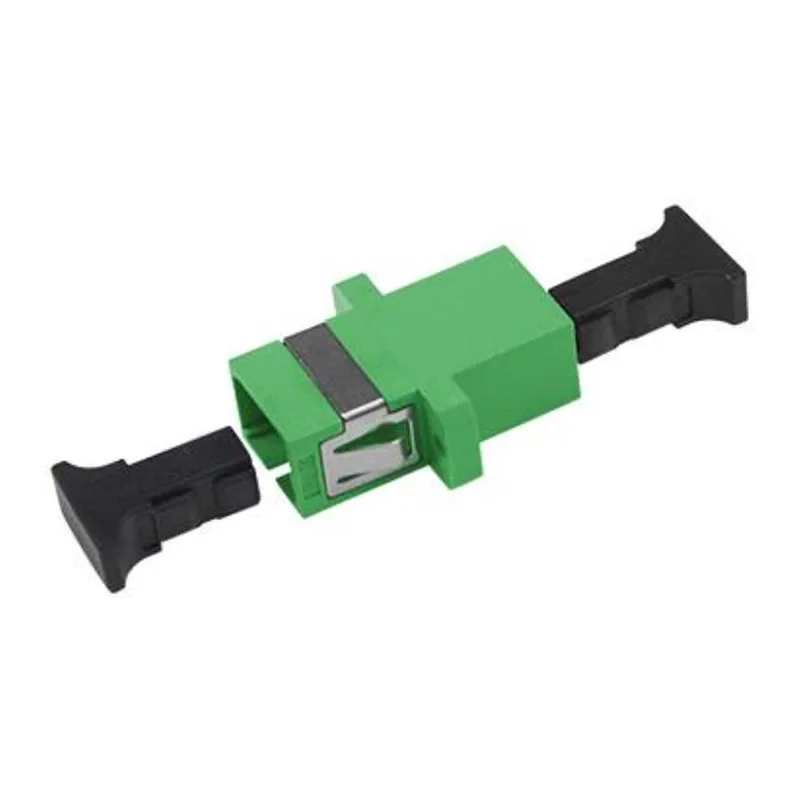

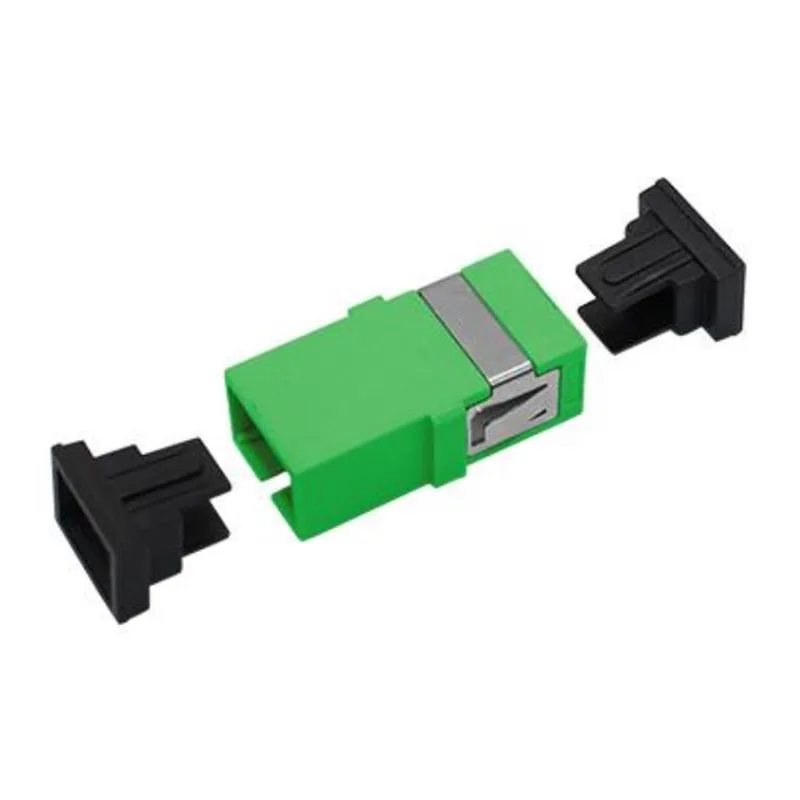

| Parameter | SC/ APC Adaptor |
| Body Style | Simplex |
| Connector Fiber Mode | Single mode |
| Color | Green |
| Sleeve Material | Ceramic |
| Insertion Loss | ≤0.2dB |
| Alternation Loss | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Durability | The change of 1000 interpolation times is less than 0.2dB |

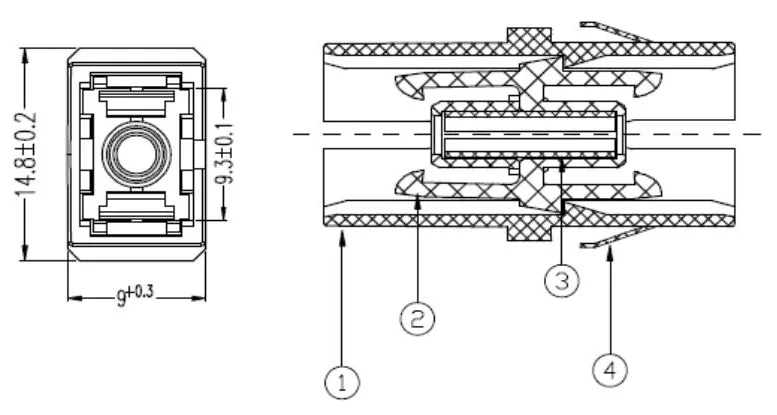

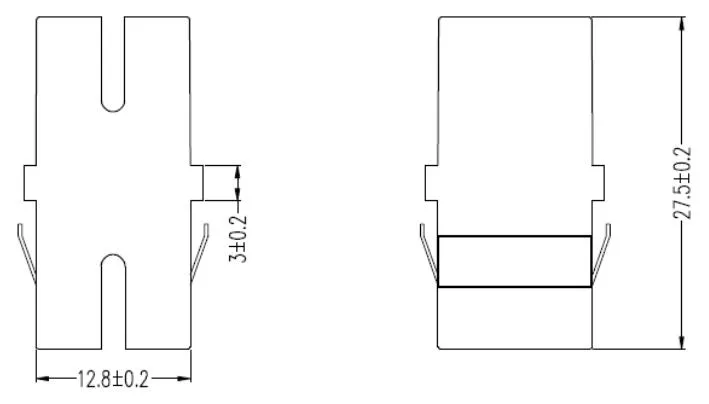

| Package Dimension (L)×(W)×(H) | 27.5x14.8x9 mm |
| Working Temperatures | -40~85°C |
| Storage Temperature | -40~85°C |
