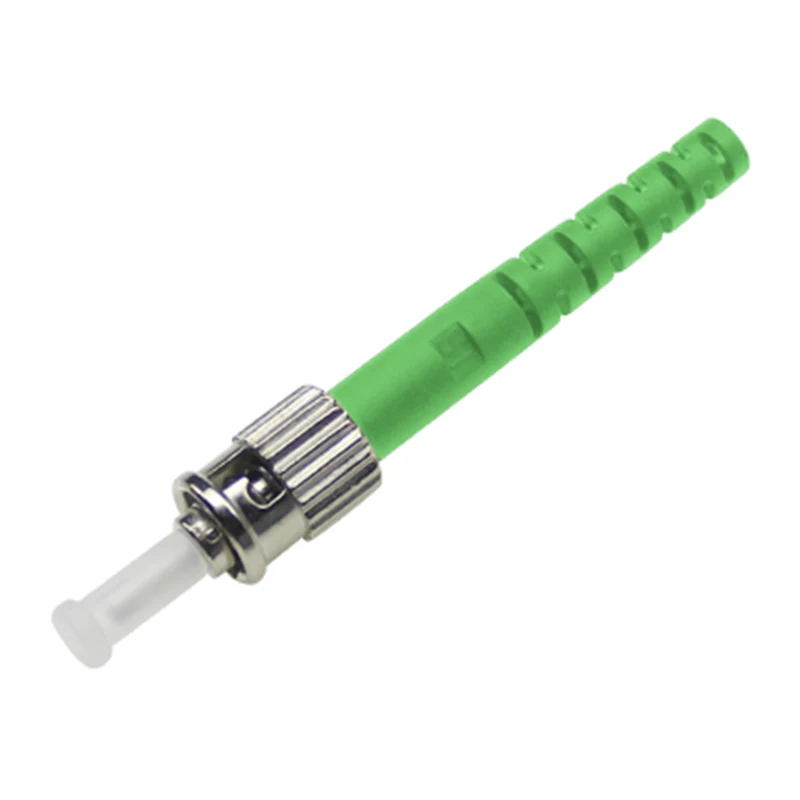

ST APC 2.0mm/3.0mm Connector

Fiber Count: SimplexInsertion Loss: ≤0.25dBFiber Mode: Single ModeReturn Loss: ≥60dB (APC)Polish Type: APCDurability: >1000timesCable Diameter: 2.0mm/3.0mmOperating Temp:-40~85°CSpecificationParameterST2.0mm/3.0mm ConnectorSMMMPCUPCAPCPCInsertionloss≤0.25dB≤0.25dB≤0.25dB≤0.25dBReturnloss≥50d......

Send Inquiry

Product Description

Fiber Count: Simplex

Insertion Loss: ≤0.25dB

Fiber Mode: Single Mode

Return Loss: ≥60dB (APC)

Polish Type: APC

Durability: >1000times

Cable Diameter: 2.0mm/3.0mm

Operating Temp:-40~85°C

Specification

Parameter	ST 2.0mm/3.0mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

ST APC 2.0mm/3.0mm Connector
