UAV Fiber Optic Roll 5KM G657A2

Our high quality UAV Fiber Optic Roll 5KM G657A2 are all made in China. Orientalfiber is a professional the UAV Fiber Optic Roll 5KM G657A2 manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Orientalfiber UAV Fiber Optic Roll 5KM G657A2 is engineered to support stable, long-distance data transmission for unmanned aerial vehicle (UAV) systems. Built with G.657A2 single-mode optical fiber, this 5KM reel delivers reliable signal performance with minimal loss, making it suitable for a wide range of UAV applications, from industrial inspection to long-range communication links. The compact, lightweight design ensures easy portability and deployment in field environments, while the high-tensile fiber construction provides resilience against the stresses of aerial operations.

Key Design & Performance Features

Low Attenuation for Long-Distance Transmission

The fiber optic roll uses G657A2 single-mode fiber, which is optimized for low signal loss across common communication wavelengths. At 1310nm, the attenuation is ≤0.35 dB/km, with a typical value of 0.329 dB/km; at 1550nm, the attenuation is ≤0.25 dB/km, with a typical value of 0.185 dB/km. This low-loss performance ensures stable data transmission over the full 5KM length, supporting high-bandwidth communication for UAV systems without signal degradation.

Lightweight & Compact for UAV Compatibility

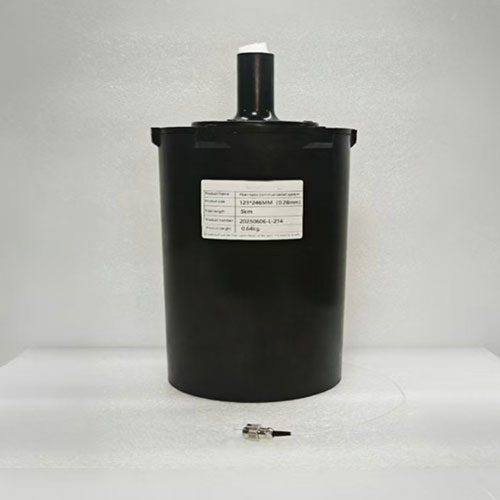

With a unit weight of just 80g/km, the total weight of the 5KM fiber is only 400g, paired with a compact ABS black reel that measures 121*246mm and weighs 650g. This lightweight, space-saving design minimizes the load on UAV platforms, allowing for extended flight times and easier maneuverability during deployment. The reel’s durable ABS housing protects the fiber from physical damage during transport and field use.

Durable Construction for Harsh Environments

The fiber features a 0.28mm outer diameter (±0.01 tolerance) with a resinous sheath material, providing high tensile strength and resistance to bending, abrasion, and environmental stress. It operates reliably across a wide temperature range of -40°C to +85°C, making it suitable for use in extreme weather conditions, from cold mountainous regions to hot industrial sites. The tight packet is invisible transparent, ensuring the fiber remains protected while maintaining consistent optical performance.

Standardized Interface for Easy Integration

The fiber optic roll comes with an FC optical interface, a widely used standard in fiber optic networks. This interface ensures seamless compatibility with most UAV communication systems, fiber optic transceivers, and network equipment, simplifying installation and integration into existing setups without the need for specialized adapters.

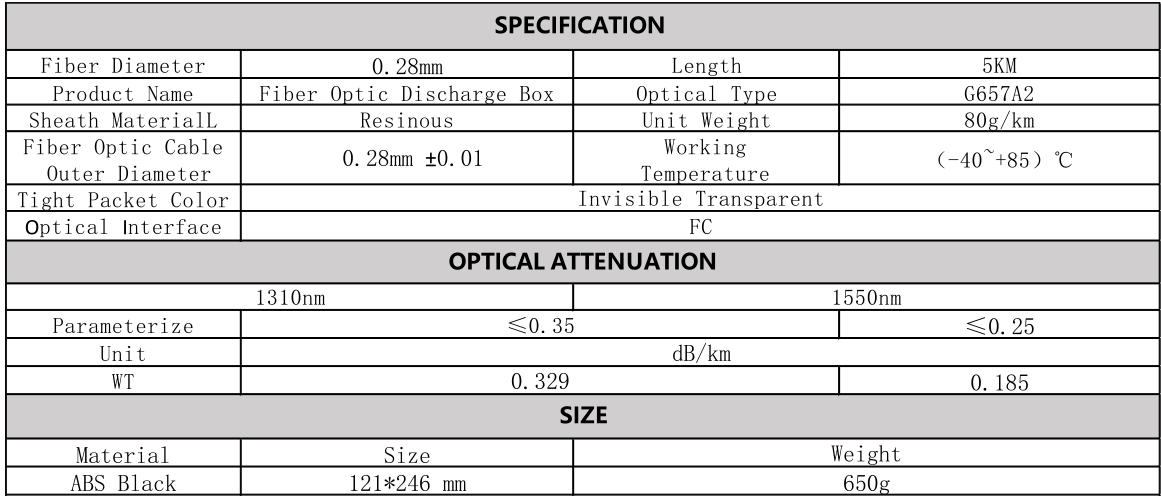

Technical Specifications Highlights

The UAV Fiber Optic Roll 5KM G657A2 is built to meet strict industry standards, with verified performance metrics that ensure consistent quality. The fiber diameter is 0.28mm, with a tight packet in invisible transparent color for reliable protection. The resinous sheath material adds durability while keeping the overall weight low, and the 5KM length provides sufficient reach for most long-range UAV communication needs. All components are manufactured under rigorous quality control processes to ensure long-term reliability.

Application Scenarios

This fiber optic roll is suitable for a variety of professional UAV operations and industrial applications:

• Industrial UAV Inspection: Supports real-time data transmission for power line, pipeline, and infrastructure inspection drones, ensuring clear, uninterrupted video and sensor data transfer.

• Long-Range UAV Communication: Provides stable, high-bandwidth links for UAVs operating at extended distances, ideal for search and rescue, border patrol, and large-scale surveying missions.

• Field Network Deployment: Used for temporary or permanent fiber optic network setup in remote areas, disaster recovery sites, and outdoor events, where UAV-assisted deployment speeds up installation.

• Industrial Communication Systems: Integrated into fiber optic networks for rail transit, highways, and power grids, supporting reliable data transmission in harsh industrial environments.

About Orientalfiber & Jiangsu Xuben Photoelectric Technology Co., Ltd.

Orientalfiber is a brand under Jiangsu Xuben Photoelectric Technology Co., Ltd., a group company with four specialized factories covering indoor optical fiber cable, outdoor optical fiber cable, ODN optical components, and optical network equipment production. With an annual output value of 20 million US dollars and a total production area of 15,000 square meters, the company has the capacity to deliver complete fiber optic network solutions to customers worldwide.

Our products are widely used by domestic and foreign telecommunications operators, radio and television communication systems, local area networks, and industrial front-end connections in power, rail transit, and highway industries. Through years of refined manufacturing and professional production, we have obtained ISO9001 quality management system certification and ISO45001 occupational health and safety management system certification. Our products are sold globally, trusted by customers for their consistent quality, and widely applied in various large and medium-sized engineering projects.

Frequently Asked Questions (FAQ)

Q: What is the difference between G657A2 and other fiber types?

A: G657A2 fiber is a bend-insensitive single-mode fiber, designed to have lower bending loss compared to standard G652D fiber. This makes it ideal for applications where the fiber may be bent or coiled, such as on UAV reels, ensuring stable signal performance even with tight bends.

Q: Can this fiber optic roll be used with different UAV models?

A: Yes, the standard FC interface and lightweight design make this roll compatible with most professional UAV models that support fiber optic communication systems. It can be integrated into existing UAV communication setups with minimal configuration.

Q: What is the maximum operating temperature range?

A: The fiber optic roll operates reliably in temperatures from -40°C to +85°C, making it suitable for use in a wide range of environmental conditions, from extreme cold to high heat.

Q: How is the fiber protected during transport and use?

A: The fiber is housed in a durable ABS black reel that protects it from physical damage, dust, and moisture during transport and field deployment. The resinous sheath on the fiber itself adds an extra layer of protection against abrasion and bending stress.

Q: Do you offer custom lengths or interface types?

A: Yes, we can provide custom lengths and alternative interface types to meet specific project requirements. Please contact our sales team for more information on custom solutions.

Why Choose This UAV Fiber Optic Roll

When selecting a fiber optic solution for UAV operations, reliability, weight, and performance are critical. This product delivers on all three fronts, with low signal loss, a lightweight design that reduces UAV load, and a durable build that withstands field conditions. Backed by Orientalfiber’s manufacturing expertise and Jiangsu Xuben Photoelectric Technology’s quality assurance, this fiber optic roll is a trusted choice for professional UAV operators and industrial network deployments worldwide.
