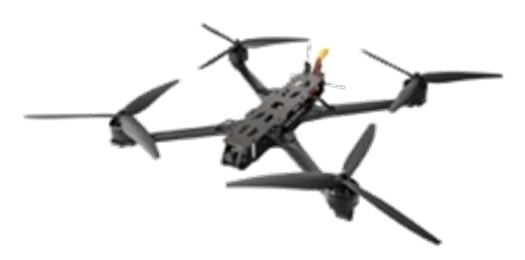

13-inch UAV

The 13-inch UAV is a standard product that can be equipped with a 20 km fiber-optic drum plus 3 kg payload, or use wireless control for 6~7 kg payload. It uses a cost-effective 20000mAh Li-ion battery, providing up to 20 minutes flight time at maximum load. The UAV adopts high-reliability electronic components and other parts with waterproof coating on surfaces; the airframe is rugged and can operate in harsh environments, ensuring mission success.

Send Inquiry

Product Description

Our high quality 13-inch UAV are all made in China. Orientalfiber is a professional the 13-inch UAV manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Basic Information

Item	Specification
Flight Firmware	Betaflight 4.4.3
Top Plate Thickness	3 mm
Middle Plate Thickness	3 mm
Bottom Plate Thickness	3 mm
Frame Material	T300 carbon fiber
Arm Thickness	8 mm
Wheelbase	430 mm
Weight	1860 g
Control Frequency	915 MHz
Video Frequency	4.9 – 6.2 GHz
Control Range	20 km
Recommended Payload	6 kg
Max Payload	7 kg
Max Speed	150 km/h
Max Ascent Speed	20 m/s
Max Descent Speed	25 m/s
Max Flight Altitude	6000 m
Operating Temperature	-20 °C to +45 °C
Max Wind Resistance	15 m/s
Recommended Battery	20000mAh Li-ion battery

Electrical Parameters

Item	Specification
Max Input Voltage	35.6 V
Min Input Voltage	22.2 V
Recommended Input Voltage	35.6 V
Max Current (per motor)	79 A
Max Power (per motor)	1990 W

Hardware List

Item	Specification
Frame	13-inch SE version
Flight Controller	STM32F405 ICM42688P FC
ESC	AM32 100 A 4-in-1 ESC
Motor	4214 660 kV
Camera	Night-vision 1500 TVL
VTX	4.9-6.2 GHz 3 W
GPS	M10 GPS with compass
Receiver	ELRS 915 MHz
Antenna	4.9-6.2 GHz 150 mm RHCP SMA
Propeller	1309-3 blades
Airborne Fiber Terminal	Optional
