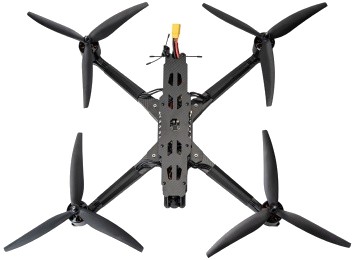

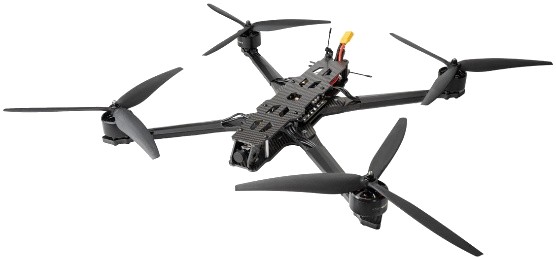

15-inch UAV

The 15-inch UAV is a high-reliability UAV platform developed for long-range flight and medium payload. Its airframe uses ultra-high-strength T300 carbon fiber, giving the entire fuselage extremely low resonance and excellent stability. Combined with high-performance electronic components, it is capable of executing complex missions.

Our high quality 15-inch UAV are all made in China. Orientalfiber is a professional the 15-inch UAV manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.






The 15-inch UAV is a high-reliability UAV platform developed for long-range flight and medium payload. Its airframe uses ultra-high-strength T300 carbon fiber, giving the entire fuselage extremely low resonance and excellent stability. Combined with high-performance electronic components, it is capable of executing complex missions.



Basic Information

Item
Specification

Flight Firmware

 Betaflight 4.4.3

Top Plate Thickness

3 mm

Middle Plate Thickness

4 mm

Bottom Plate Thickness

4 mm

Frame Material

T300 carbon fiber

Arm Thickness

9 mm
Wheelbase
650 mm
Weight
2850 g

Control Frequency

915 MHz

Video Frequency

4.9 – 6.2 GHz

Control Range

20 km

Recommended Payload

8 kg

Max Payload

10 kg

Max Speed

130 km/h

Max Ascent Speed

15 m/s

 Max Descent Speed

15 m/s

Max Flight Altitude

 6000 m

Operating Temperature

-20 °C to +45 °C

Max Wind Resistance

15 m/s

Recommended Battery

 35000mAh  Li-ion battery


Electrical Parameters

Item
Specification

 Max Input Voltage

33.6 V

Min Input Voltage

21.6 V

Recommended Input Voltage

33.6 V

Max Current (per motor)

90 A

Max Power (per motor)

3020 W


Hardware List

Item
Specification
Frame
15-inch SE version

Flight Controller

STM32F405 ICM42688P FC

ESC

BLS 4-8S continuous 120A (burst 150A) 4IN1 ESC

Motor
4720 480 kV
Camera
Night-vision 1500 TVL
VTX
4.9-6.2 GHz 3 W
GPS
None
Receiver
ELRS 915 MHz
Antenna

4.9-6.2 GHz 150 mm RHCP SMA

Propeller
1507 -3 blades

Airborne Fiber Terminal

Optional


Optional Kit

  • 256×192 thermal imager, 640×512 thermal imager
  • 10–20 km fiber-optic tether system
  • Custom-frequency receiver / VTX
  • Dual-band video transmitter
