Small size: The outer diameter is only 2.6~2.8mm, and a 500-meter assembly only requires a Φ30cm cable reel, which is much smaller than traditional optical cables;
Light weight: The net weight of the optical cable is less than 8.5KG/km, and the standard 1000-meter component with cable drum does not exceed 14KG, which is more than half lighter than the traditional double-layer cable;
High strength: The optical cable is armored with tiny soft steel tubes and uses a large amount of high modulus aramid, which can withstand a tensile strength of more than 1000N and a compressive strength of more than 5000N/10CM;
Low attenuation: The optical cable adopts advanced technology and special anti-bending single-mode optical fiber, equipped with high-precision field connectors, which can connect up to 20KM links at a time, with an attenuation value of less than 20dB;
Large transmission capacity: Compared with traditional optical cables, optical fiber carries more than 100 times the amount of data and can directly transmit high-definition video.

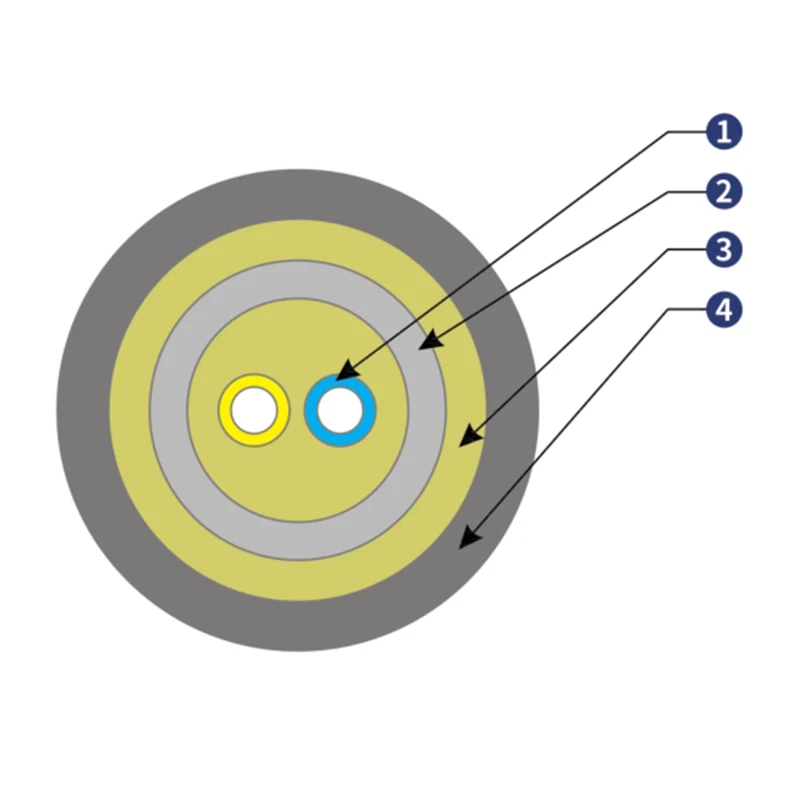

1. Colored optical fiber
2. Spiral armor
3. Aramid fiber
4. Outer sheath
|
Fiber Core |
Outer Diameter (mm) |
Tensile Strength |
Crush Resistance |
Min. Bending Radius |
General Attenuation (with connector) (dB/km) |
Applicable Temperature Range (℃) |
Net Weight (include drum) (kg/500m) |
||||
|
Long Term (N) |
Short Term (N) |
Long Term (N/100mm) |
Short Term (N/100mm) |
Static (mm) |
Dynamic (mm) |
1310nm |
1550nm |
||||
|
1-2 |
2.5 |
800 |
1500 |
3000 |
5000 |
30 |
60 |
≤0.45 |
≤0.35 |
-40~85℃ |
≤7.5 |
|
1-2 |
2.8 |
800 |
1500 |
3000 |
5000 |
30 |
60 |
≤0.45 |
≤0.35 |
-40~85℃ |
≤9.0 |
|
4 |
3.0 |
800 |
1500 |
3000 |
5000 |
30 |
60 |
≤0.45 |
≤0.35 |
-40~85℃ |
≤12 |
|
6 |
3.5 |
800 |
1500 |
3000 |
5000 |
30 |
60 |
≤0.45 |
≤0.35 |
-40~85℃ |
- |
