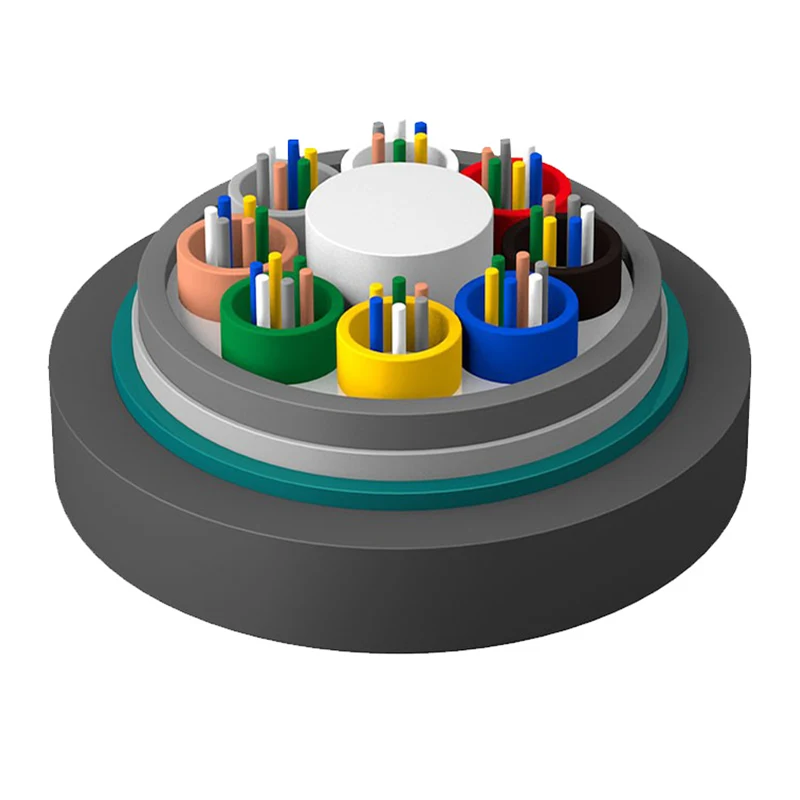

The structure of the GYDTA optical cable is to insert 4, 6, 8, and 12-core optical fibers into a loose tube made of high modulus material, and fill the loose tube with waterproof compounds. The center of the cable core is a metal reinforcing core. For some cable cores with certain numbers of cores, an additional layer of polyethylene (PE) needs to be extruded outside the metal reinforcing core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core. The gaps within the cable core are filled with water-resistant fillers. The coated aluminum tape (APL) is longitudinally wrapped, and then a polyethylene sheath is extruded to form the cable.

The bottom shell and the top cover of this wall-mounted pre-connectorized fiber optic cable distribution box are fixed with screws and are removable. It is made of PP, which is moisture-proof, waterproof, dust-proof, and anti-aging, with a protection level of up to IP68.

The structure of uni-tube non-metallic 73 sheath light-weight lighting anti-rodent fiber optic cable is to put single-mode optical fiber or multi-mode optical fiber into a loose tube made of high modulus polyester material, and the tube is filled with waterproof compound. Water-blocking material is added to the loose tube to ensure the waterproof performance of the optical cable. The loose tube is wrapped with FRP rod, and a layer of polyethylene inner sheath is extruded on the cable core. After the FRP belt is longitudinally wrapped, a polyethylene outer sheath is extruded to form a cable.
