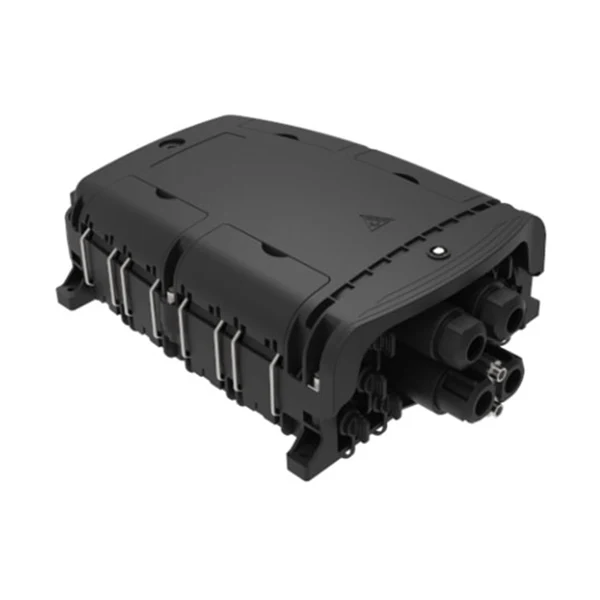

● Advanced structure design, easy operation and reasonable routing.
● Material: PP.
● Moisture proof, waterproof, dust-proof, anti-aging.
● Protection level up to IP68.

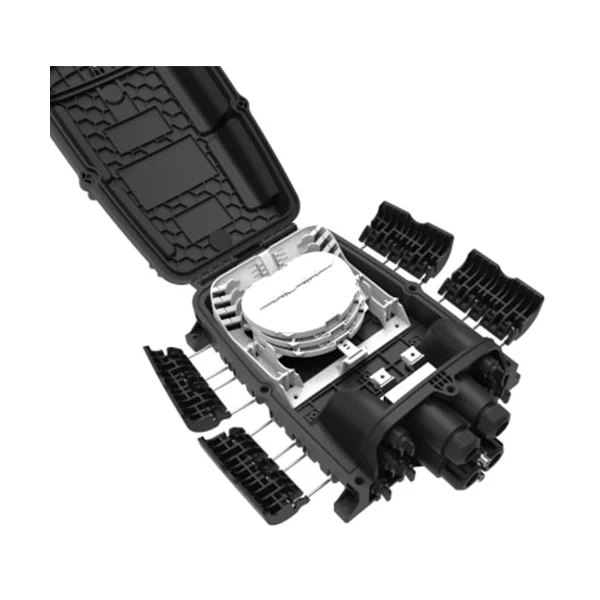

● 1 oval optical cable entry, 2 branch optical cable entries and 8 pre-connected adapters.
● Various types of splice trays are available.
● Installation method: pole-mounted, aerial-mounted, wall-mounted.
Waterproof pre-connectorized fiber optic cable distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
The product is designed, manufactured and tested according to the standards as follows:
|
ITU-T G.652 |
Characteristics of a single-mode optical fibre |
|
IEC 60794-1-1 |
Optical fibre cables-part 1-1: Generic Specification-General |
|
IEC 60794-1-2 |
Optical fibre cables-part 1-2: Generic Specification-Basic optical cable test procedure |
|
Model: XB-8QX |
Specifications |
Remark |
|

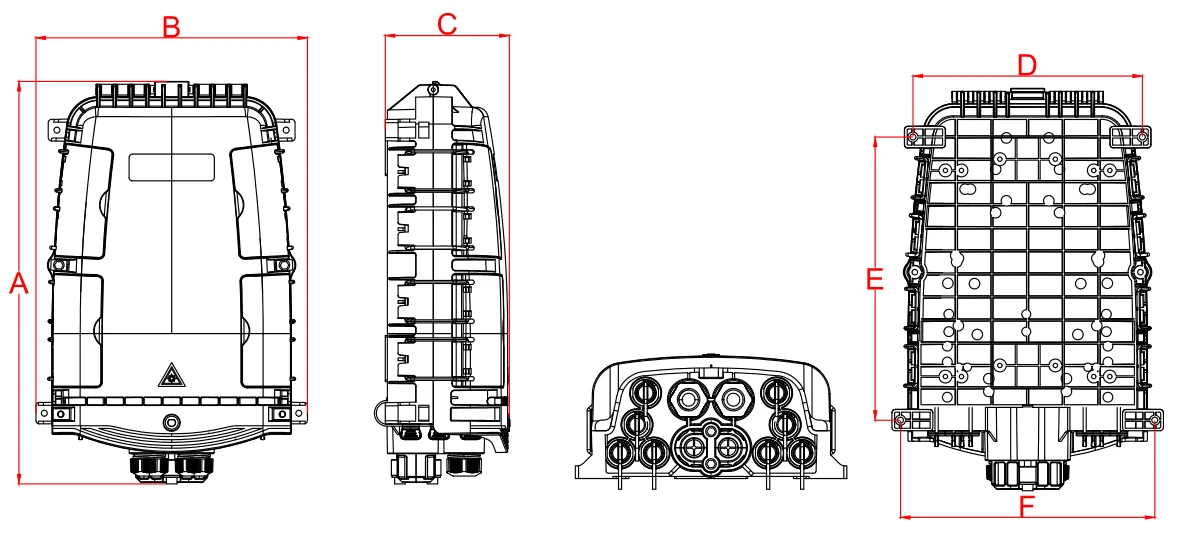

External dimension(mm) |
378*255*116(A*B*C) |
|
|
Installation hole position(mm) |
215*266*239(D*E*F) |
|
|
Color |
Black |
Customizable |
|
Size and quantity of optical cable hole |
1 oval optical cable entry, 2 branch optical cable entries and 8 pre-connected adapters |
|
|
Fusion capacity (Max) |
48 |
Tray A ,12x4=48, 2 layers of heat-shrinkable splice protection sleeve. |
|
96 |
Tray C, 12x8=96, 1 layer of heat-shrinkable splice protection sleeve. |
|
|
96 |
Tray D, Tray E, 24x4=96, 2 layers of heat-shrinkable splice protection sleeve. |
|
|
128 |
Tray F, 16x8=128, 1 layer of heat-shrinkable splice protection sleeve. |
|
|
136 |
Max=1E+7F=24+7*16=136 |
|
|
Micro PLC Splitter |
1x2 |
Splitter size: 60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing tray. |
|
1x4 |
||
|
1x8 |
||
|
1*16 |
Splitter size: 60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray. |
|
|
Fiber cable diameter of the uncut pass through port(mm) |
Φ18 |
* Note: Provide the type and diameter of the optical cable when purchasing, to matching the appropriate sealing plug to ensure the sealing performance. |
|
Fiber cable dimension of branch cable port (mm) |
Φ18 |
|
|
IP protection level |
IP68 |
|
|
Flammability |
HB(Conventional) |
can be customized according to requirements |
|
Neutral salt spray test (NSS) |
48 h |
