● Advanced structure design, easy operation and reasonable routing.
● Material: PC+ABS.
● Moisture proof, waterproof, dust-proof, anti-aging.
● Protection level up to IP65.
● 8 cable entry.
● Installation method: aerial-mounted.

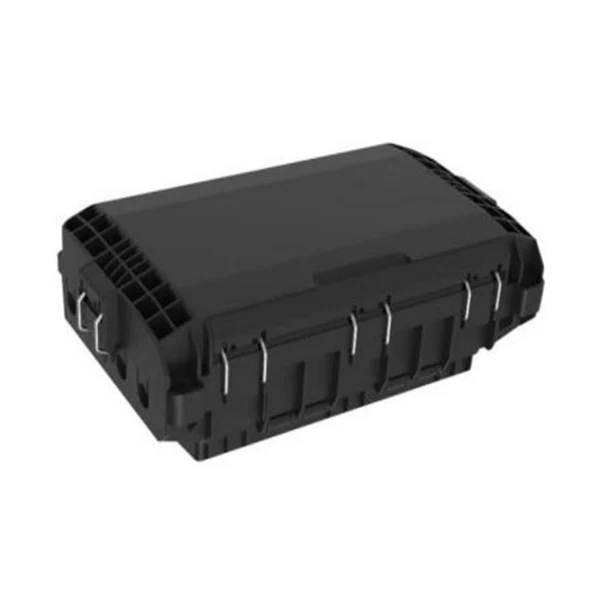

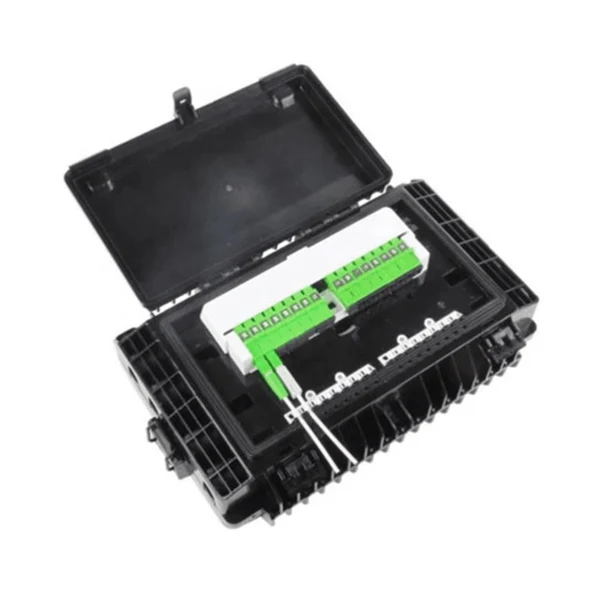

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
The PC ABS material optical fiber cable distribution box is designed, manufactured and tested according to the standards as follows:
|
ITU-T G.652 |
Characteristics of a single-mode optical fibre |
|
IEC 60794-1-1 |
Optical fibre cables-part 1-1: Generic Specification-General |
|
IEC 60794-1-2 |
Optical fibre cables-part 1-2: Generic Specification-Basic optical cable test procedure |
|
Model: XB-16T |
Specifications |
Remark |
|
External dimension(mm) |
340*204*123.5(A*B*C) |
|
|
Color |
Black |
|
|
Size and quantity of optical cable hole |
8 cable entry |
|
|
Fusion capacity (Max) |
25 cores |
Tray A 1 layers of heat-shrinkable splice protection sleeve. |
|
Micro PLC Splitter |
4 x 1:8micro splitter |
Splitter size: 60x7x4mm. |
|
Into the largest cable diameter (mm) |
ᴓ7~16 |
|
|
Cable outlet size(mm) |
2*3 |
|
|
IP protection level |
IP65 |
|
|
Flammability |
HB(Conventional) |
Can be customized according to requirements |
|
Neutral salt spray test (NSS) |
48 h |
