● Advanced structure design, easy operation and reasonable routing.
● Material: PP or PC+ABS.
● Moisture proof, waterproof, dust-proof, anti-aging.
● Protection level up to IP65.
● 1 oval optical cable entry, 2 branch optical cable entries and 8 pre-connected adapters.
● Various types of splice trays are available.
● Installation method: pole-mounted, aerial-mounted, wall-mounted.
● It can be equipped with drop cable storage tray to meet the storage of 50 meters 5mm round cable.

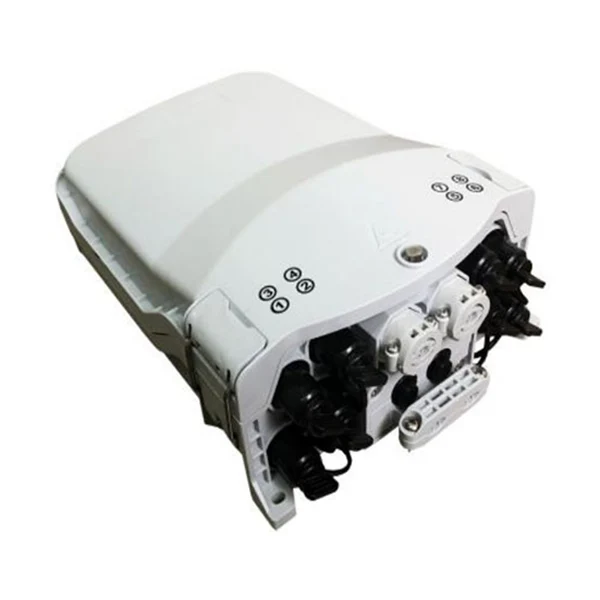

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
The IP65 pre-connectorized fiber optic cable distribution box is designed, manufactured and tested according to the standards as follows:
|
Model: XB-8SX |
Specifications |
Remark |
|
Material of housing |
PC+ABS |
|
|
Material of internal components |
PC+ABS/ABS |
|
|
Material of metal accessory |
High-quality stainless steel |
|
|

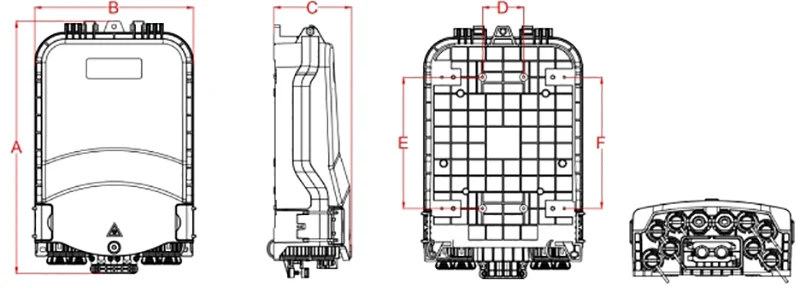

External dimension(mm) |
319.3*200*97.5 (A*B*C) |
|
|
Installation hole position(mm) |
52*166*166 (DxExF) |
|
|
Color |
PANTONE 428C |
Customizable |
|
Size and quantity of optical cable hole |
1 oval optical cable entry, 2 branch optical cable entries and 8 pre-connected adapters |
|
|
Fusion capacity(Max) |
48 |
Tray A ,12x4=48, 2 layers of heat-shrinkable splice protection sleeve. |
|
64 |
Tray B, 8x8=64, 1 layer of heat-shrinkable splice protection sleeve. |
|
|
96 |
Tray C, 8x12=96, 1 layer of heat-shrinkable splice protection sleeve. |
|
|
96 |
Tray D, Tray E, 24x4=96, 2 layers of heat-shrinkable splice protection sleeve. |
|
|
108 |
Max:1C+4D=108 |
|
|
Micro PLC Splitter |
1x2 |
Splitter size：60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing tray. |
|
1x4 |
||
|
1x8 |
||
|
1*16 |
Splitter size：60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray. |
|
|
Fiber cable diameter of the uncut pass through port(mm) |
Φ8~Φ18 |
|
|
Fiber cable dimension of branch cable port (mm) |
Φ16 |
|
|
IP protection level |
IP65 |
|
|
Flammability |
HB(Conventional) |
can be customized according to requirements |
|
Neutral salt spray test (NSS) |
48 h |
