48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box

The 48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box by Orientalfiber is a professional-grade solution designed to streamline FTTX network deployments. As a flagship product of Jiangsu Xuben Photoelectric Technology Co., Ltd , this distribution box integrates fiber splicing, splitting, and terminal connection into a single, high-durability enclosure.

Send Inquiry

Product Description

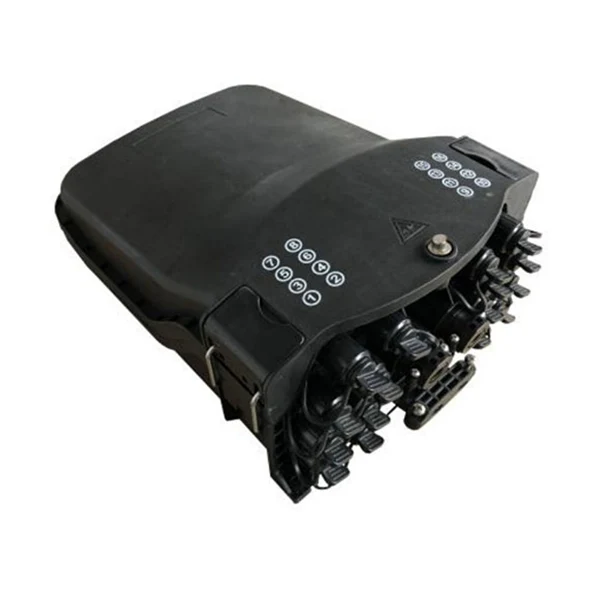

The 48-Core Pre-connectorized Fiber Optic Cable Distribution Box is designed specifically for outdoor telecommunications engineering scenarios. Developed in accordance with the engineering standards of the Chinese manufacturer Orientalfiber, it places a primary focus on structural reliability and long-term operational stability. The product enclosure is constructed from high-strength PP or PC+ABS materials, offering robust resistance to water, dust, and aging. With an IP65 protection rating, it ensures the stability of internal fiber optic connections even within complex and demanding environments. The internal structure has been optimized to facilitate effective fiber bend radius management and orderly cable routing; it features pre-connectorized adapters and supports various splicing tray configurations, thereby enhancing installation efficiency and simplifying maintenance procedures. Supporting multiple installation methods—including pole mounting, aerial deployment, and wall mounting—this distribution box is ideally suited for FTTH applications and a wide range of outdoor fiber optic network deployment requirements.

Engineering Specifications and Material Integrity

For outdoor telecommunications infrastructure, material longevity is critical. The Orientalfiber 48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box is engineered to withstand diverse environmental stressors without degradation.

Housing Materials: Constructed from high-impact PP (Polypropylene) or PC+ABS (Polycarbonate and Acrylonitrile Butadiene Styrene) blends for superior mechanical protection.
Environmental Resilience: Engineered to be moisture-proof, waterproof, dust-proof, and anti-aging.
Ingress Protection: The protection level reaches IP65, ensuring internal components remain dry and functional during heavy rain or high-humidity conditions.

Technical Architecture and Capacity Management

The internal layout of the 48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box focuses on bend radius protection and organized cable routing to prevent signal attenuation and maintenance fatigue.

Inlet/Outlet Configuration: Features 1 oval optical cable entry point and 2 branch cable entries, facilitating versatile backbone cable management.
Adapter Interface: Equipped with 16 pre-connected adapters, significantly reducing the time required for field installations and technician labor costs.
Splice Tray Options: Two distinct types of joint trays are available to accommodate different fusion splicing habits and fiber densities.
Drop Cable Storage: Designed to house an optional drop cable storage tray, capable of managing up to 50 meters of 5mm round cable, which is essential for maintaining site neatness in residential FTTH installations.

Versatile Deployment Scenarios

Orientalfiber ensures that the 48 Fibre Core Pre-connectorized Fiber Optic Cable Distribution Box adapts to existing infrastructure rather than requiring expensive modifications. Support for multiple mounting methods allows for consistent hardware usage across different terrains:

Pole-mounted: Optimized for rural or utility-pole based deployments.
Aerial-mounted: Suitable for overhead cable spans between buildings.
Wall-mounted: Designed for urban MDUs (Multi-Dwelling Units) or industrial building facades.

Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

Standards Comply

The 48 fibre core pre-connectorized fiber optic cable distribution box is designed, manufactured and tested according to the standards as follows:

ITU-T G.652	Characteristics of a single-mode optical fibre
IEC 60794-1-1	Optical fibre cables-part 1-1: Generic Specification-General
IEC 60794-1-2	Optical fibre cables-part 1-2: Generic Specification-Basic optical cable test procedure

Specifications

Model: XB-16SX	Specifications	Remark

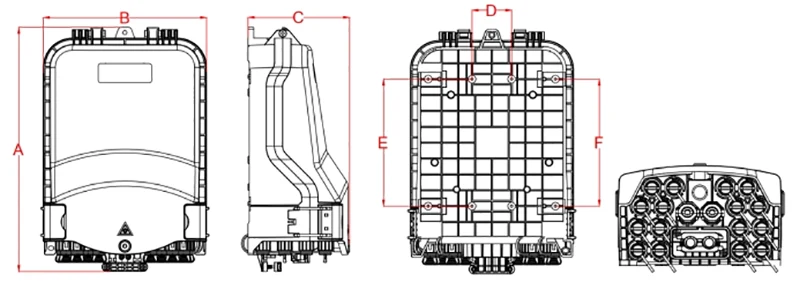

External dimension(mm)	319.3214133(ABC)
Installation hole position(mm)	52166166(DxExF)
Color	PANTONE 428C	Customizable
Size and quantity of optical cable hole	1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters
Fusion capacity (Max)	48	Tray A ,12x4=48, 2 layers of heat-shrinkable splice protection sleeve.
	64	Tray B, 8x8=64, 1 layer of heat-shrinkable splice protection sleeve.
	96	Tray C, 8x12=96, 1 layer of heat-shrinkable splice protection sleeve.
	96	Tray D, Tray E, 24x4=96, 2 layers of heat-shrinkable splice protection sleeve.
Micro PLC Splitter	1x2	Splitter size: 60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing tray.
	1x4
	1x8
	1*16	Splitter size: 60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray.
Into the largest cable diameter (mm)	ᴓ8~18
Maximum size of branch hole(mm)	ᴓ16
IP protection level	IP65
Flammability	HB(Conventional)	can be customized according to requirements
Neutral salt spray test (NSS)	48 h	can be customized according to requirements
