● The bottom shell and the upper cover are fixed with screws, removable.
● Material: PP.
● Moisture proof, waterproof, dust-proof, anti-aging.
● Protection level up to IP68.
● The interior is equipped with 1x2 FBT splitter+ 1x16 PLC splitter.
● Installation method: pole-mounted, aerial-mounted, wall-mounted.

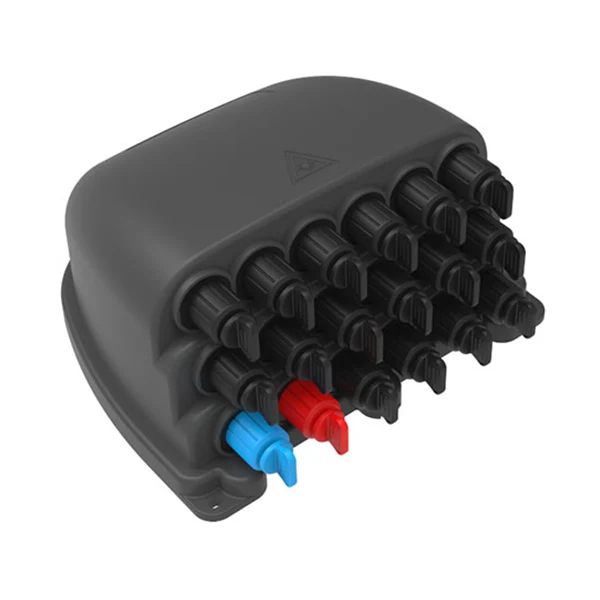

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
The pre-connectorized fiber optic cable distribution box with 1 16 PLC splitter is designed, manufactured and tested according to the standards as follows:
|
ITU-T G.652 |
Characteristics of a single-mode optical fibre |
|
IEC 60794-1-1 |
Optical fibre cables-part 1-1: Generic Specification-General |
|
IEC 60794-1-2 |
Optical fibre cables-part 1-2: Generic Specification-Basic optical cable test procedure |
|
Model: XB-18BYK |
Specifications |
Remark |
|
Material of housing |
Modified PP plastic or PC+ABS |
|
|
Material of metal accessory |
High-quality stainless steel |
|
|

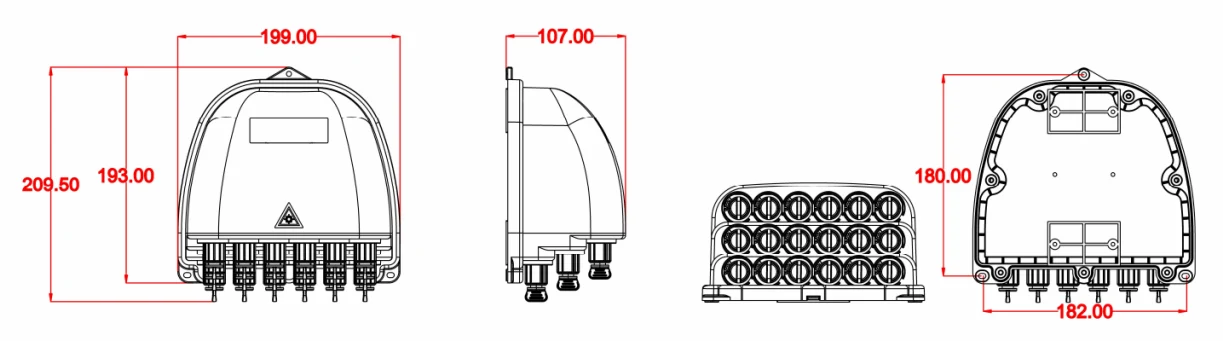

External dimension(mm) |
199*193*107mm |
|
|
Color |
Black |
|
|
Installation hole position(mm) |
180*182 |
|
|
Number of Pre-connectorized adaptors |
18 |
|
|
Splitter |
1x2 FBT splitter+ 1x16 PLC splitter |
|
|
IP grade |
IP68 |
|
|
Flammability |
UL94-HB |
Default |
|
Neutral salt spray test (NSS) |
48h |
|
