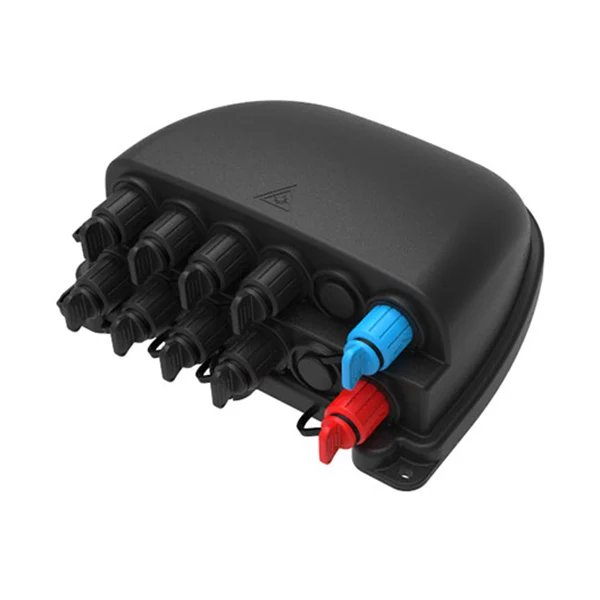

Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box

Our high quality Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box are all made in China. Orientalfiber is a professional the Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

The Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is an advanced FTTX network distribution node equipment, mainly used for the termination, protection, connection and management of pre-connectorized fiber optic cables. It realizes quick and reliable connection of fiber optic networks, provides effective protection for fiber optic components, and facilitates the management and maintenance of fiber optic lines. The pre-connectorized design of the Orientalfiber Fiber Optic Cable Distribution Box eliminates the need for on-site fusion splicing, greatly improving the efficiency of network deployment and reducing construction costs.

Structural Design

The bottom shell and the top cover of the Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box are fixed with screws and are removable, which is convenient for on-site installation, maintenance and component replacement. The box body adopts a compact structural design, which can be easily installed in narrow spaces such as corridors, weak current wells and machine rooms, making full use of the installation space. In addition, the interior of the box is reasonably partitioned, with a special area for placing splitters and storage trays, ensuring the orderliness of fiber optic lines and avoiding damage caused by tangled lines.

Material & Protection Performance

The Fiber Optic Cable Distribution Box is made of high-quality PP material, which has excellent moisture-proof, waterproof, dust-proof and anti-aging properties, and can adapt to various harsh working environments. The protection level of the product reaches IP68, which means it can be used normally even in long-term humid, dusty or even short-term submerged environments, effectively protecting the internal fiber optic components from external factors. This reliable protection performance ensures the stable operation of the Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box in both indoor and outdoor scenarios.

Internal Configuration & Expandability

The interior of the Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is equipped with flexible configuration options, which can be equipped with 1x4 PLC splitter + 1x8 PLC splitter or 1x8 PLC splitter according to customer needs, meeting different network distribution requirements. At the same time, the product can be equipped with a drop cable storage tray, which can meet the storage needs of 30 meters of 5mm round cables, effectively managing the excess drop cables and avoiding line damage. The modular design of the product also allows for flexible expansion, which can be adjusted according to the future network expansion needs, improving the utilization rate of equipment.

Installation Methods

The Fiber Optic Cable Distribution Box supports multiple installation methods, including pole-mounted, aerial-mounted and wall-mounted. Among them, the wall-mounted method is the most commonly used, which is easy to operate and saves space; the pole-mounted and aerial-mounted methods are suitable for outdoor scenarios such as roads and communities, expanding the application scope of the product. The product is equipped with complete installation accessories, and the installation process is simple, which can be completed by professional and technical personnel quickly.

Product Standards & Quality Control

Compliant Standards

The Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is designed, manufactured and tested in strict accordance with international standards to ensure the stability and compatibility of the product. The specific compliant standards include:

• ITU-T G.652: Characteristics of a single-mode optical fibre
• IEC 60794-1-1: Optical fibre cables-part 1-1: Generic Specification-General
• IEC 60794-1-2: Optical fibre cables-part 1-2: Generic Specification-Basic optical cable test procedure

Quality Control Process

From raw material procurement to product delivery, we have established a strict quality control system. The PP material used in the Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is selected through strict screening to ensure its performance meets the requirements; the production process adopts automated equipment and professional operation, reducing human errors; each product will go through multiple tests, including waterproof test, dust-proof test, aging test and optical performance test, to ensure that the product meets the quality standards before leaving the factory.

Application Scenarios

Telecommunications Industry

In the telecommunications industry, the Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is widely used in FTTX network deployment, including fiber-to-the-home (FTTH), fiber-to-the-building (FTTB) and other scenarios. It serves as a key node for signal distribution, connecting the central office equipment with user terminals, providing stable and high-speed fiber optic access services for users.

Industrial & Public Facilities

The product is also suitable for industrial front-end connections in electrical power, rail transit, highways and other industries, as well as communication and information transmission systems of radio and television. Its excellent protection performance and flexible installation methods can adapt to the complex working environment of industrial sites and public facilities, ensuring the stable operation of fiber optic networks.

Commercial & Residential Areas

In commercial buildings, office parks and residential communities, the Orientalfiber Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box is installed in corridors, basements and other locations, realizing the centralized management and distribution of fiber optic lines, meeting the high-speed network needs of enterprises, shops and residents.

● The bottom shell and the upper cover are fixed with screws, removable.

● Material: PP.

● Moisture proof, waterproof, dust-proof, anti-aging.

● Protection level up to IP68.

● The interior is equipped with 1x4 PLC splitter+ 1x8 PLC splitter or 1x8 PLC splitter......

● Installation method: pole-mounted, aerial-mounted, wall-mounted.

● It can be equipped with drop cable storage tray to meet the storage of 30 meters 5mm round cable.

Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

Standards Comply

The wall-mounted pre-connectorized fiber optic cable distribution box is designed, manufactured and tested according to the standards as follows:

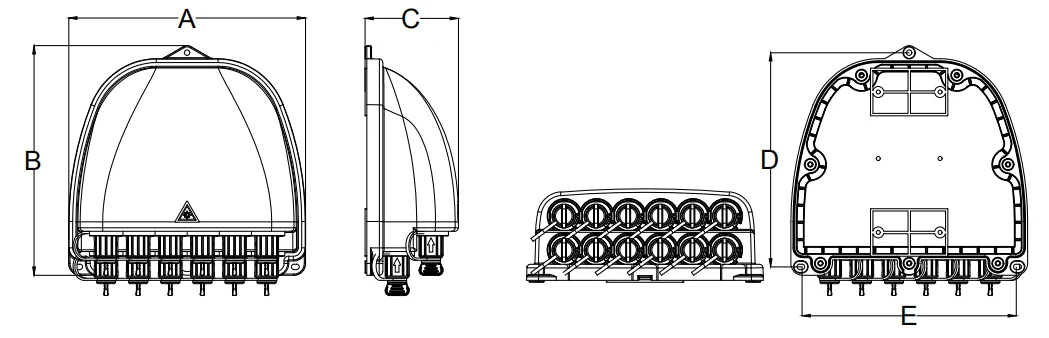

Specifications

FAQ (Frequently Asked Questions)

Q1: What is the service life of the Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box?

A1: The product is made of high-quality anti-aging PP material, and after strict aging test, its service life can reach more than 15 years under normal use conditions, which can meet the long-term use needs of fiber optic networks.

Q2: Can the internal configuration of the product be customized according to needs?

A2: Yes, we support customized services for the internal configuration of the Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box. Customers can choose the type and quantity of splitters, the size of the storage tray and other configurations according to their actual network needs, and we will provide professional customization solutions.

Q3: Is the product suitable for outdoor use?

A3: Yes, the Orientalfiber's Fiber Optic Cable Distribution Box has a protection level of IP68, which has excellent waterproof, dust-proof and anti-aging properties, and can be used normally in outdoor scenarios such as roads, communities and industrial sites.

Q4: What installation accessories are included with the product?

A4: The product is equipped with complete installation accessories, including screws, fixing brackets, waterproof gaskets and other components, which can meet the installation needs of different methods such as wall-mounted, pole-mounted and aerial-mounted. At the same time, we will provide detailed installation instructions to help customers complete the installation quickly.

Q5: How to maintain the Wall-mounted Pre-connectorized Fiber Optic Cable Distribution Box?

A5: The product has a simple maintenance process. It is recommended to regularly check the tightness of the box cover and the integrity of the waterproof gasket to ensure the protection performance; clean the surface and interior of the box regularly to avoid dust accumulation; check the connection status of the fiber optic lines to ensure stable signal transmission. If any fault is found, professional technical personnel can be contacted for maintenance.
