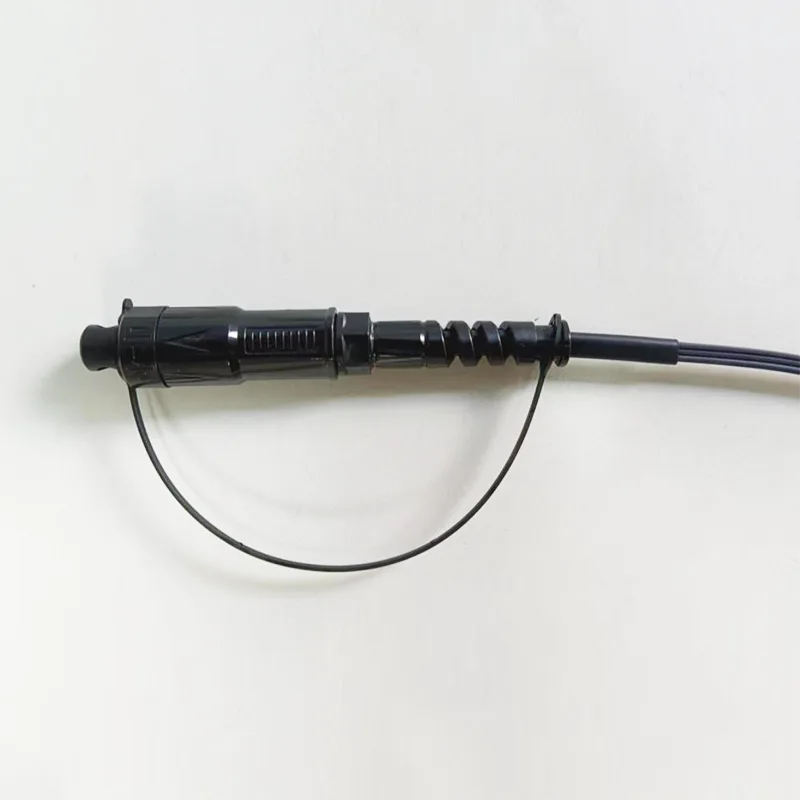

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

Orientalfiber is a manufacturer and supplier specializing in 5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality 5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail are all made in China. Orientalfiber is a professional the 5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥ 60
Connection type		SC/APC
Ferrule		Ceramic
Connection cycles		500
Cable Jacket Color		Black
Cable Outer Diameter	mm	（5.2x2.0）±0.2mm （3.0x2.0）±0.2mm (without messenger)
Fiber Mode		Single mode: G657A2
Cable Jacket Material		LSZH
Cable weight	kg/km	20±3
Printing contents		Customizable
Length	m	100 or Customizable (Tolerance: ±0.5m)
Connector type		Input: Accord H Optic SC/APC
Connector type		Output: Without Connector
Traction (axial between cable and connector)	N	100
Waterproof Grade		IP68
Operating Temperature	℃	-20°C ~ +65℃
Storage Temperature	℃	-20°C ~ +65℃

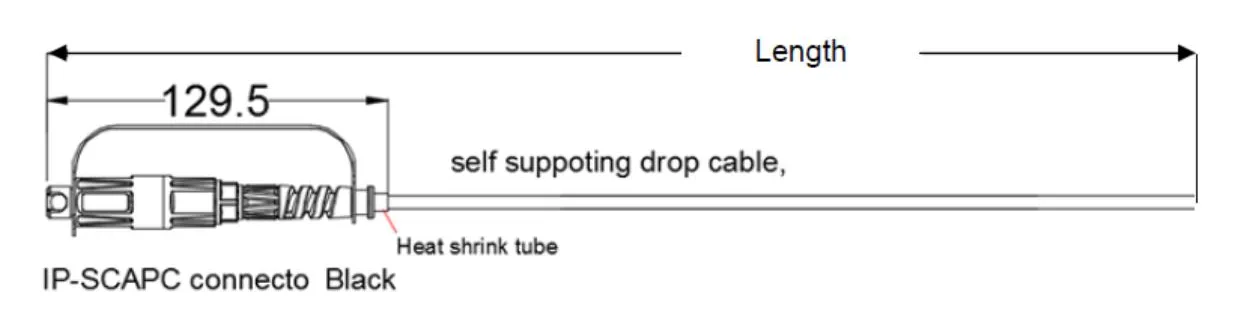

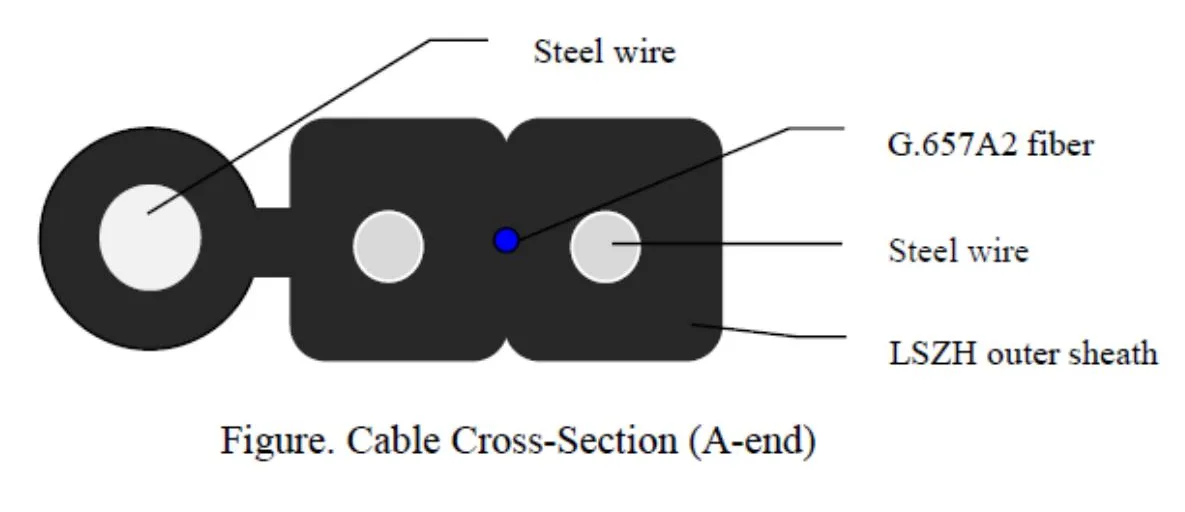

Cable Structure:

5x2mm Waterproof Drop Cable H Optic SC/APC Connector Optical Fiber Pigtail

Optical Fiber	Type	G-657 A2.
	No. Fibers	1
	Color	Blue
Outer Sheath	Dimension	（5.2x2.0）±0.2mm （3.0x2.0）±0.2mm (without messenger)
	Material	LSZH
	Color	Black
Steel Strength Member	Materia	Steel Wire
Steel Strength Member	Diameter	0.45mm
Steel Self Strength Member	Materia	Steel Wire
Steel Self Strength Member	Diameter	1.2 mm
Weight		20±3 Kg/Km
Tersile (N)		Long term: 300N Short term: 600 N
Crush		1000N/10cm
Min. Bending Radius		15xD (Static); 30xD (Dynamic)
Temperature Range		-20°C to +65°C

Fiber Characteristic:

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T Recommendation G.657A2 and shall be as follows.

Parameter		Specification
Attenuation coefficient	@ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.36 dB/km ≤ 0.36 dB/km ≤ 0.22 dB/km ≤ 0.24 dB/km
Attenuation (After cable)	@1310nm	≤0.40dB/km
	@1550nm	≤0.30dB/km
Uniformity of attenuation at 1310nm		≤0.05dB
Uniformity of attenuation at 1550nm		≤0.05dB
Cable cut-off wavelength (λcc)		≤ 1260 nm
Zero-dispersion wavelength		1300 ~ 1324 nm
Zero-dispersion slope		≤ 0.092 ps/(nm^2.km)
Absolute value of dispersion at 1288nm~1339nm		≤3.5ps/(nm·km)
Absolute value of dispersion at 1271nm~1360nm		≤5.3ps/(nm·km)
Dispersion at 1550nm		≤18ps/(nm·km)
Dispersion at 1625nm		≤23ps/(nm·km)
Mode field diameter (MFD) at 1310nm		8.60±0.4μm
Mode field diameter (MFD) at 1550nm		9.4-10.4μm
Polarization mode dispersion (PMD) Fiber		≤0.125ps/km^1/2
Polarization mode dispersion (PMD) Cable		≤0.200ps/km^1/2
PMD coefficient	M	20 cables
	Q	0.01%
	PMDQ	≤0.20ps/km^1/2
Geometrical characteristics
Cladding diameter		125±0.8μm
Cladding non-circularity		≤1.0%
Core/cladding concentricity error		≤0.8μm
Fiber diameter with coating (uncolored)		245±10μm
Fiber diameter with coating (colored)		250±10μm
Cladding/coating concentricity error		≤12.0μm
Tension test		100kpsi or 0.69GPa
Removal of the coating (N)		1.0～9.0
Mechanical characteristics
Macrobend loss at 1550nm	R=15mm,10 turns	≤0.03dB
	R=10mm,1turn	≤0.10dB
	R=7.5mm,1turn	≤0.5dB
Macrobend loss at 1625nm	R=15mm,10 turns	≤0.10dB
	R=10mm,1turn	≤0.20dB
	R=7.5mm,1turn	≤1.0dB
