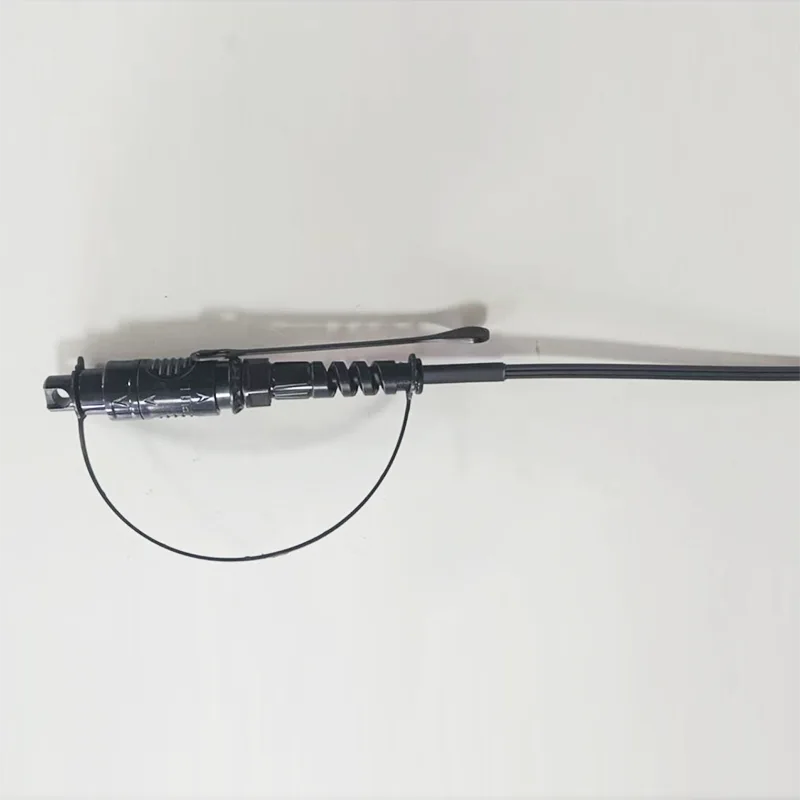

5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail

Orientalfiber is a manufacturer and supplier specializing in 5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality 5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail are all made in China. Orientalfiber is a professional the 5x2mm Waterproof Drop Cable YOFC SC/APC Connector Optical Fiber Pigtail manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30 (Typical: 0.20)
Return Loss	dB	≥ 55
Connection type		SC/APC
Ferrule		Ceramic
Connection cycles		500
Cable Jacket Color		Gray
Cable Outer Diameter	mm	5.0(±0.1) x2.0(±0.1)
Fiber Mode		Single mode: G657A2
Cable Jacket Material		LSZH (Flame Retardancy Class C)
Cable weight	kg/km	18（approx）
Printing contents		Customizable
Length	m	80 or Customizable (Tolerance: ±0.5m)
Connector type		Input：Accord YOFC SC/APC
Connector type		Output： Without Connector
Traction (axial between cable and connector)	N	100
Waterproof Grade		IP68
Operating Temperature	℃	-20°C ~ +65℃
Storage Temperature	℃	-20℃ ~ +65℃

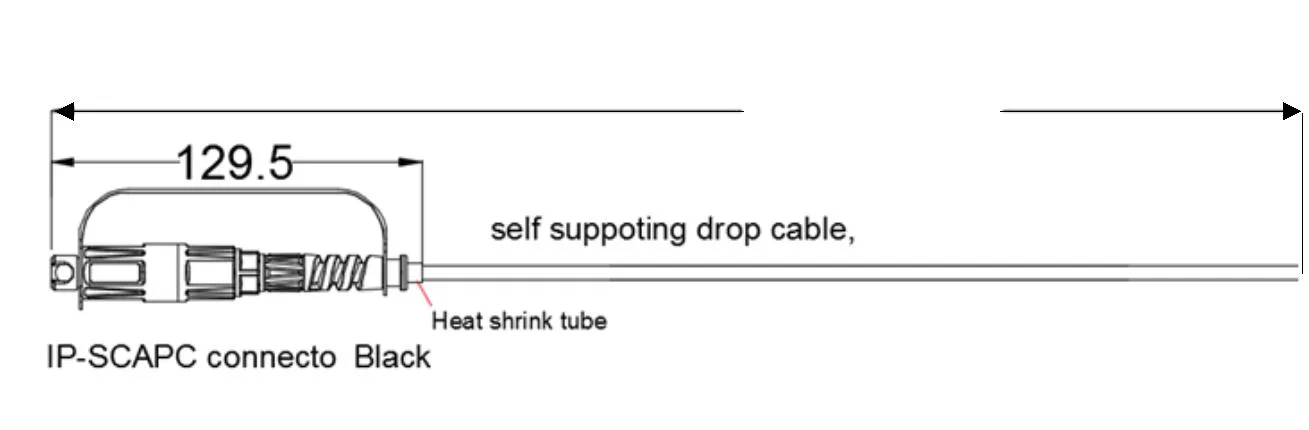

Cable Structure:

Optical Fiber	Type	G-657 A2.
	No. Fibers	1
	Color	Blue
Outer Sheath	Dimension	2.0(±0.1) x5.0 (±0.1)
	Material	LSZH
	Color	Gray
Steel Strength Member	Materia	Steel Wire
Steel Strength Member	Diameter	0.4mm
Steel Self Strength Member	Materia	Steel Wire
Steel Self Strength Member	Diameter	1.0 mm
Weight		18 Kg/Km
Tersile (N)		Long term: 300N Short term: 600 N
Crush Resistance		5N/mm, 3 cycles
Adherence (N)		Metal reinforcement element for 0,4mm: >50
Adherence (N)		Supporting element for 1,00mm: >100
Min. Bending Radius		15xD (Static); 30xD (Dynamic)
Temperature Range		-20°C to +65°C
