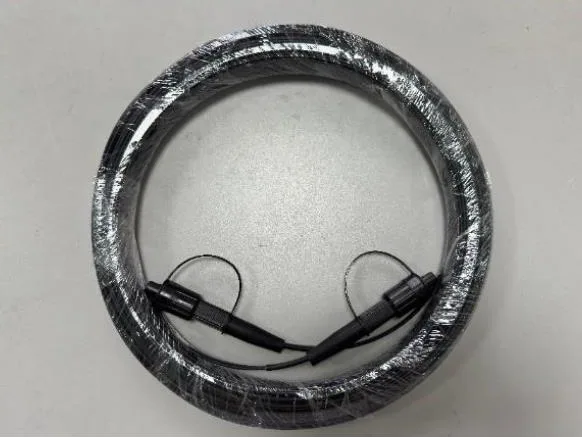

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail (Accord HW DLC Connector)

Orientalfiber is a manufacturer and supplier specializing in Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail (Accord HW DLC Connector), with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail (Accord HW DLC Connector) are all made in China. Orientalfiber is a professional the Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail (Accord HW DLC Connector) manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Duplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥55 (APC)
Cable Jacket Color		Grey
Cable Outer Diameter	mm	5.2(±0.2) x2.0(±0.1)
Fiber Mode		Single mode: G657 A2
Cable Jacket Material		LSZH
Cable weight	kg/km	17（approx）
Printing contents		Customizable

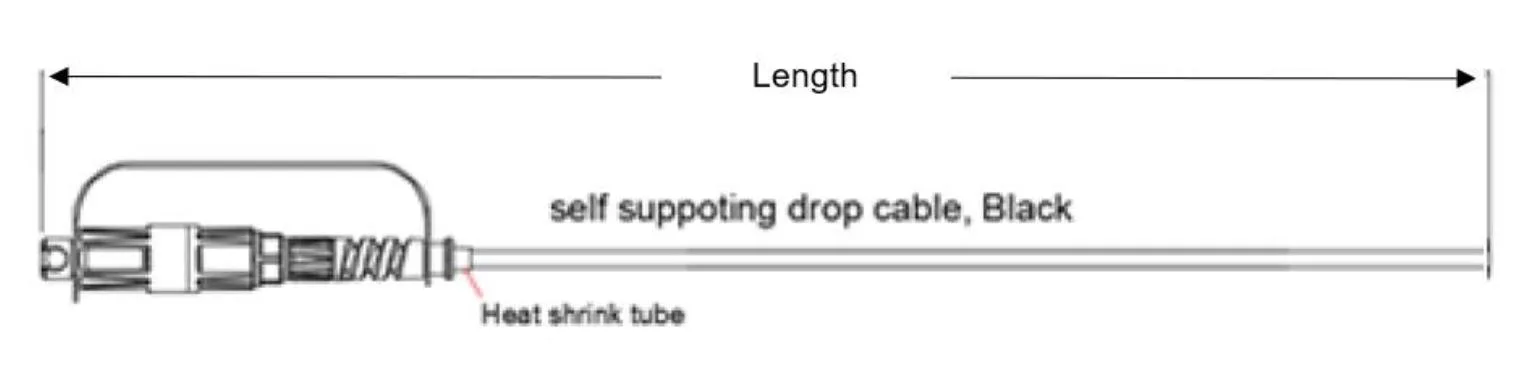

Length	m	30 、50 、100 、150 、200 or Customizable (Tolerance: ±0.5m)

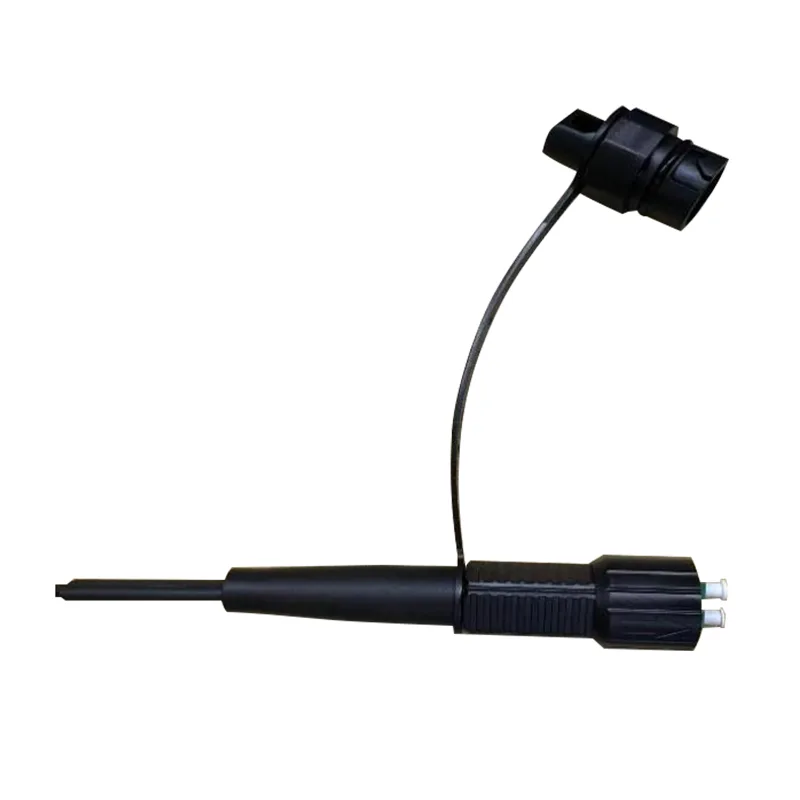

Connector type		Input:	Accord HW DLC/APC Connector
		Output:	No Connector
Waterproof Grade		IP67
Operating Temperature	℃	-20°C ~ +65℃
Storage Temperature	℃	-20°C ~ +65℃

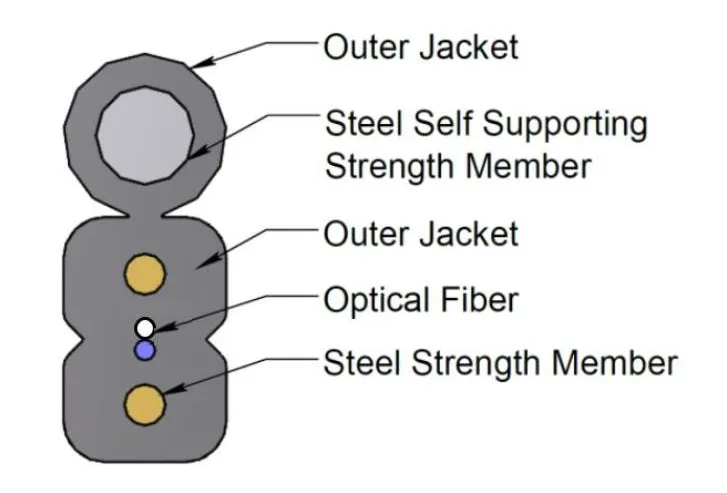

Cable Structure:

Duplex LC/APC Waterproof Drop Cable Optical Fiber Pigtail(Accord HW DLC Connector)

Cable Specification:

Optical Fiber	Type	G657 A2
	No. Fibers	2
	Color	Blue & White
	Dimension	Ф250um
	Attenuation	@1310nm ≤0.35 dB/km
	Coefficient	@1550nm ≤0.22dB/km
Outer Sheath	Material	LSZH
	Color	Grey
	Thickness	≥0.4mm
	Dimension	2.0(±0.1) x5.2 (±0.2)
Strength Member	Materia	Phosphide Steel Wire
Strength Member	Diameter	Φ0.40mm * 2ea
Steel Self Strength Member	Materia	Phosphide Steel Wire
Steel Self Strength Member	Diameter	1.0mm
Weight		18 Kg/Km
Stretching test (N)		Long term: 300 N Short term: 600 N
Flattening test (N/10cm)		Long term: 800 N/10cm Short term: 1600 N/10cm
Min. Bending Radius		15xH (Static); 30xH (Dynamic)
Installation temperature		-20°C to +65°C
Storage temperature		-20°C to +65°C
Marking (Ink Jet)		White,The marking is printed every 1 meter
