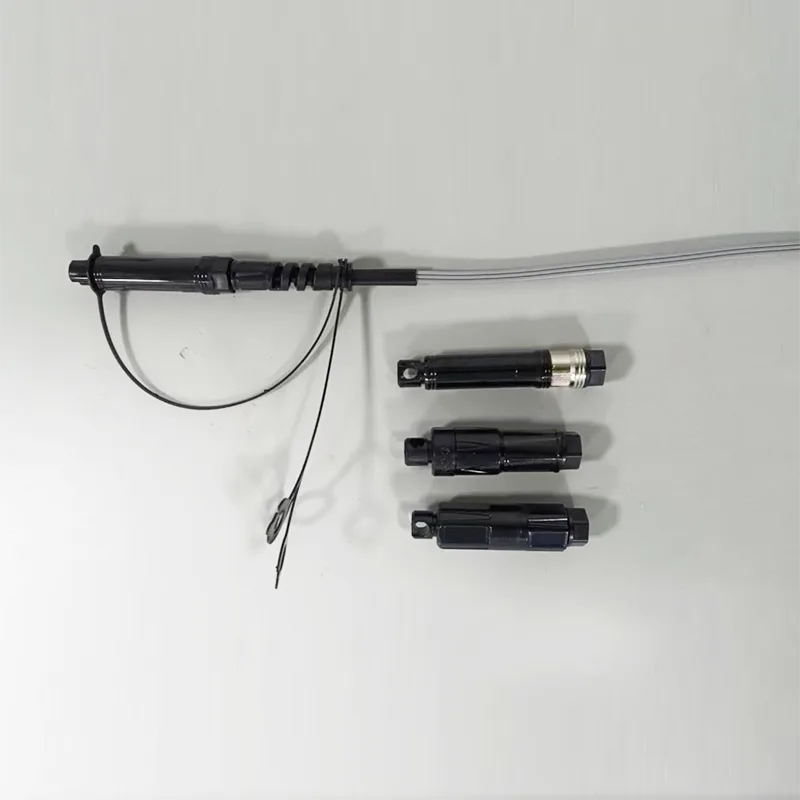

5x2mm Waterproof Drop Cable Mini SC/APC Connector Optical Patch Cords

Orientalfiber is a manufacturer and supplier specializing in 5x2mm Waterproof Drop Cable Mini SC/APC Connector Optical Patch Cords, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

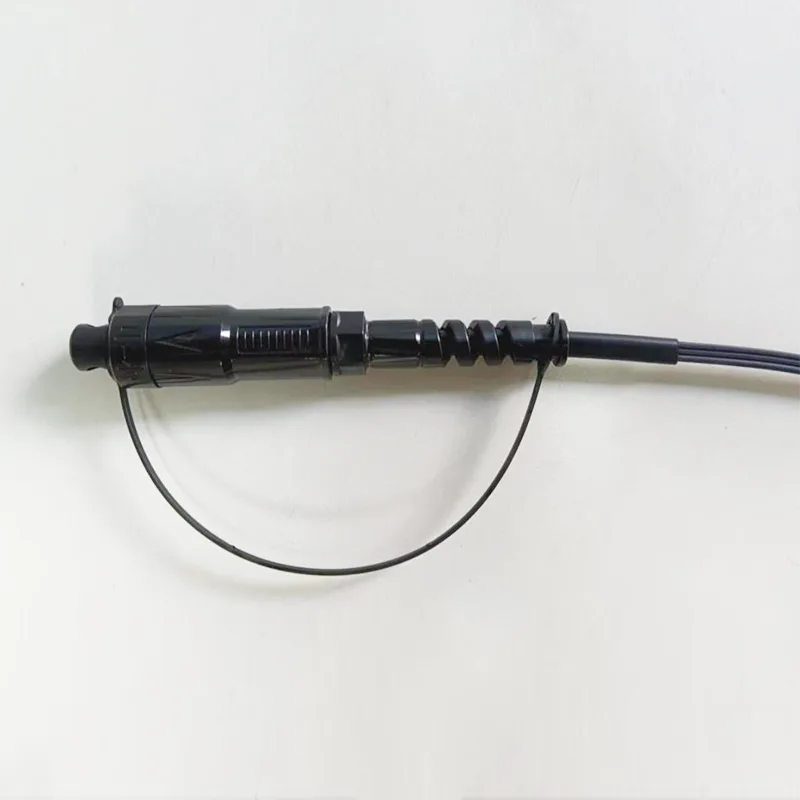

Product Description

Our high quality 5x2mm Waterproof Drop Cable Mini SC/APC Connector Optical Patch Cords are all made in China. Orientalfiber is a professional the 5x2mm Waterproof Drop Cable Mini SC/APC Connector Optical Patch Cords manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥ 60
Connection type		SC/APC
Ferrule		Ceramic
Connection cycles		500
Cable Jacket Color		Gray
Cable Outer Diameter	mm	5.0(±0.2) x2.0(±0.1)
Fiber Mode		Single mode: G657A2
Cable Jacket Material		LSZH
Cable weight	kg/km	20（approx）
Printing contents		Customizable
Length	m	30、50、100、150、200、250、300、400、500 or Customizable (Tolerance: ±0.5m)
Connector type		Input: Accord H Optic SC/APC
Connector type		Output: Without Connector
Traction (axial between cable and connector)	N	100
Waterproof Grade		IP68
Operating Temperature	℃	-20°C ~ +65℃
Storage Temperature	℃	-20°C ~ +65℃

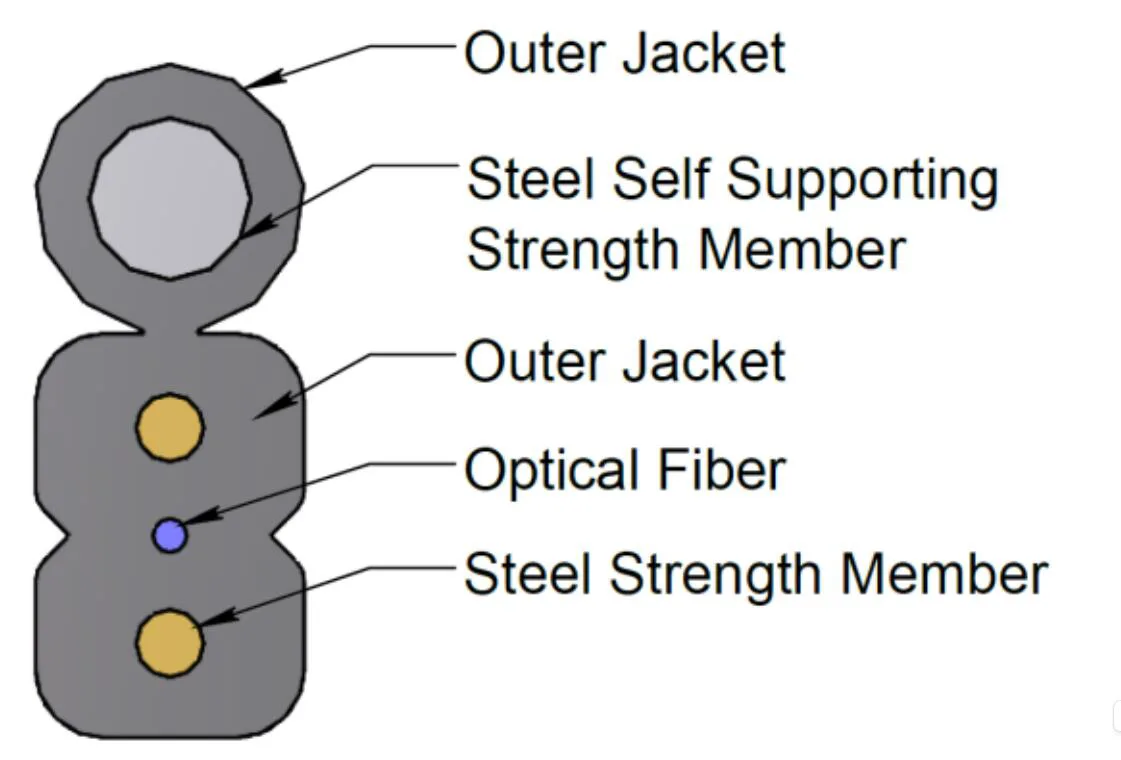

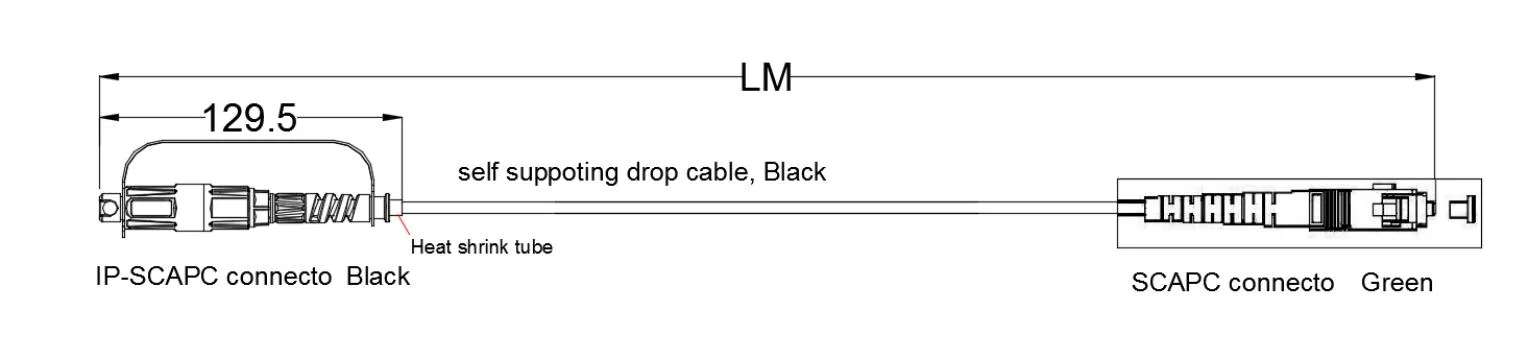

Cable Structure:

5x2mm Waterproof Drop Cable Mini SC~SC/APC Connector Optical Patch Cords

Optical Fiber	Type	G657 A2
	No. Fibers	1
	Color	Blue
Steel Strength Member	Materia	Steel Wire
Steel Strength Member	Diameter	0.4mm
Steel Self Strength Member	Materia	Steel Wire
Steel Self Strength Member	Diameter	1.0 mm
Outer Sheath	Dimension	2.0(±0.1) x5.0 (±0.2)
	Material	LSZH
	Color	Gray
Cable Weight	Kg/km	20
Tension	N	300 (Long Term)
Tension	N	600 (Short Term)
Crush	N/10cm	200 (Long Term)
Crush	N/10cm	1000 (Short Term)
Min. Bend Radius	mm	10xH (Static)
Min. Bend Radius	mm	20xH (Dynamic)
Operating temperature range:		-20℃ to +60℃
Storage / Transport temperature range:		-20℃ to +60℃

Optical Fiber:

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T recommendation G.657A2 and shall be as follows.

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383nm @ 1490nm @ 1550 nm @ 1625nm After cable formation @ 1310 nm @ 1550 nm	≤ 0.36 dB/km ≤ 0.36 dB/km ≤ 0.25 dB/km ≤ 0.22 dB/km ≤ 0.25 dB/km ≤ 0.36 dB/km ≤ 0.22 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm2.km)
PMD @ 1550 nm	≤0.1 ps/km1/2
Chromatic dispersion @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Mode field diameter @ 1310 nm	8.5-9.3um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤5%
Primary coating diameter	242 ± 7 um
Concentricity Primary Coating / Coating	≤10 µm
Coating non-circularity	≤0.7%
Attenuation with Cable bending Loss 1 turn 1 Mandrel 7.5mm 10 turns 1 Mandrel 15mm	1550nm ≤ Δ 0.10 dB/km 1550nm ≤ Δ 0.03 dB/km
