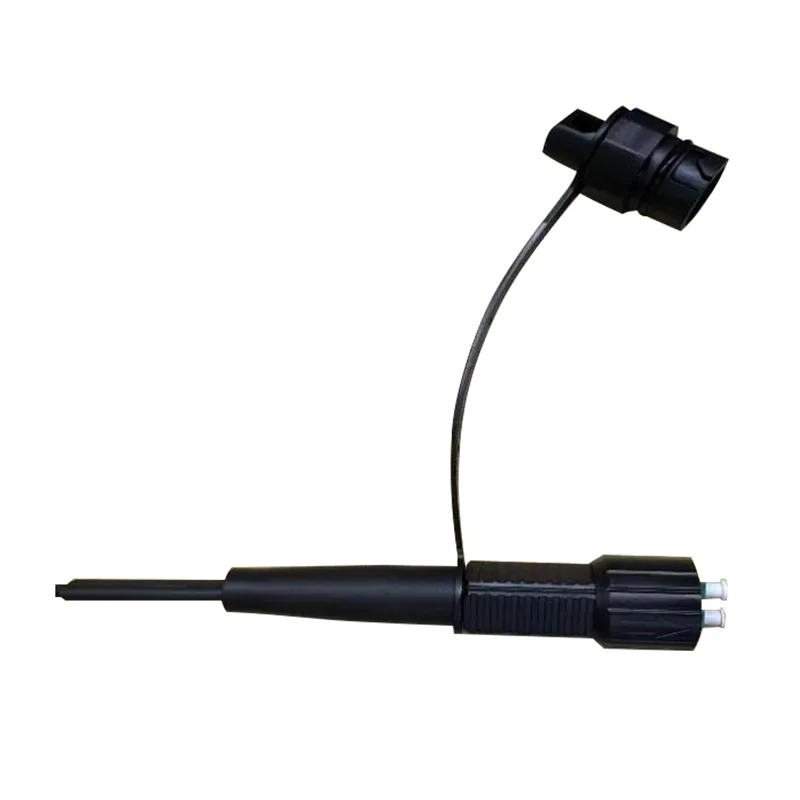

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords (Accord Mini DLC Connector)

Orientalfiber is a manufacturer and supplier specializing in Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords (Accord Mini DLC Connector), with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords (Accord Mini DLC Connector) are all made in China. Orientalfiber is a professional the Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords (Accord Mini DLC Connector) manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Duplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥50 (UPC)
Cable Jacket Color		Black
Cable Outer Diameter	mm	7.0±0.2
Fiber Mode		Single mode: G657 A2
Cable Jacket Material		LSZH
Cable weight	kg/km	38（approx）
Printing contents		Customizable
Length	m	50 、75 、 100 、 150 、200、250 、300 or Customizable (Tolerance: ±0.5m)
Connector type		Input:	Accord Mini DLC/UPC Connector
		Output:	Accord Duplex LC/UPC Connector
Waterproof Grade		IP68
Operating Temperature	℃	-40°C ~ +70℃
Storage Temperature	℃	-40°C ~ +70℃

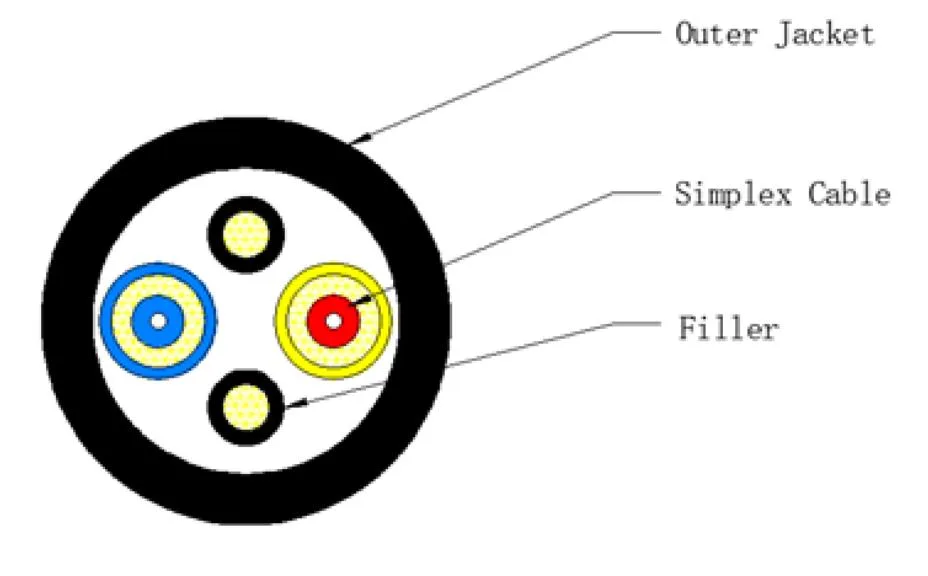

Cable Structure:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

Cable Specification:

Item	Contents	Value
Tight Buffer Fiber	Number	2
	TYPE	G.657A2
	Diameter (mm)	0.90±0.05
	Material	LSZH
	Color	WHITE
SIMPLEX CABLE	Material	LSZH
	Diameter (mm)	2.0±0.1
	Color	BLUE & YELLOW
FILLER	Material	LSZH
	Diameter (mm)	1.3±0.1
	Color	Black
OUTER JACKET	Material	Lszh
	Diameter (mm)	7.0±0.2
	Color	Black
	Thickness (mm)	1.0±0.1
Cable weight(kg/km) Approx.		38±3
Stretching test (N)		Long term: 400 N Short term: 800 N
Flattening test (N/10cm)		Long term: 1000 N/10cm Short term: 2200 N/10cm
Min. Bending Radius		10xOD (Static); 20xOD (Dynamic)
Installation temperature		-40°C to +70°C
Storage temperature		-40°C to +70°C

Performance of Cabled Optical Fiber

The performance of cabled optical fiber (ITU-T Rec. G.657A2)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm2.km)
PMD @ 1550 nm	≤0.1 ps/km1/2
Chromatic dispersion @ 1285~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Mode field diameter @ 1310 nm	8.5-9.3um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤5%
Primary coating diameter	242 ± 7 um
Concentricity Primary Coating / Coating	≤10 µm
Coating non-circularity	≤0.7%
Attenuation with Cable bending Loss 10 turn 1 Mandrel 15mm 1 turn 1 Mandrel 10mm 1 turn 1 Mandrel 7.5mm	1550nm ≤ Δ 0.03 dB/km 1550nm ≤ Δ 0.1 dB/km 1550nm ≤ Δ 0.5 dB/km

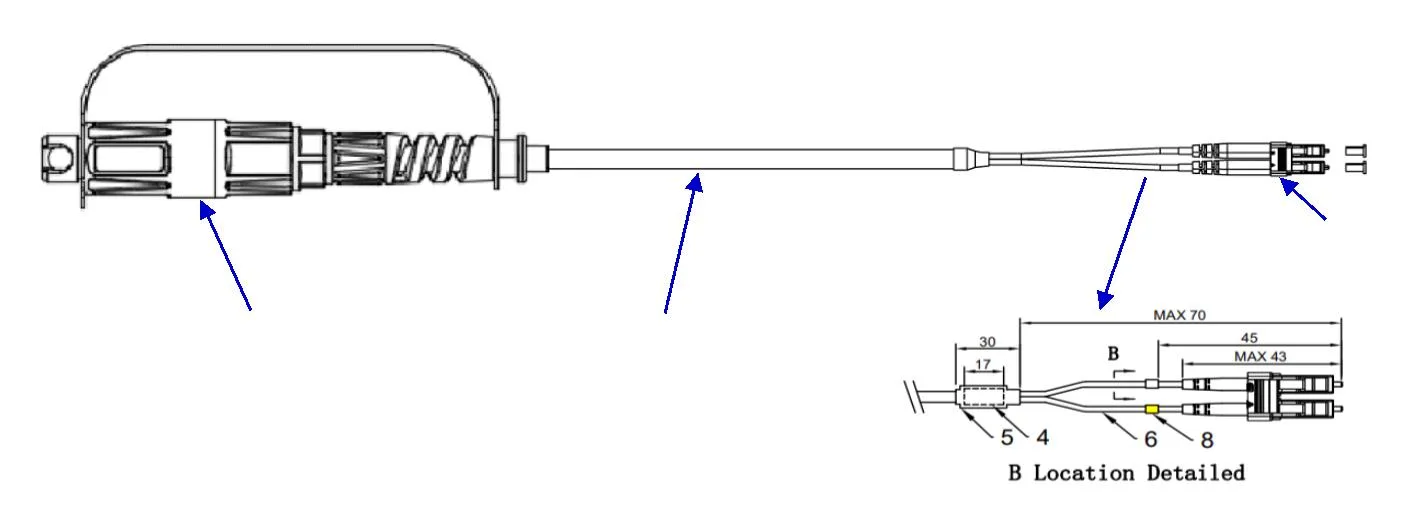

Dimensional drawing:

Duplex LC/UPC Waterproof Round Cable Optical Fiber Patch Cords Specification (Accord Mini DLC Connector)

No	Description	Qty
1	SM G.657A2 2 Core with 2.0mm Fiber. OD7.0mm, BLACK LSZH	1
2	Mini DLC Connector Black	1
3	LC3.0 Duplex for Single mode Fiber, Beige, Tube for IC Connector, White	2
4	Rubber Heat Shrinkable Tube, Black, OD 8.5mm L=17mm	1
5	Rubber Heat Shrinkable Tube, Black, OD 8.5m L-30mm	2
6	Flexible Protective with Steel Tube, OD 2.8mm L=52mm	2
8	Heat Shrinkable Tube, White /Yellow OD3.0mm L=5mm	2
