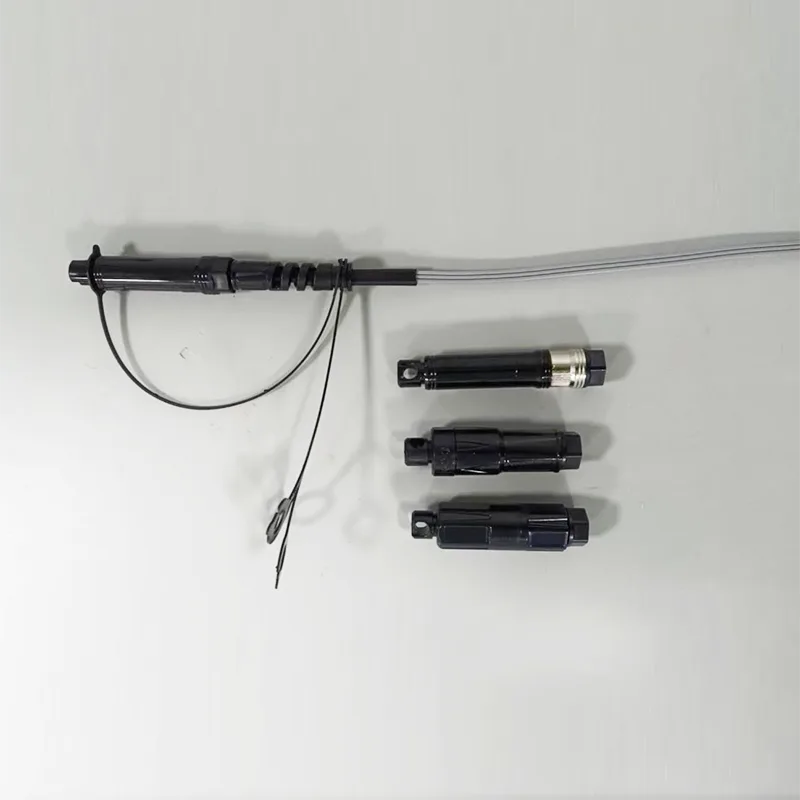

Three-In-One Waterproof Drop Cable Patch Cord (Accord OPTITAP/Mini SC/SLIM SC Connector)

Orientalfiber is a manufacturer and supplier specializing in Three-In-One Waterproof Drop Cable Patch Cord (Accord OPTITAP/Mini SC/SLIM SC Connector), with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Three-In-One Waterproof Drop Cable Patch Cord (Accord OPTITAP/Mini SC/SLIM SC Connector) are all made in China. Orientalfiber is a professional the Three-In-One Waterproof Drop Cable Patch Cord (Accord OPTITAP/Mini SC/SLIM SC Connector) manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥60 (APC)
Cable Jacket Color		Grey
Cable Outer Diameter	mm	5.0x2.0
Fiber Mode		Single mode: G657A2
Cable Jacket Material		LSZH（Flame retardant 、Low Friction ）
Cable weight	kg/km	22（approx）
Printing contents		Customizable
Length	m	50 、100 、150 、250 、300 or Customizable (Tolerance: ±0.5m)

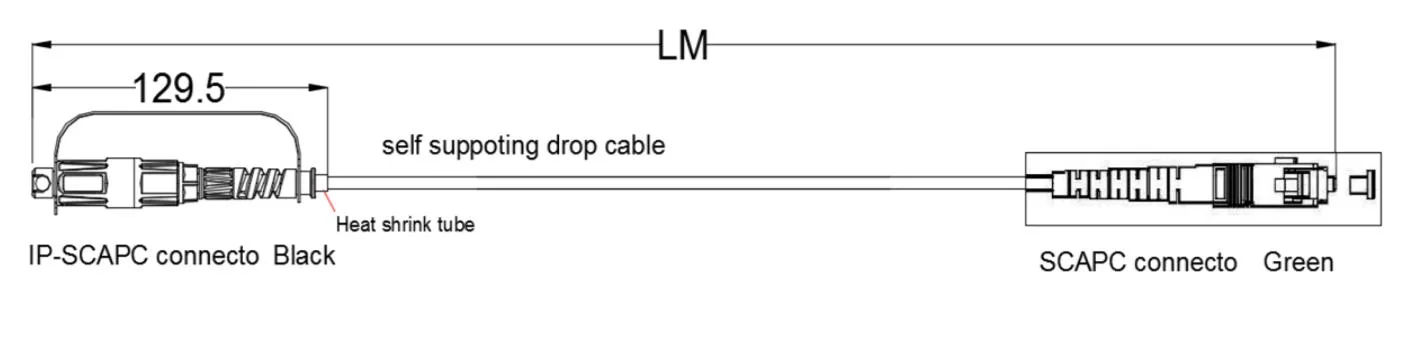

Connector type		Input：	Accord OPTITAP RSC/APC Connector Accord H Optic Mini SC/APC Connector Accord SLIM SC/APC Connector
		Output：	Conventional SC/APC
Waterproof Grade		IP67
Operating Temperature	℃	-20°C ~ +65℃
Storage Temperature	℃	-20℃ ~ +65℃

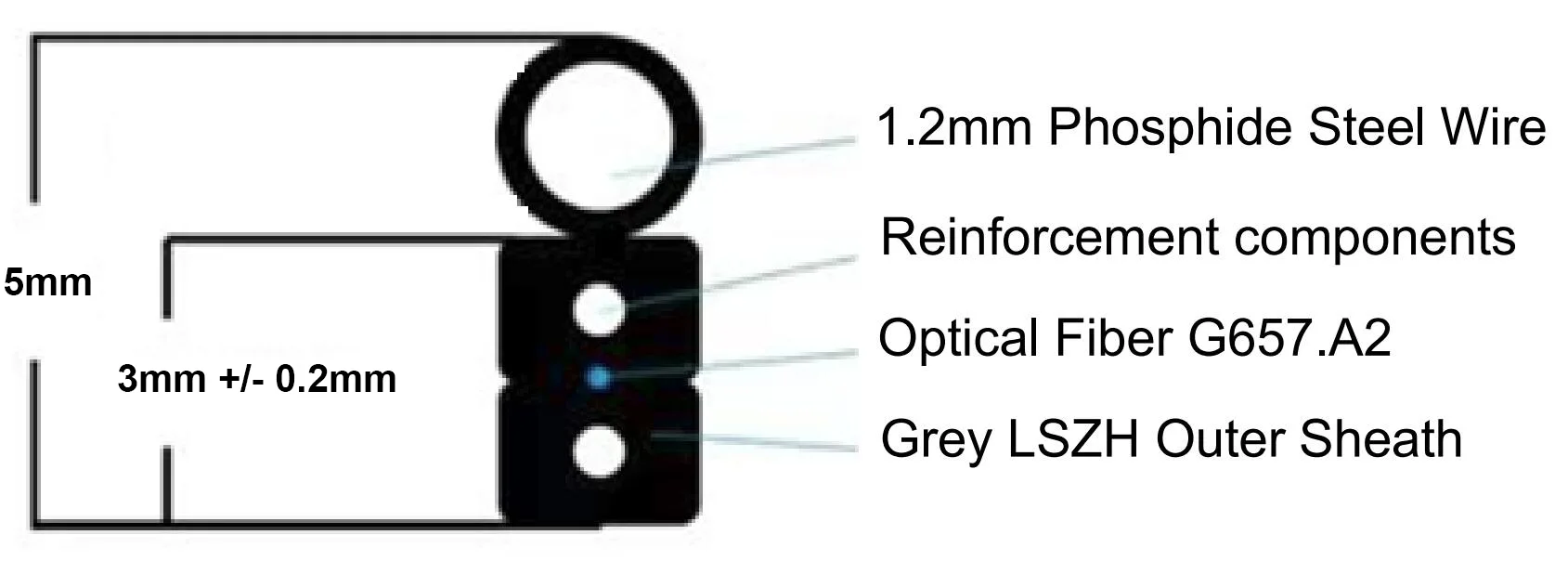

Cable Structure:

Three-In-One Waterproof Drop Cable Patch Cord(Accord OPTITAP/Mini SC/SLIM SC Connector)

Cable Technical Specification:

Optical Fiber	Type	Single mode: G657 A2
	No. Fibers	1
	Color	Blue
	Attenuation Coefficient	@1310nm ≤0.32 dB/km @1550nm ≤0.20 dB/km
	Mode-Field Diameter	1310nm ≤9.2 μm 1550 nm ≤9.2 μm
	Cladding Diameter	125 ± 0.7 μm
	Coating Diameter	242 ± 5 μm
	Coating-Cladding Concentricity	≤0.5%
	Cable Cutoff Wavelength	SM: λcc ≤1258 nm
	Macro bend loss (dB)	R=10mm, 1 turn: ≤0.10 @1550nm R=10mm, 1 turn: ≤0.20 @1625nm R=7.5mm, 1 turn: ≤0.20 @1550nm
Strength Member	Materia	KFRP
Strength Member	Diameter	Φ0.50mm * 2ea
Steel Self Strength Member	Materia	Phosphide Steel Wire
Steel Self Strength Member	Diameter	1.2mm
Outer Sheath	Material	LSZH（Flame retardant 、Low Friction ）
	Color	Grey
	Dimension	2.0×5.0(±0.1) mm
Weight		22 Kg/Km
Tensile strength (N)		Long term: 400 N Short term: 800 N
Crush resistance (N/100mm)		Long term: 1000 N/10cm Short term: 2000 N/10cm
Min. Bending Radius		10D (Static); 20D (Dynamic)
Operation temperature		-20°C ~ +65℃
Transportation& Storage		-20℃ ~ +65℃
Marking (Ink Jet)		Black The marking is printed every 1 meter
