Uni-tube Non-metallic 73 Sheath Light-weight Lighting Anti-rodent Fiber Optic Cable

The structure of uni-tube non-metallic 73 sheath light-weight lighting anti-rodent fiber optic cable is to put single-mode optical fiber or multi-mode optical fiber into a loose tube made of high modulus polyester material, and the tube is filled with waterproof compound. Water-blocking material is added to the loose tube to ensure the waterproof performance of the optical cable. The loose tube is wrapped with FRP rod, and a layer of polyethylene inner sheath is extruded on the cable core. After the FRP belt is longitudinally wrapped, a polyethylene outer sheath is extruded to form a cable.

Send Inquiry

Product Description

Characteristics

Good mechanical and temperature properties

Good hydrolysis resistance and high strength

Special tube filling compound ensure a critical protection of fibre

Good lateral pressure resistance and softness

Wrapping FRP ensures the tensile strength of the cable and provides good protection for the loose tube

Wrapped FRP and FRP tape armor make the cable have excellent rodent-proof performance

Polyethylene (PE) sheath has good resistance to UV radiation

Small diameter, light weight and friendly installation

Standards

GYQFXTY73 cable complies with Standard YDT 769-2010 as well as IEC 60794-1.

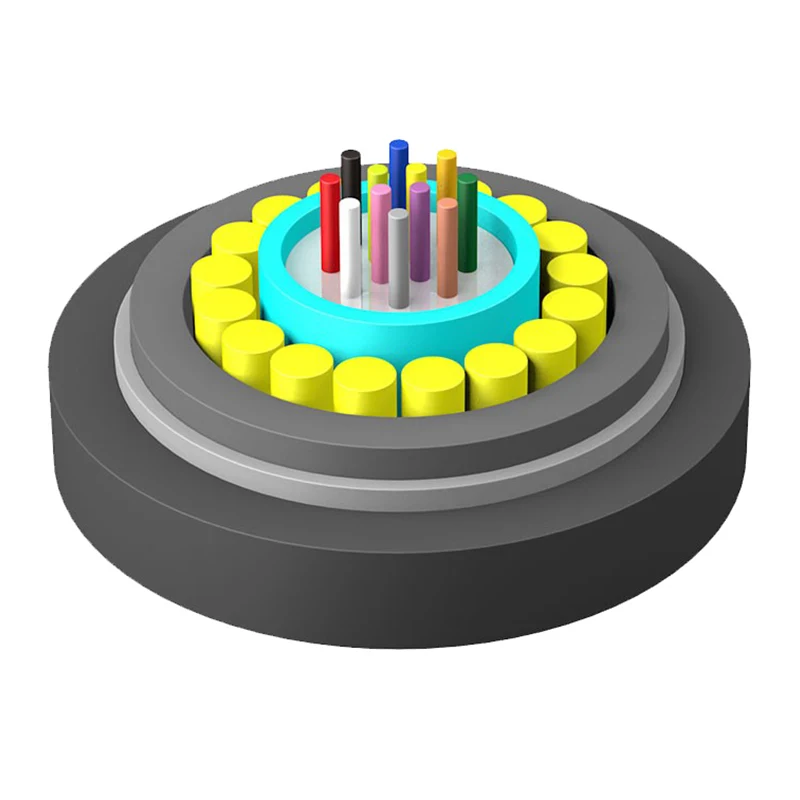

Structure Drawing

1.Fibre

2.Tube Filling Compound

3.Loose Tube

4.FRP

5.Cable Filling Material

6.PE Inner Sheath

7.Water-blocking Material

8.FRP Tape

9.PE Outer Sheath

Uni-tube Non-metallic 73 Sheath Light-weight Lighting Anti-rodent Fiber Optic Cable

Technical Parameters

Cable Type (Increased by 2 fibres)	Fibre Count	Cable Weight (Ref) (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYQFXTY73-2~12Xn	2~12	97	600/1500	1000/3000	10/20D
GYQFXTY73-12~24Xn	14~24	111
GYQFXTY73-26~36Xn	26~36	148

Storage/Operating Temperature: -40℃-+70℃

Optical Characteristics

Fibre Type	Attenuation(+20℃)				Bandwidth		Numerical Aperture	Cable Cut-off Wavelength λcc
Fibre Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical Aperture	Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015NA	---

Note:

a. Suffix Xn denotes fibre type

b. The colour arrangements of fibre and tube are specified in the colour identification table

c. The uni-tube non-metallic 73 sheath light-weight lighting anti-rodent fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state

Application: Duct/Aerial
