Indoor Ribbon Fiber Optic Cable

Orientalfiber supplies high-quality Indoor Ribbon Fiber Optic Cable as a complete fiber optic network solution. This cable adopts fiber optic ribbon as the transmission medium, featuring high integration, stable signal transmission, and easy installation. It is widely used in indoor distribution, equipment interconnection, and communication systems.

Send Inquiry

Product Description

Indoor Ribbon Fiber Optic Cable uses fiber optic ribbon as the optical transmission medium. The fiber optic ribbon is inserted into a loose tube made of high modulus material and then coated with a layer of aramid reinforcement. The outermost layer is extruded with a polyvinyl chloride (PVC) sheath. This structural design ensures reliable performance and convenient operation in indoor environments.

Key Features

High-integrated fibre ribbon design The fiber ribbon structure enables high fiber density in a compact form, simplifying management and installation. It supports efficient connection with MT/MTP connectors, suitable for high-density wiring scenarios.

Excellent tensile strength Equipped with aramid reinforcement, the cable provides strong tensile resistance to withstand external forces during construction and use, ensuring signal stability.
Durable outer material The outer sheath is corrosion-resistant, waterproof, UV-resistant, flame-retardant, and environmentally friendly. It meets indoor safety requirements and adapts to various working environments.
Easy installation and maintenance The cable is flexible with good bending performance, easy to route in narrow spaces such as cable trays and conduits. It does not require lubricating grease, facilitating quick construction and connection.

Technical Specifications

Parameter	Specification
Fiber Type	Single-mode (G.652D/G.657A1) / Multi-mode (50/125μm, 62.5/125μm)
Core Count	4, 6, 8, 12, 24 cores (customizable)
Cable Structure	Ribbon fiber in loose tube + aramid reinforcement + PVC sheath
Outer Diameter	Customizable (typically 3.0–6.0mm)
Attenuation	≤0.36 dB/km at 1310nm; ≤0.22 dB/km at 1550nm (single-mode)
Tensile Strength	Short-term: ≥1500N; Long-term: ≥600N
Bending Radius	Static: ≥10× cable diameter; Dynamic: ≥20× cable diameter
Operating Temperature	-20°C to +60°C
Sheath Material	PVC (low-smoke halogen-free optional)
Compliance	ISO9001, IEC 60794-1-21, TIA/EIA-598-B

Applications

Indoor cable distribution Used in data centers, office buildings, shopping malls, and residential communities for horizontal and vertical wiring, ensuring efficient signal transmission within the network.
Interconnect between instruments and communication equipment Serves as patch cords or jumper cables for connecting servers, switches, routers, and other communication devices, providing stable and high-speed data transmission.
Industrial and special scenarios Applied in power systems, rail transit, and highway engineering for front-end connection needs, adapting to harsh industrial environments with reliable performance.

Advantages

High reliability The optimized structure and high-quality materials ensure stable signal transmission and long service life, meeting the strict requirements of various projects.
Cost-effective High integration reduces the number of cables and installation time, lowering overall project costs. Customizable specifications allow tailored solutions for different applications.
Comprehensive quality control Jiangsu Xuben Photoelectric Technology Co., Ltd. strictly follows ISO9001 quality management standards. Each Indoor Ribbon Fiber Optic Cable undergoes rigorous testing to ensure consistent performance and reliability.

Characteristics

High-integrated fibre ribbon design

Aramid reinforcement element gives the cable excellent tensile strength

The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.

Applications

Indoor cable distribution

Interconnect between instruments, communication equipments

Standards

Comply with Standard YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, etc.

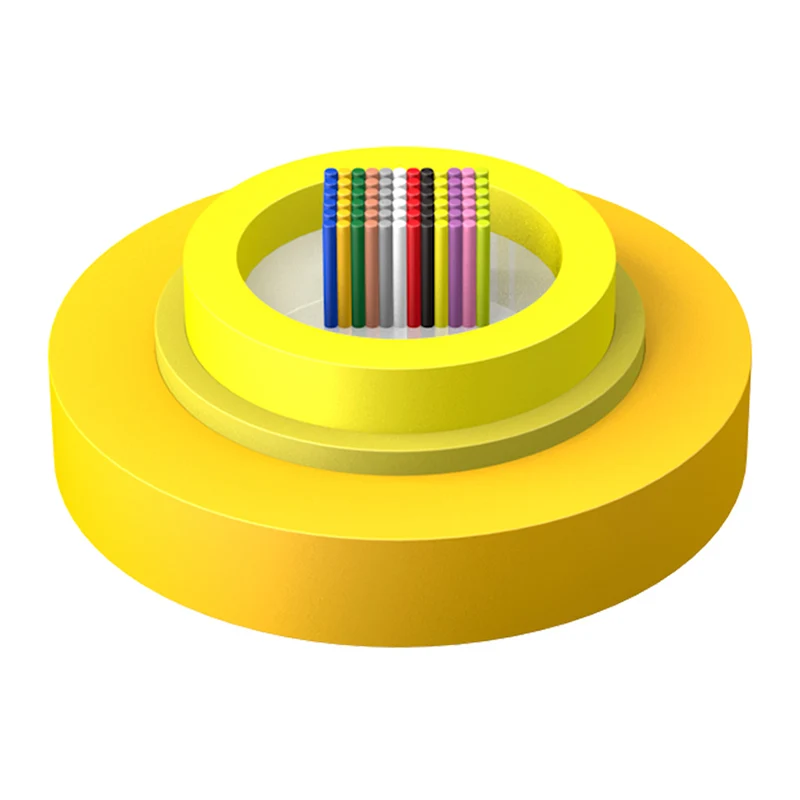

Structure Drawing

1. Fibre Ribbon

2. Loose Tube

3. Aramid Yarn

4. Out Jacket

Indoor Ribbon Fiber Optic Cable

Technical Parameters

Cable Model	Fibre Count	Cable Weight (Ref) (kg/km)	Tensile Strength Long/Short Term	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Dynamic/Static (mm)
GJFDV-48	12F×4	84	200/660	300/1000	25D/12.5D
GJFDV-72	12F×6	90	200/660	300/1000	25D/12.5D
GJFDV-96	12F×8	100	200/660	300/1000	25D/12.5D
GJFDV-144	12F×12	125	200/660	300/1000	25D/12.5D

Optical Characteristics

Fiber Type	Attenuation				OFL	Effective Mode Bandwidth	10 Gbit/s Ethernet Link Length	Minimum Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical Value	Maximum Value	Typical Value	Maximum Value	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
